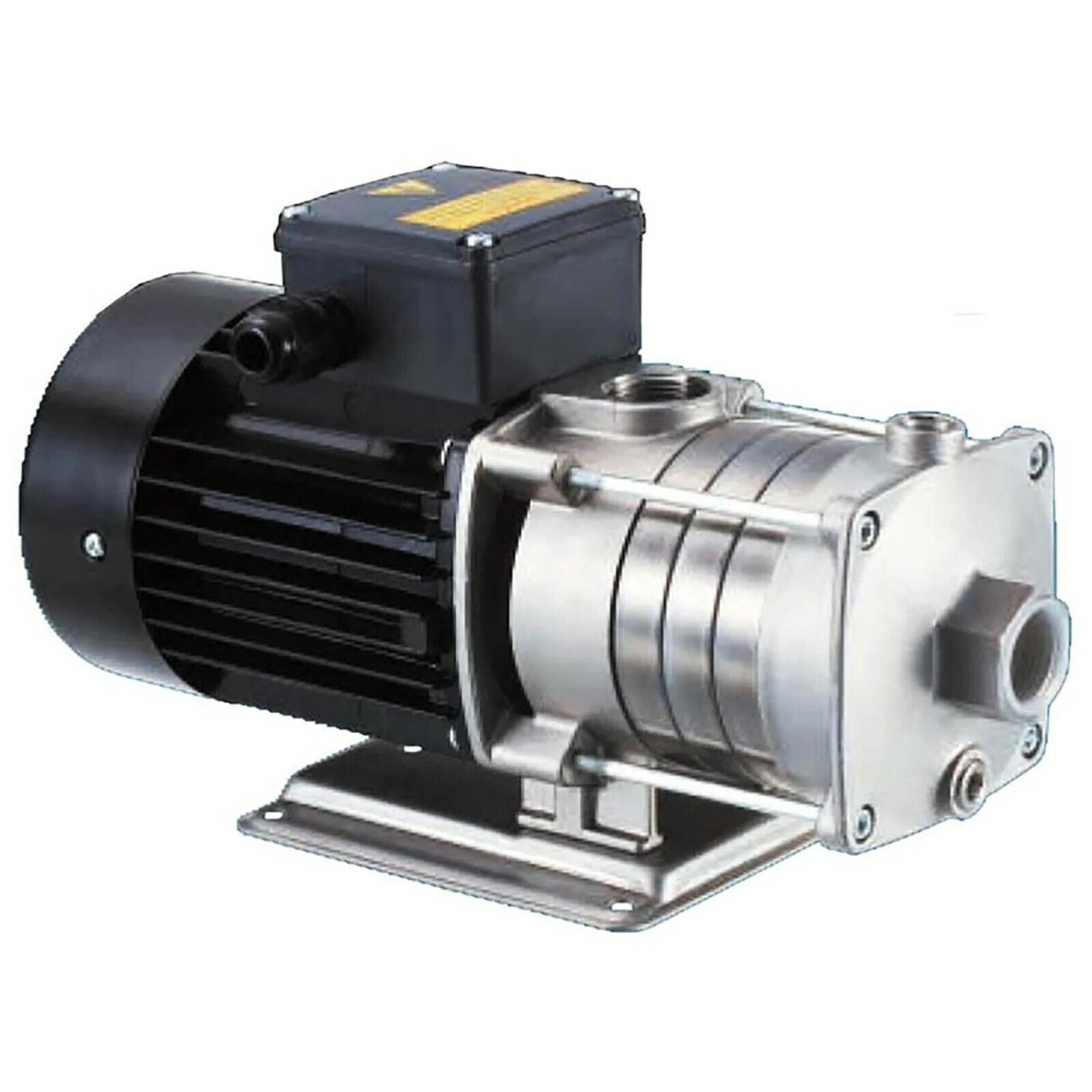

1-1/4" Port Centrifugal WATER PUMP - 2400 GPH - 110/220 V - 2 Stage - Horizontal
1-1/4" Port Centrifugal WATER PUMP - 2400 GPH - 110/220 V - 2 Stage - Horizontal
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT1063
Condition: New
Description: 1-1/4" Port Centrifugal WATER PUMP - 2400 GPH - 110/220V - Multistage Horizontal
Description & Specification:
Non-self priming
Mechanical shaft seal fitting
Designed for transferring and pressure boosting applications
Totally enclosed motor
Thermal overload protection
All parts that come in contact with water are constructed of stainless steel
Cools systems and machines
This unit is also available in 220/460 Volts - 3 Phase - Please inquire
Port Size (in): 1.25"
GPH: 2,400
Voltage: 110/220
Watts: 950
PSI: 40
Amps: 9.5/4.7
Liquid temperature range: 32°F ~+194°F
Maximum ambient temperature: +104°F
Stainless Steel Components: Suction chamber, pump head, intermediate chamber, impeller, spacing pipe, shaft, drain/priming plug, and base plate
Maximum Head Pressure (ft): 40
Vertical Lift (ft): 19

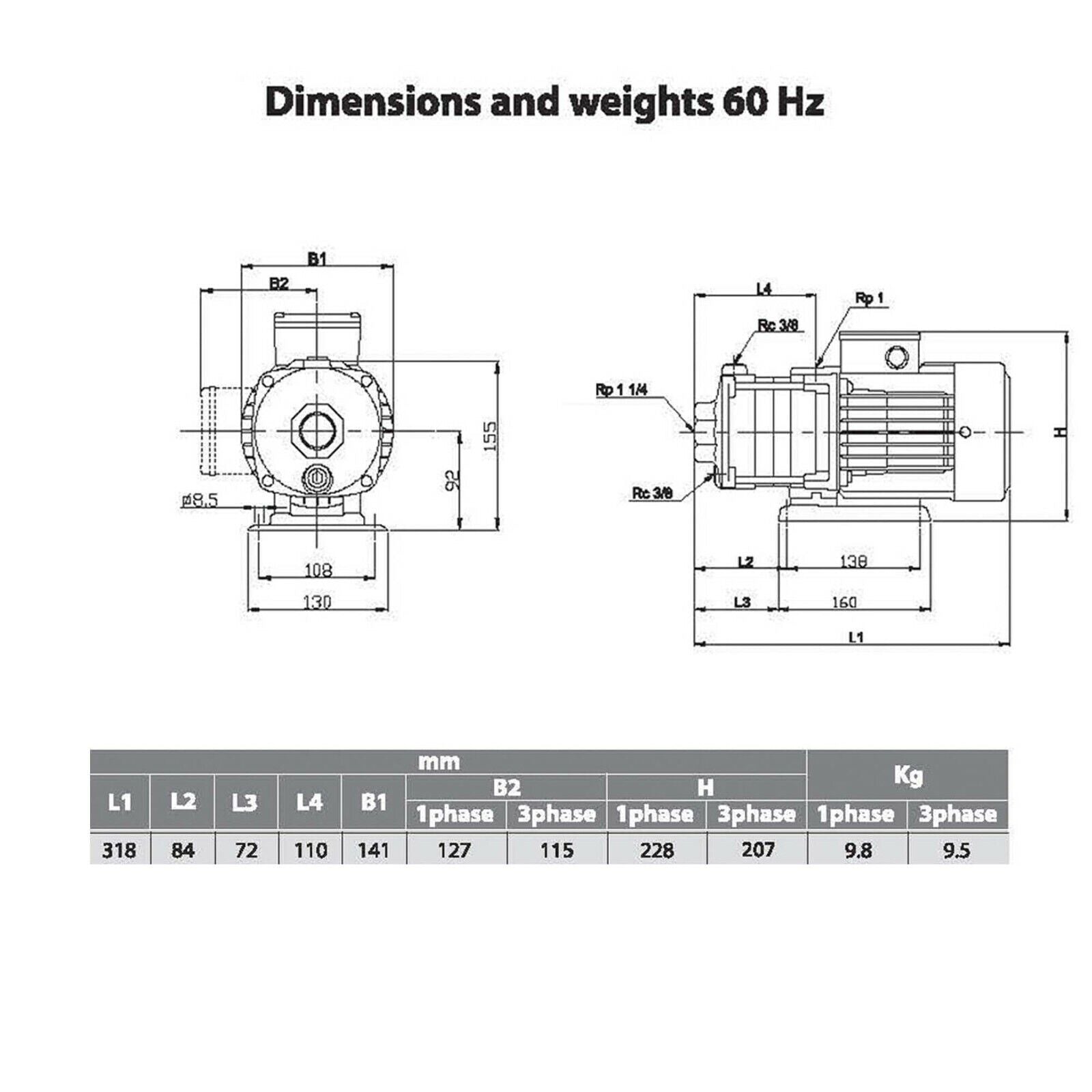

Dimensions (L x W x H): 13" x 6" x 9"
Weight (lbs): 35
