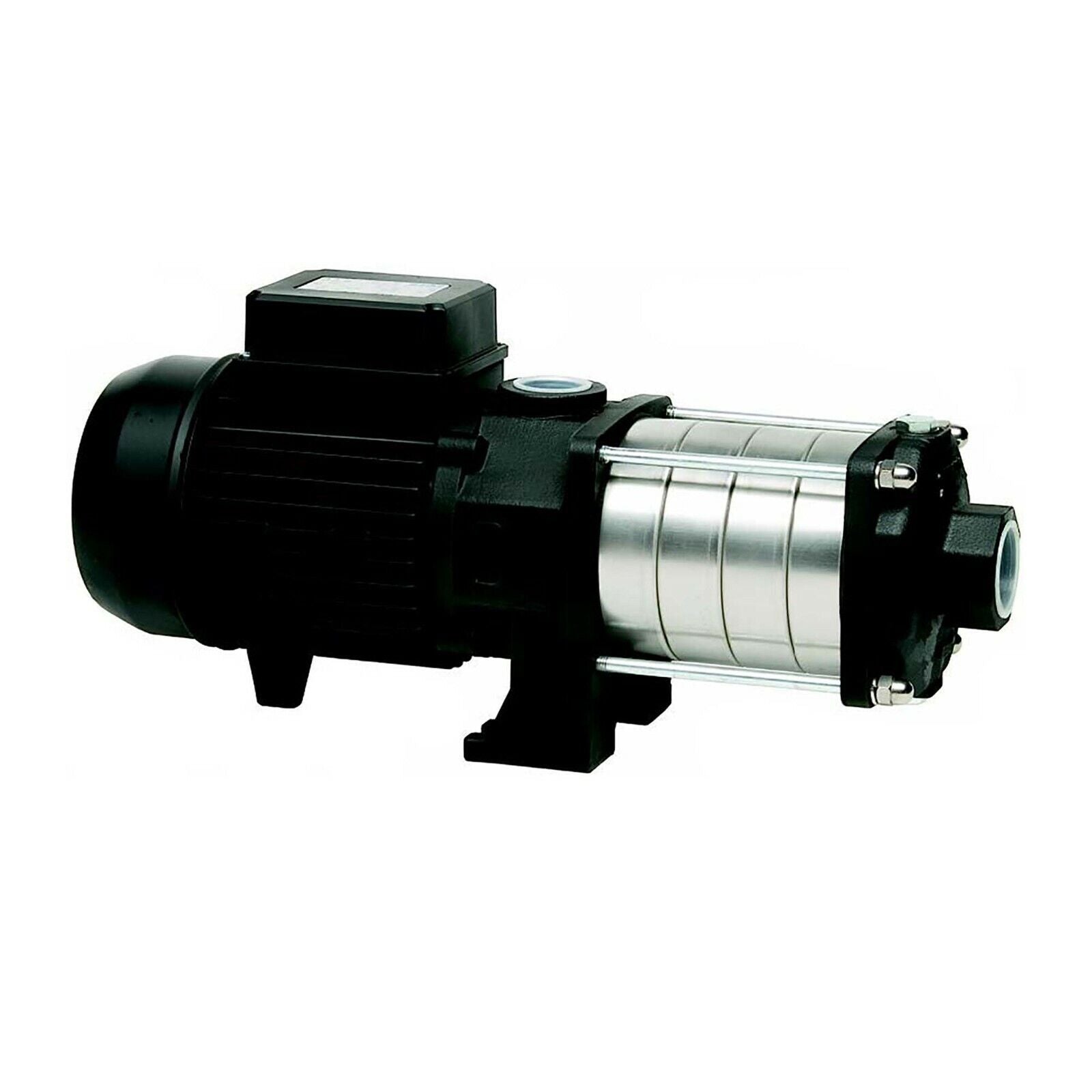

1.5" Port WATER PUMP - 4230 GPH - 230 Volt - 1Ph - 2 Stage - 1.5 HP - Horizontal
1.5" Port WATER PUMP - 4230 GPH - 230 Volt - 1Ph - 2 Stage - 1.5 HP - Horizontal
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT1069
Condition: New
Description: 1.5" Port WATER PUMP - 4230 GPH - 230 Volts - 1 Phase - 2 Stage - 1.5 HP - Horizontal
Description & Specification:
Alumina Oxide / Graphite mechanical seal
Stainless Steel / Carbon Steel impeller
Corrosion resistant stainless steel rotor shaft
Cast Iron housing
Designed for for pumping clean water and non-corrosive liquids
NOT capable of handling solids
Port Size (in): 1.5"
Maximum GPH: 4,230
Voltage: 230
Phase: Single
PSI: 46.5
Watts: 1,100
Amps: 9
Vertical Lift (ft): 17
Maximum Head Pressure (ft): 105
Temperature Range: 32°F - 194°F
Dimensions (L x W x H): 17.5" x 6.5" x 8.5"
Weight (lbs): 51
