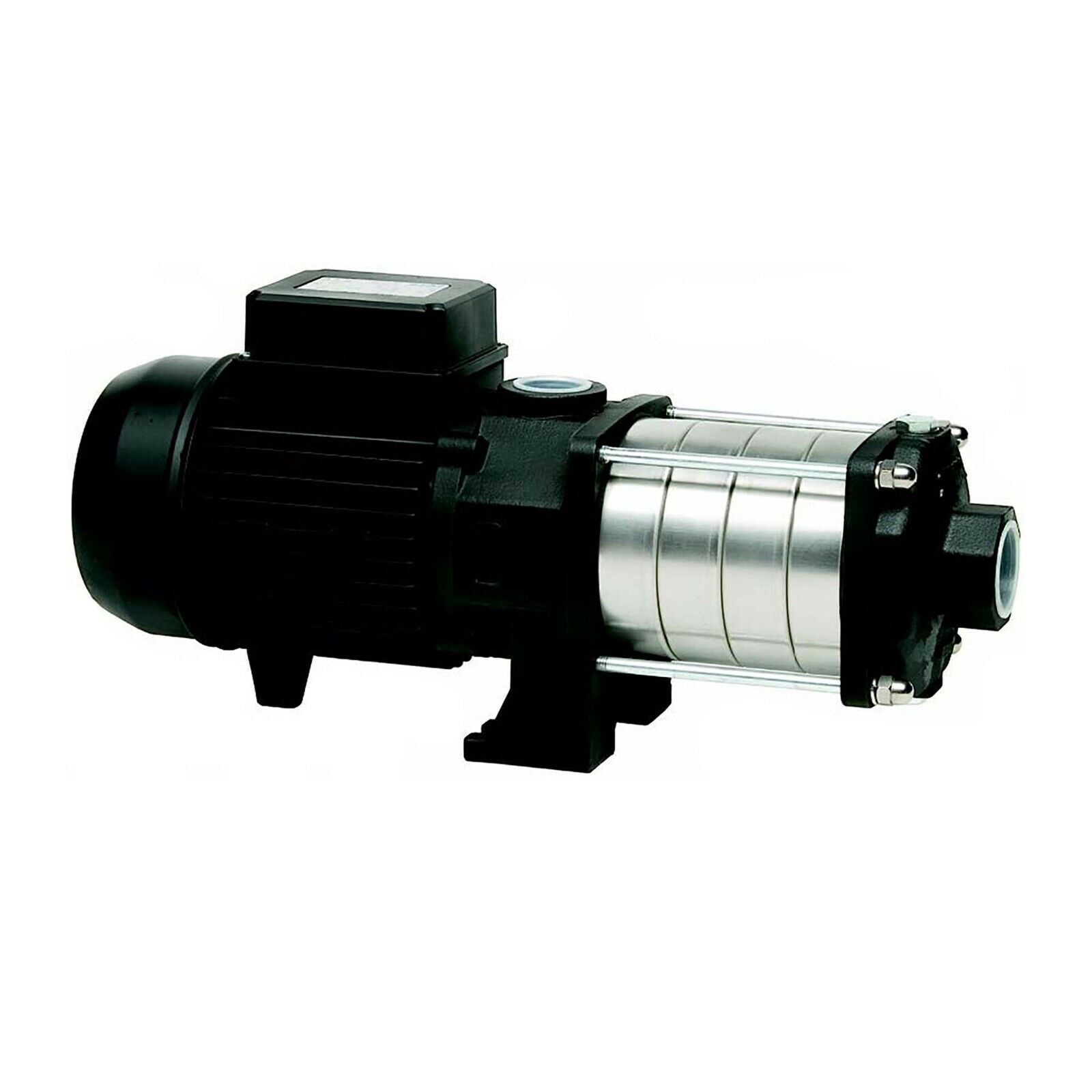

1.5" Port WATER PUMP - 4230 GPH - 3 HP - 230 V - 3 Phase - 2 Stage - Horizontal
1.5" Port WATER PUMP - 4230 GPH - 3 HP - 230 V - 3 Phase - 2 Stage - Horizontal
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT1077
Condition: New
Description: 1.5" Port WATER PUMP - 4230 GPH - 3 HP - 230 Volts - 3 Phase - 2 Stage - Horizontal
Description & Specification:
Alumina Oxide / Graphite mechanical seal
Stainless Steel / Carbon Steel impeller
Corrosion resistant stainless steel rotor shaft
Cast Iron housing
Designed for for pumping clean water and non-corrosive liquids
NOT capable of handling solids
Port Size (in): 1.5"
Maximum GPH: 4,230
Voltage: 230 (208/230/240)
Phase: 3
PSI: 93
Watts: 2,200
kW: 2.2
Amps: 11
Vertical Lift (ft): 17
Maximum Head Pressure (ft): 210
Temperature Range: 32°F - 194°F
Dimensions (L x W x H): 21.5" x 8.5" x 10"
Weight (lbs): 55
