Pacific Tundra

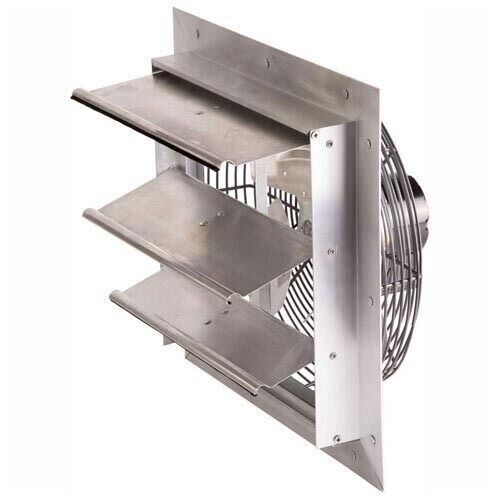

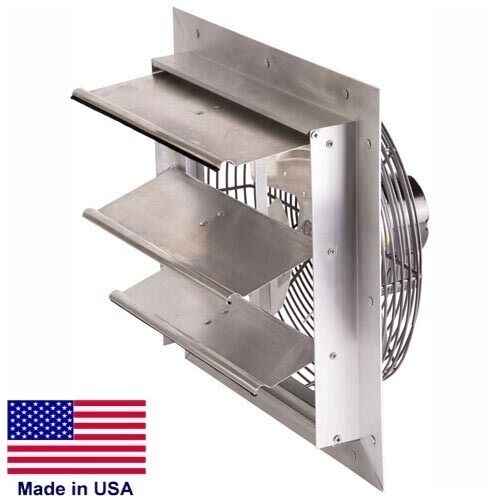

10" Exhaust Fan - Shutter Mount - 115 Volt - 1/25 HP - 585 CFM - Aluminum - 1 PH

10" Exhaust Fan - Shutter Mount - 115 Volt - 1/25 HP - 585 CFM - Aluminum - 1 PH

Regular price $863.44
Regular price Sale price $863.44
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number: PTWGB2175211

Condition: New

Description: 10" Exhaust Fan - Shutter Mount - 115 Volts - 1/25 HP - 585 CFM - Aluminum - 1 Phase

Features: Fan: 10" Exhaust Fan - Shutter Mounted - Vertical Mount - Easy to install - User friendly - Aluminum leakage performance shutter - 115 Volts - 1/25 HP - 585 CFM - 60 hz - Aluminum and Steel Construction - 1 Phase - Direct Drive - Thermally Protected UL and C-UL Listed - Thermally protected motor - OSHA compliant - Made in the USA



THIS LINE OF COMMERCIAL EXHAUST FANS IS AVAILABLE IN FOLLOWING CONFIGURATIONS:

Sizes range between 7" to 20"

Motors from 1/25 to 1/4 Hp

Single Phase Only

CFM Ranges from 140 to 2,830



Description & Specification:

AMPS: 1.5

APPROVAL: UL & C-UL Listed

ASSEMBLED: Yes

CFM HIGH: 585

CFM LOW: 285

COLOR FINISH: Silver

CONSTRUCTION: Aluminum/Steel

FAN DIAMETER (inches): 10"

DEPTH (inches): 11-3/4"

WIDTH (inches): 13-1/8"

HEIGHT (inches): 13-1/8"

ROUGH OPENING (inches): 10-1/2" x 10-1/2"

DRIVE TYPE: Direct Drive

HERTZ (HZ): 60

HORSEPOWER: 1/25

MOUNT TYPE: Vertical

PHASE: 1

RPM HIGH: 1,550

SPEEDS: Variable

VOLTAGE: 115

WEIGHT LBS: 10

WARRANTY: 1 Years

MADE IN THE USA
