Pacific Tundra

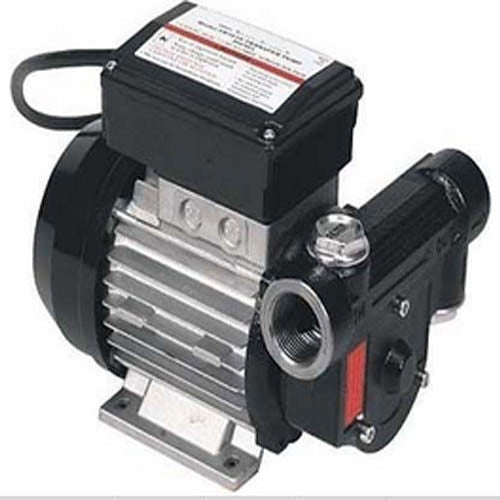

115 Volt AC - 18 GPM - 1/3 HP - 6.5 Amps - 2,800 RPM - Diesel Fuel Transfer Pump
115 Volt AC - 18 GPM - 1/3 HP - 6.5 Amps - 2,800 RPM - Diesel Fuel Transfer Pump
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT1096005
Condition: New
Description: 115 Volt AC - 18 GPM - 1/3 HP - 6.5 Amps - 2,800 RPM - Diesel Fuel Transfer Pump
Features: This diesel fuel transfer pump is a light-duty, rotary vane, self-priming transfer pump that delivers diesel fuel, light oils and antifreeze fluids. Not to be used for dispensing gasoline, alcohol, or waste vegetable oil to be used for biodiesel fuel.
Description & Specification:
Includes: (1) Fuel transfer pump - (1) Power cable
Horsepower: 1/3
Voltage: 115
Watts: 10
Amps: 6.5
Speed (RPM): 2,800
Flow (GPM): 18
Max. Total Head (ft.): 30
Max. Suction Lift (ft.): 6 1/2
Inlet Port (in.): 1
Outlet Port (in.): 1
Discharge (ft.): 30
Duty Cycle: 30 minute
Self-Priming: Yes
Bypass Valve: Yes
Seal Type: Lip
Nozzle Type: 1” Plastic with barb
Hose (inches x ft.): 1 x 8
Dimensions L x W x H (inches): 9 x 6 1/2 x 7 1/2
Warranty: NTE 1 years RA/Exchange Policy
Ship Weight: 19.0 lbs
