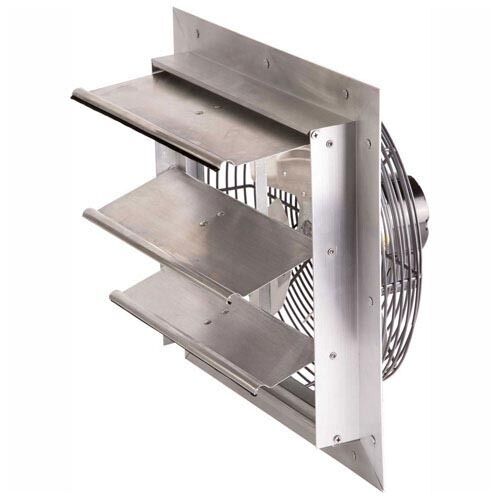

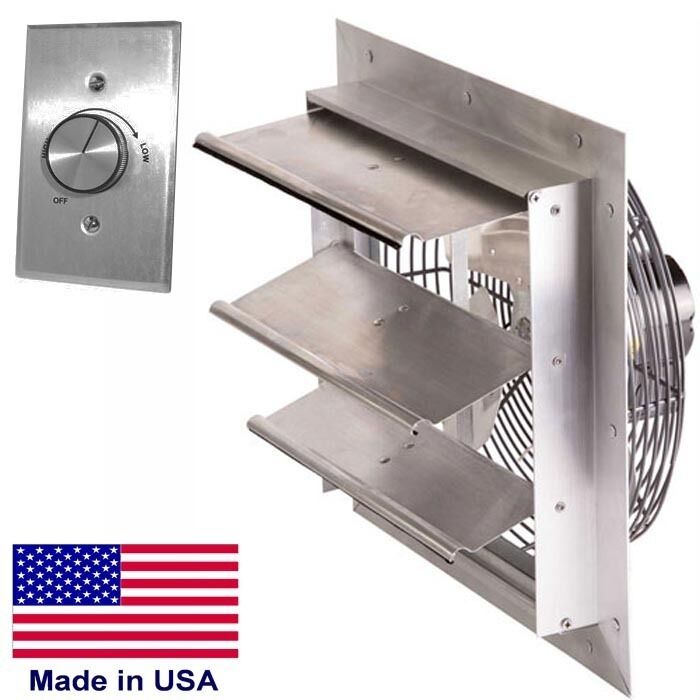

12" Exhaust Fan - Shutter Mount - 115V - 1/25 HP - 800 CFM - Alum - 1ph - Remote

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PTWGB2175209-R

Condition: New

Description: 12" Exhaust Fan - Shutter Mount - 115V - 1/25 HP - 800 CFM - Aluminum - 1 PH - Remote

Features: Fan: 12" Exhaust Fan - Shutter Mounted - Vertical Mount - Easy to install - User friendly - Aluminum leakage performance shutter - 115 Volts - 1/25 HP - 800 CFM - 60 hz - Aluminum and Steel Construction - 1 Phase - Direct Drive - Thermally Protected UL and C-UL Listed - Thermally protected motor - OSHA compliant - Made in the USA

Controller: Controller is designed to mount in a 2" x 4" electrical wall box - 115 Volts - 50/60Hz - Maximum 5 amp rating - Contains an On/Off line switch

THIS LINE OF COMMERCIAL EXHAUST FANS IS AVAILABLE IN FOLLOWING CONFIGURATIONS:

Sizes range between 7" to 20"

Motors from 1/25 to 1/4 Hp

Single Phase Only

CFM Ranges from 140 to 2,830

Description & Specification:

AMPS: 1.5

APPROVAL: UL & C-UL Listed

ASSEMBLED: Yes

CFM HIGH: 800

CFM LOW: 470

COLOR FINISH: Silver

CONSTRUCTION: Aluminum/Steel

FAN DIAMETER (inches): 12"

DEPTH (inches): 12-1/8"

WIDTH (inches): 15-1/8"

HEIGHT (inches): 15-1/8"

ROUGH OPENING (inches): 13" x 13"

DRIVE TYPE: Direct Drive

HERTZ (HZ): 60

HORSEPOWER: 1/25

MOUNT TYPE: Vertical

PHASE: 1

RPM HIGH: 1,550

SPEEDS: Variable

VOLTAGE: 115

WEIGHT LBS: 12

WARRANTY: 1 Years

MADE IN THE USA

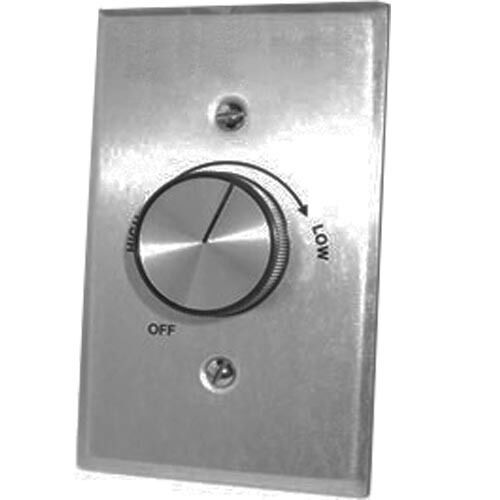

Controller:

AMPS: 5

AMPS RANGE: 4 And Up

APPROVAL: UL / CSA

COLOR: Silver

CONSTRUCTION: Plastic / Aluminium

HEIGHT (inches): 5"

HEIGHT RANGE: 1-12"

LENGTH (inches): 3"

LENGTH RANGE: 1-12"

WIDTH (inches): 3"

WIDTH RANGE: 1-12"

VOLTAGE: 120

VOLTAGE RANGE: 115 - 120

OPERATING TEMPERATURE: Up To 40°C (104°F)

SWITCH TYPE: Rotary Switch

WEIGHT LBS: 1

WARRANTY: 1 Year

HERTZ (hZ): 50 / 60
