Pacific Tundra
12" Panel Exhaust Fan - 1 Speed - 1650 CFM - 208 / 230 / 460 V - 3 Ph - 1/3 HP
12" Panel Exhaust Fan - 1 Speed - 1650 CFM - 208 / 230 / 460 V - 3 Ph - 1/3 HP
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT1023
Condition: New
Description: 12" Panel Exhaust Fan - 1 Speed - 1650 CFM - 208 / 230 / 460 Volts - 3 Phase - 1/3 HP
This series of fan is available in various size, voltage, and phases.
Please inquire for assistance
Description & Specification:
Blade Diameter (in): 12"
CFM: 1,650
Volts: 208/230/460
Phase: 3
Drive: Direct
Amps: 5.0 / 2.5
HP: 1/3
RPM: 1,700
Speed: 1
Hertz: 60
Blades: 3

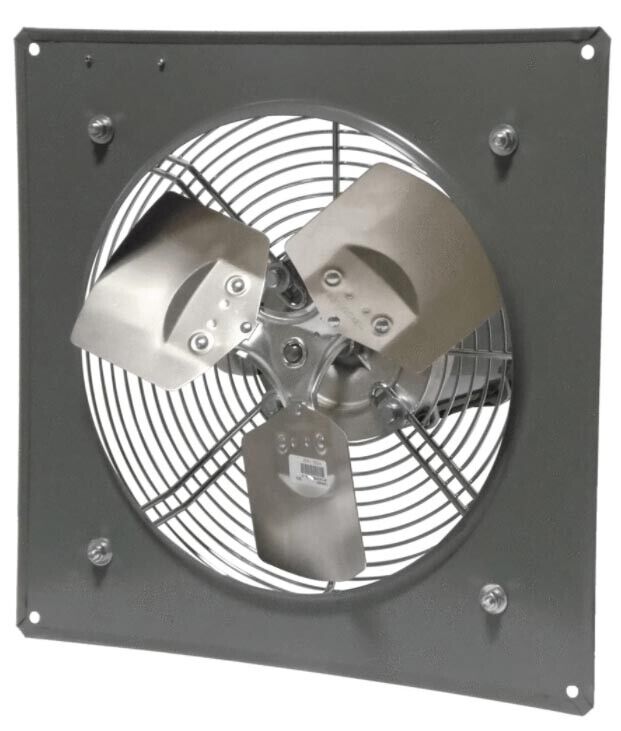

Please Note: Blades shown in the photos are a stock photo - Blade quantity will vary
Optional: Variable Speed Controller - NOT INCLUDED - Please Inquire
Optional: Moisture Proof Thermostat - NOT INCLUDED - Please Inquire
Optional: Outdoor Shutter - NOT INCLUDED - Please Inquire
Please Allow 2 weeks for manufacturing
Please allow an additional 2 weeks for summer seasonal demand
Dimensions (W x D x H): 17-1/4" x 11" x 17-1/4"
Weight (lbs): 30
