Pacific Tundra

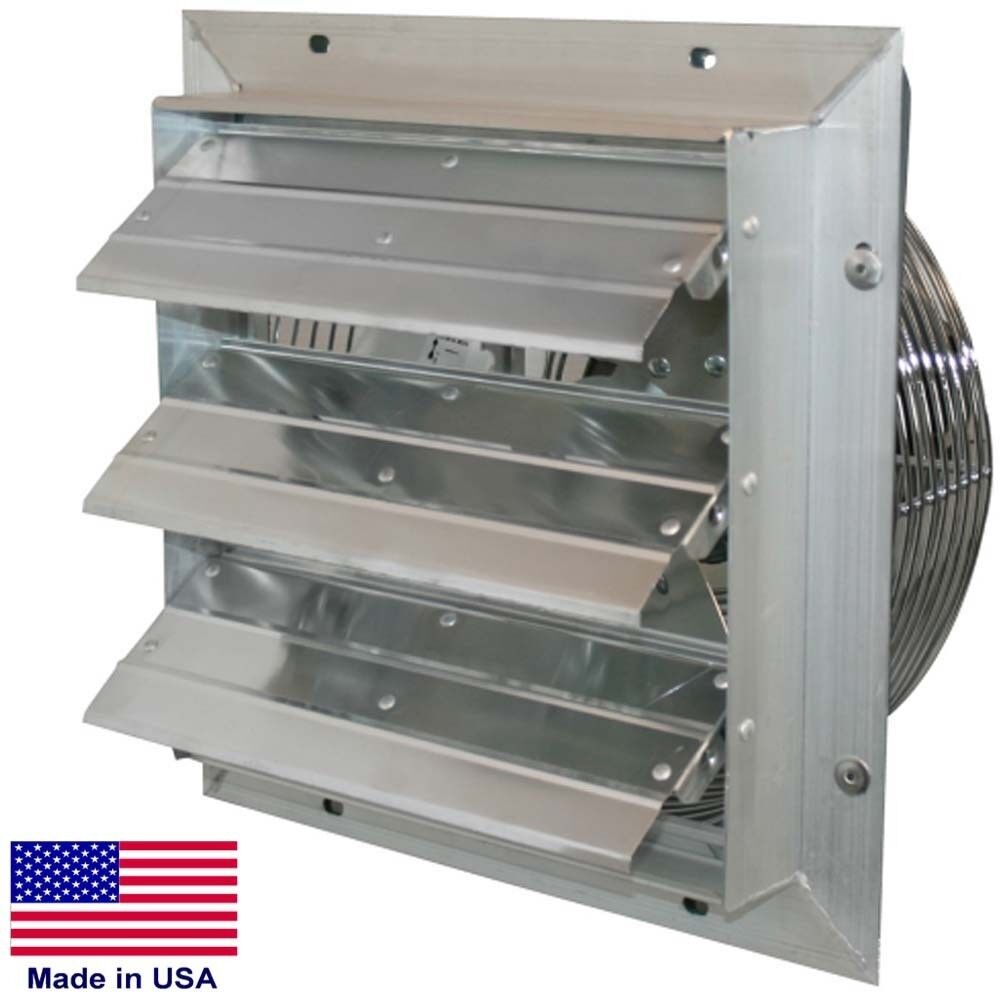

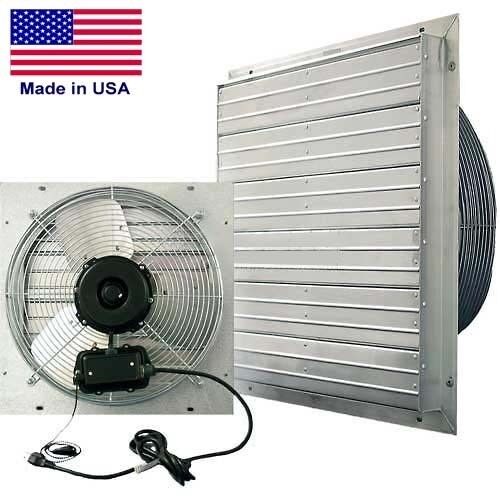

12" Shutter Exhaust Fan - 1,100 CFM - 115 V - 1/30 HP - 1 Ph - 3 Speed - Direct
12" Shutter Exhaust Fan - 1,100 CFM - 115 V - 1/30 HP - 1 Ph - 3 Speed - Direct
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PTWBB968396
Condition: New
Description: 12" Shutter Exhaust Fan - 1,100 CFM - 115V - 1/30 HP - 1 Ph - 3 Speed - Direct
Features: Pre-wired - Arrives assembled - Perfect for greenhouses, warehouses, etc - 9ft power cord - 115 Volts - Aluminum Shutters - Wall Mounted - Aluminum shutter includes tie bar to reduce flapping in the wind - Made in the USA
This Series of Wall Mounted Exhaust Fans Fans are Available in the Following Configurations:
Voltages: 115/230V 1 Phase, 115/230V 3 Phase, and 230/460V 3 Phase.
Flow Ranges: 630 CFM to 6,800 CFM
Description & Specification:
- FINISH: Chrome / Aluminum
- CONSTRUCTION MATERIAL: Steel & Aluminum
- CFM HIGH: 1,100
- RPM: 1,500
- DRIVE TYPE: Direct Drive
- FAN BLADE DIAMETER (in): 12
- POWER CORD: Yes
- MOUNT TYPE: Wall Mount
- BLADES: 3
- POWER CORD LENGTH (ft): 9
- VOLTAGE: 115
- PHASE: 1
- HORSEPOWER (HP): 1/30
- KILOWATTS: 0.126
- HERTZ (HZ): 60
- SPEEDS: 3
- WATTS: 126.5
- AMPS: 1.1
- ROUGH OPENING DIMENSIONS (in): 12-1/2" X 12-1/2"
- DEPTH (in): 11
- WIDTH (in): 15
- HEIGHT (in): 15
- WEIGHT LBS: 18
