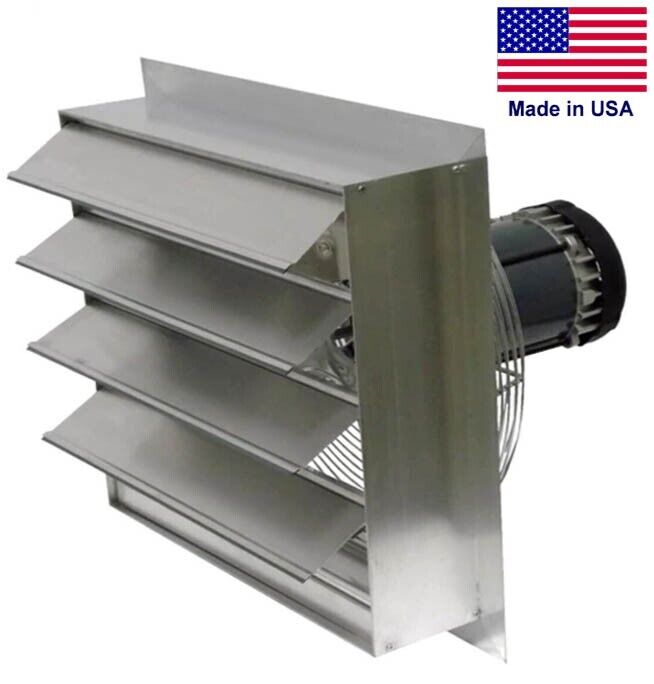

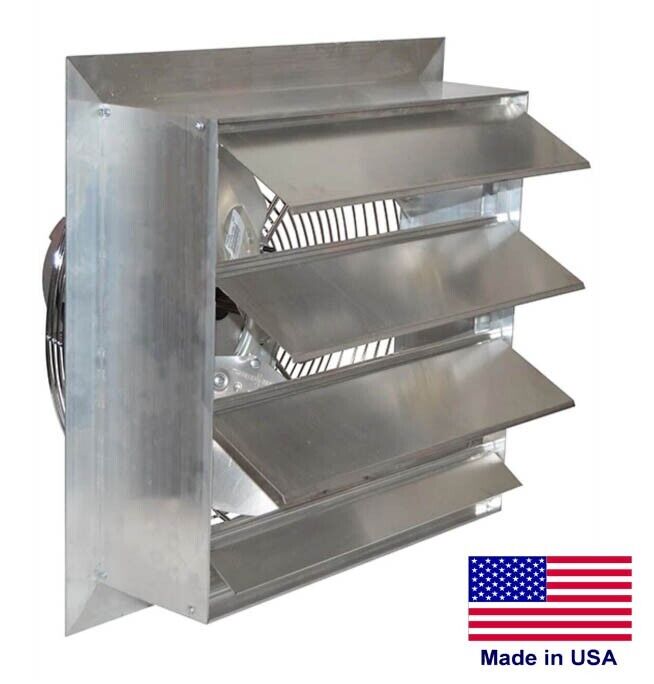

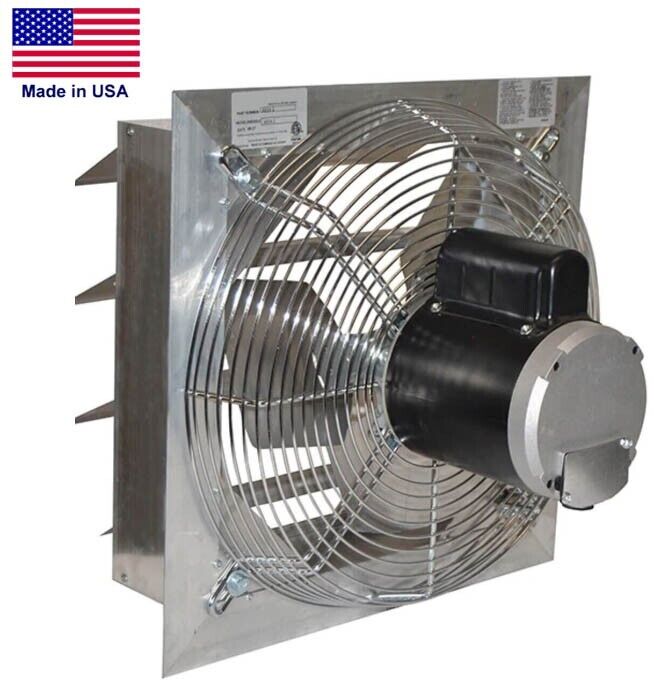

12" Shutter Exhaust Fan - 1640 CFM - 1/4 HP - 115 Volts - 1 Phase - 3 Blades

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PT201A

Condition: New

Description: 12" Shutter Exhaust Fan - 1640 CFM - 1/4 HP - 115 Volts - 1 Phase - 3 Blades

Description & Specification:

Blade Size (in): 12"

CFM: 1640

Volts: 115

Phase: Single

HP: 1/4

RPM: 1625

Drive: Direct

Blade Material: Aluminum

Blades (QTY): 3

Motor Type: Totally Enclosed

Decibels (dBA): 63 @ 5'

Optional: Single Speed Thermostat (Please Inquire - NOT INCLUDED)

Optional: Plastic Weather Hood (Please Inquire - NOT INCLUDED)

Optional: Galvanized Weather Hood (Please Inquire - NOT INCLUDED)

Dimensions (W x D x H): 16.75" x 16" x 16/.75"

Frame Dimensions (L x H): 14" x 14"

Weight (lbs): 30
