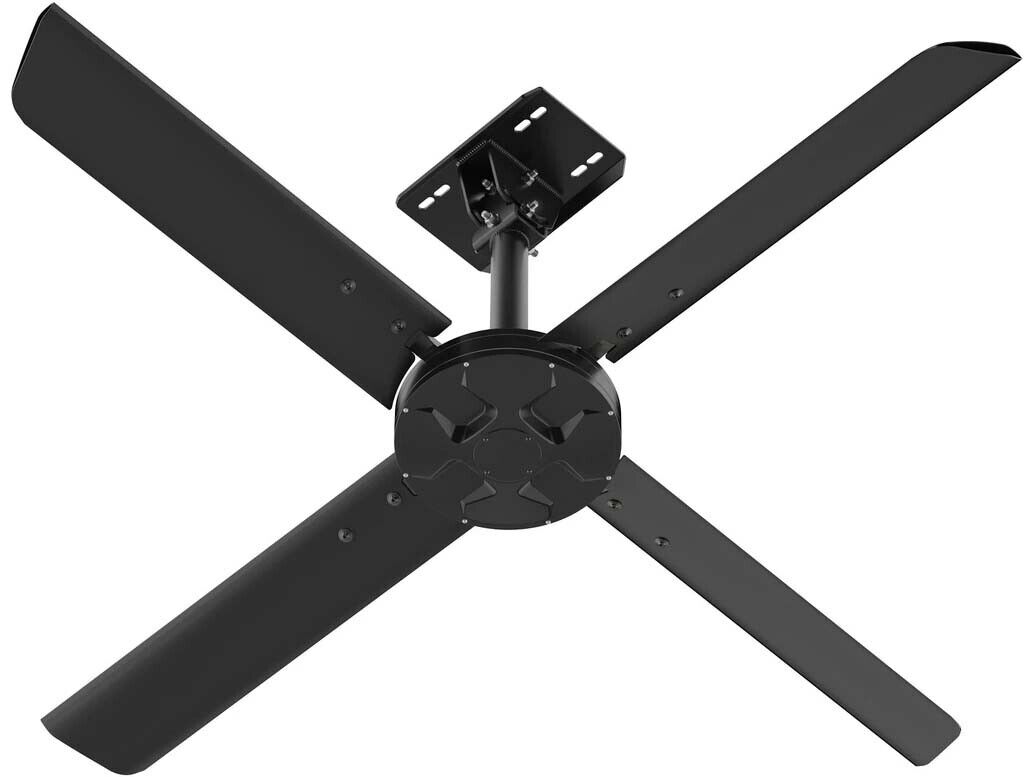

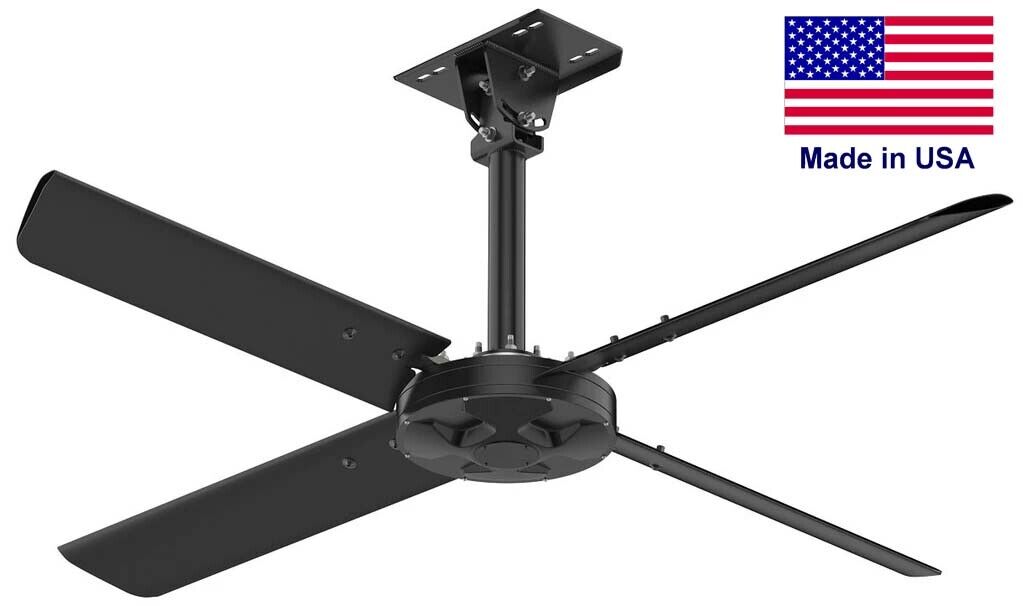

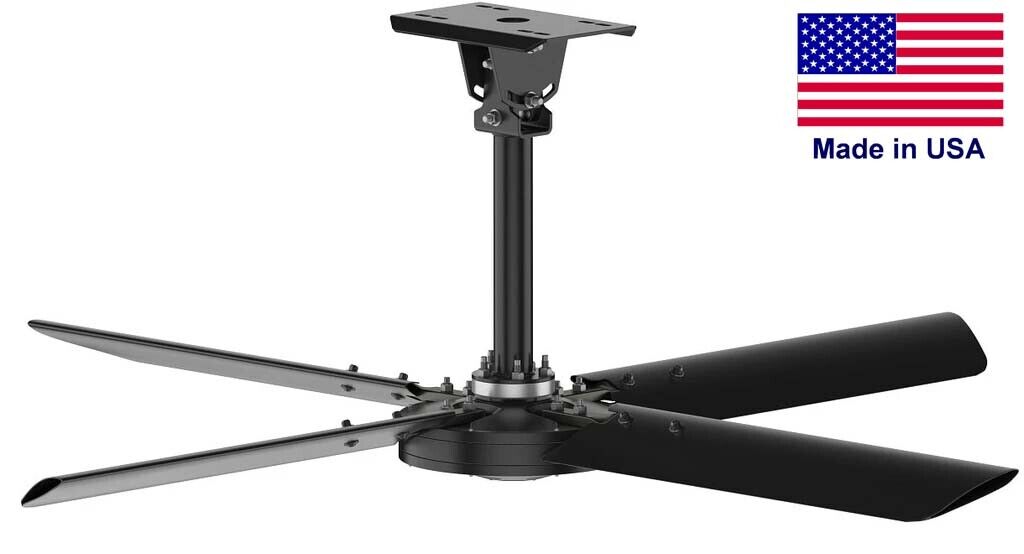

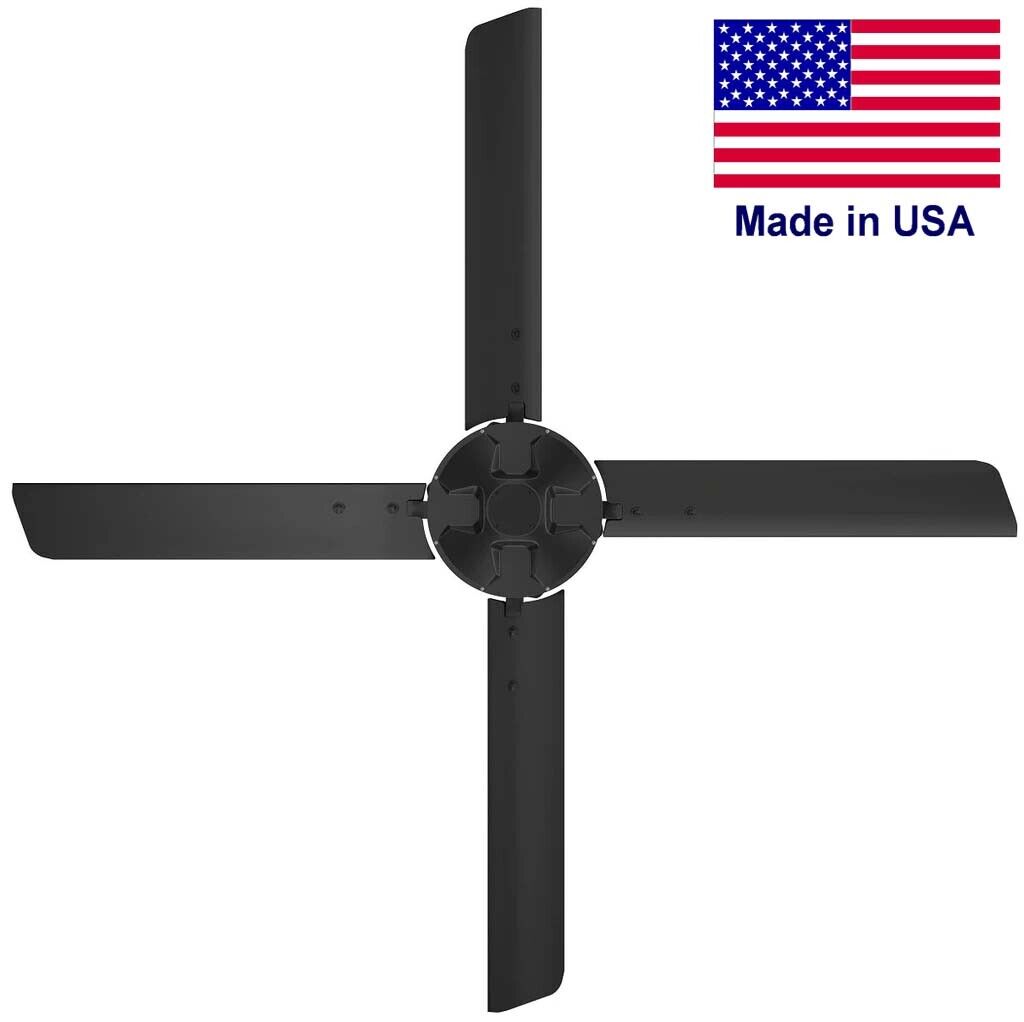

14 ft Ceiling Fan - HVLS - 4,900 Sqft - 120 Volts - 1 Ph - 5/8 HP - Direct Drive

Model Number: PT811

Condition: New

THIS LINE OF FANS IS AVAILABLE WITH THE FOLLOWING CONFIGURATIONS:

Sizes Range: 72" to 288"

Voltages: 115/230V, 1 Phase, & 230/460V, 3 Phase

CFM Ranges from 13,001 to 75,000

We manufacture and offer a wide range of exhaust fans and configurations - please inquire

Description & Specification:

Direct drive allows for an application that removes the need for awkward gearboxes

Variable Speed adjusts airflow to the users preferred setting

Pre-assembled for an easy installation

Included: 2 ft Rigid Mount with Pre-wired Downrod, Control Panel, Installation Manual, Airfoils, Wall Control, Mounting Hardware Kit, and Communication Kit

Diameter (in): 168" (14 ft)

Sq Ft Coverage: 4,900 (70 ft)

Volts: 120

Phase: Single

Drive: Direct

HP: 5/8

Amps: 6.2

RPM: 108

Hertz: 60

Blades (QTY): 4

Please Note: This item is built to order - Please allow 5 to 10 business days to manufacture and ship

Optional: 3 ft and 4 ft Rigid Mount Downrod - Please Inquire

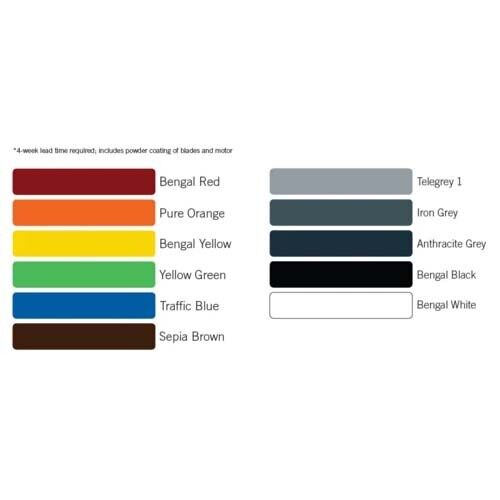

Optional: Additional colors are available - Please reference the photos for colors - Please Inquire

Optional: Additional Control Cable Lengths - Please Inquire

Optional: Glulam Brackets - Please Inquire

Dimensions: 168" x 168" x 24"

Weight (lbs): 131

Made in the USA

Warranty: 2 Years
