PT Industrial

14" Loading Dock FAN & Light - 2,600 CFM - 115 Volt - 1,800 sq ft - 60 ft Throw

14" Loading Dock FAN & Light - 2,600 CFM - 115 Volt - 1,800 sq ft - 60 ft Throw

Regular price $2,358.76
Regular price Sale price $2,358.76
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number: PTWG292597-1

Condition: New

Description: 14" Loading Dock FAN & Light - 2,600 CFM - 115 Volt - 1 Phase - 1,800 sq ft - 60 ft Throw

Features: Removes heat, gas, odor, dust, dirt, etc in just over 2 minutes - Includes a swing arm, yoke, and wall bracket - TEAO (Totally Enclosed Air Over) Motor - 12ft power cord - Designed to withstand high impact accidents - Perfect for loading docks doors of all sizes.


Description & Specification:

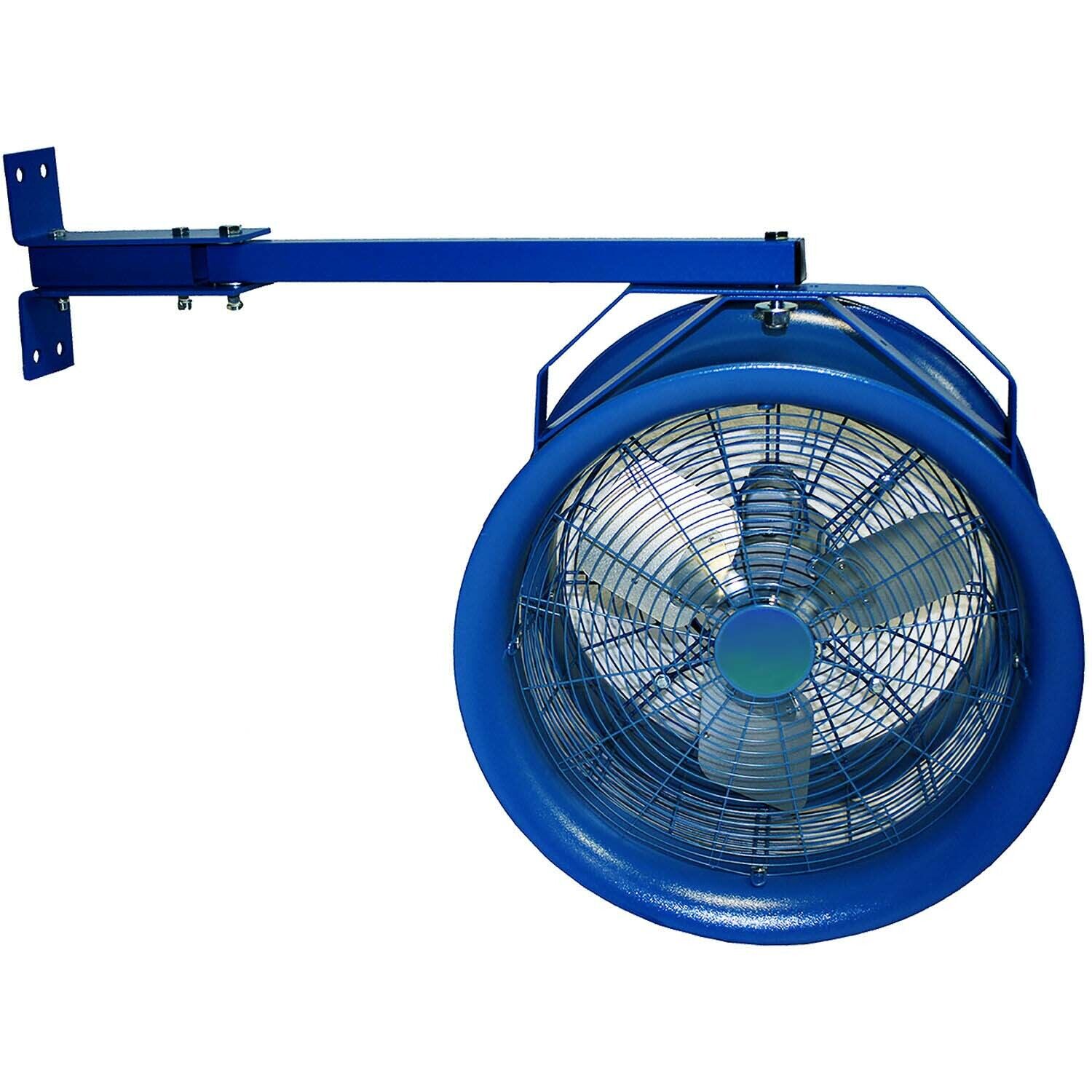

Includes: 1 Fan, Light, Swing Arm, Yoke, and Wall Mount

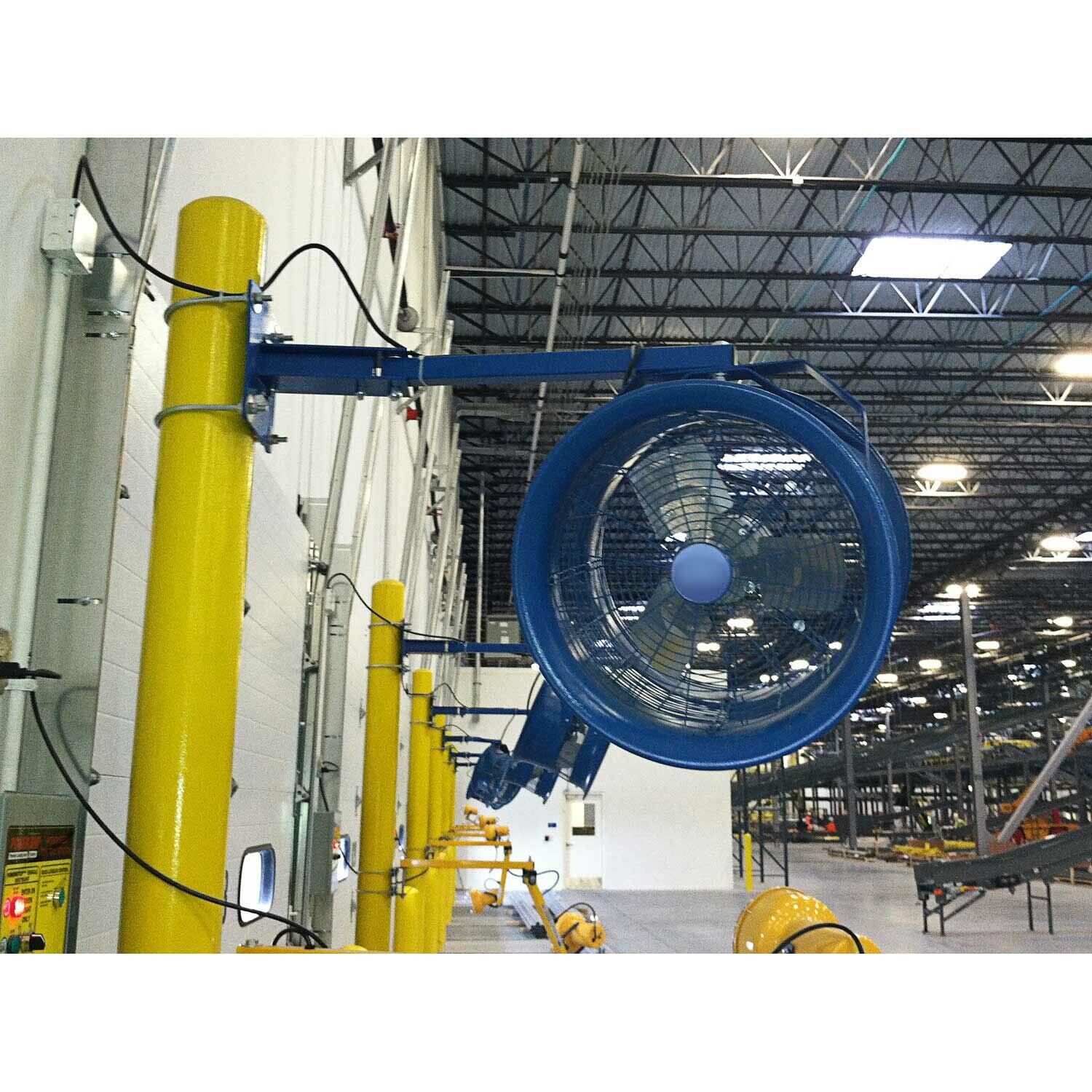

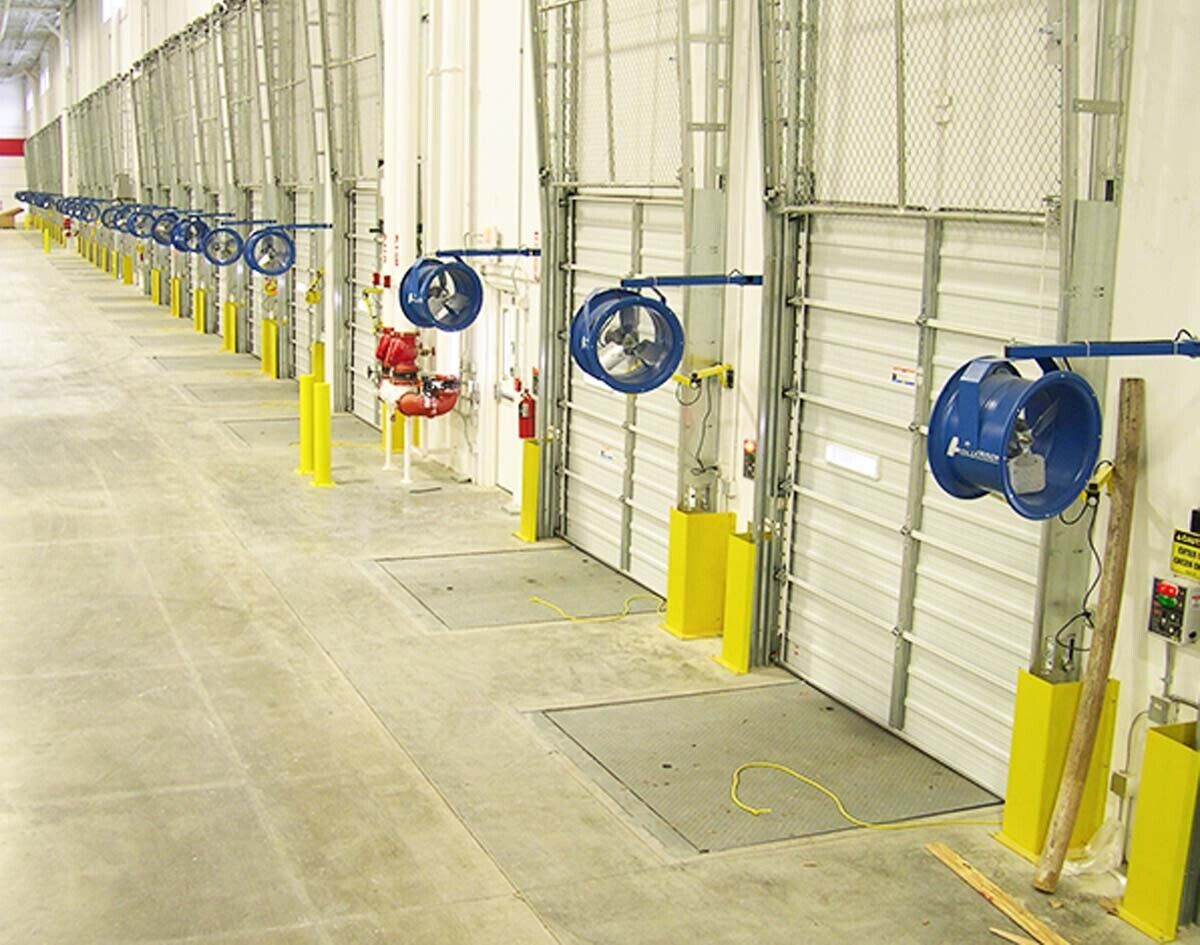

Application: Loading dock doors

CFM: 2,600

Coverage (sq ft): 1,800

Volts: 115

Phase: 1

Horsepower (hp) 1/4

Amps: 2.8

Watts: 83

RPM: 1,725

Air Throw (ft): 60

Hertz (hZ): 60

Speeds: 1

Decibels: 65

Motor Type: Totally Enclosed Air Over (TEAO)

Constructed Material: Polypropylene

Blade Material: Galvanized Aluminum

Blade Quantity: 3

Non-Oscillating: Yes

Wall Mount: Yes

Mount Location: Wall, Column, or Door

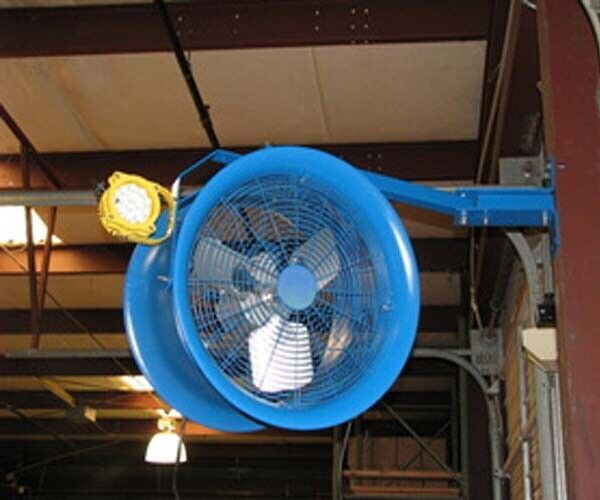

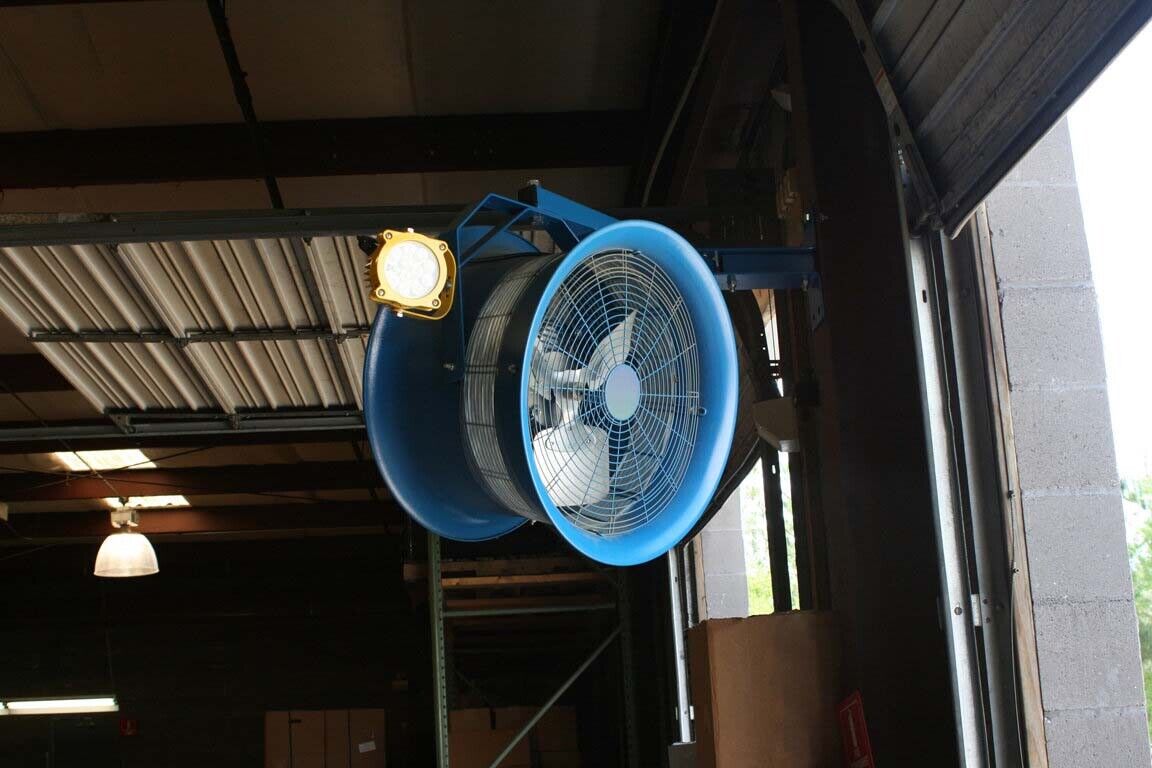

LED Dock Light: Mounts to the side of the fan

LED Light Watts: 15

LED Volts: 100-240, 277 Volts

LED Hertz: 50/60

Dimensions (L x W x H): 20" x 16" x 20"

Weight (lbs): 65
