16" Exhaust Fan - Butterfly Damper - 2310 CFM - 115/230 Volts - 1 Ph - Variable
16" Exhaust Fan - Butterfly Damper - 2310 CFM - 115/230 Volts - 1 Ph - Variable
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT865
Condition: New
Description: 16" Exhaust Fan - Butterfly Damper - 2310 CFM - 115/230 Volts - 1 Ph - Variable
Description & Specification:

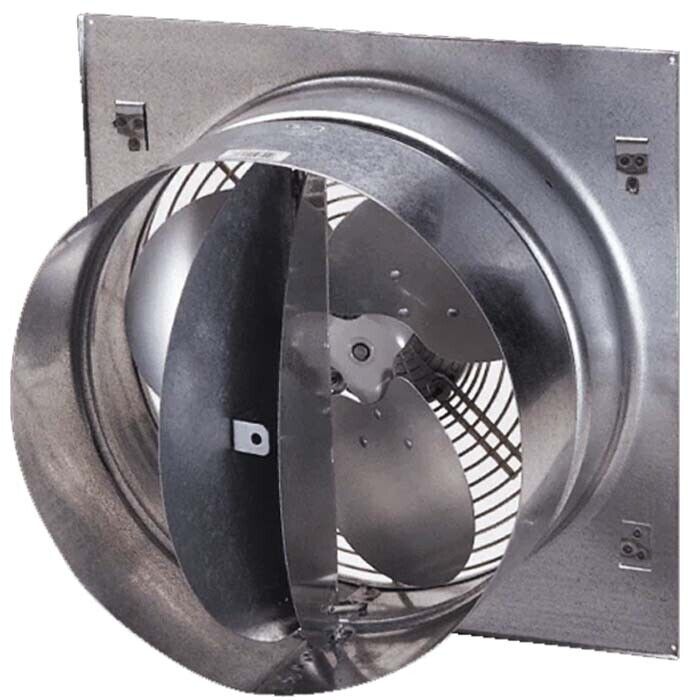

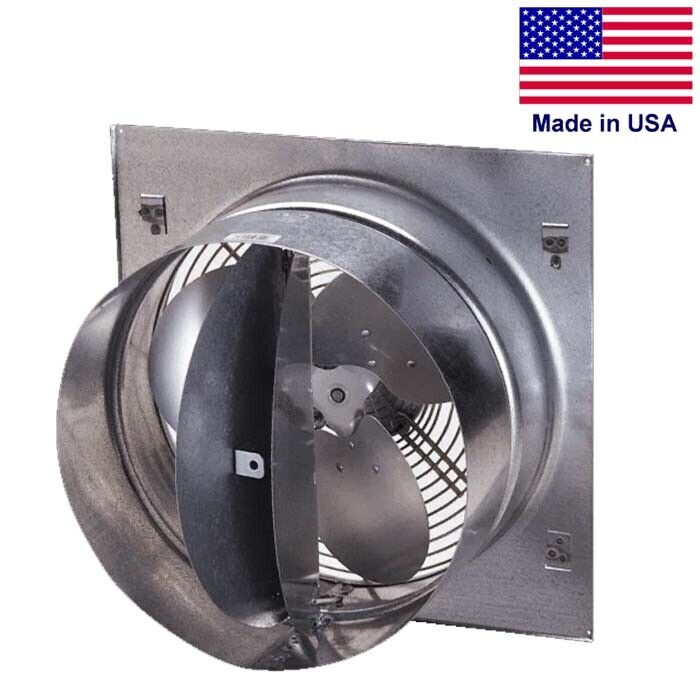

Butterfly damper offers an increase in airflow compared to standard shutters. This is due to the shutter design being air flow resistant once open
Design accumulates less dust build up

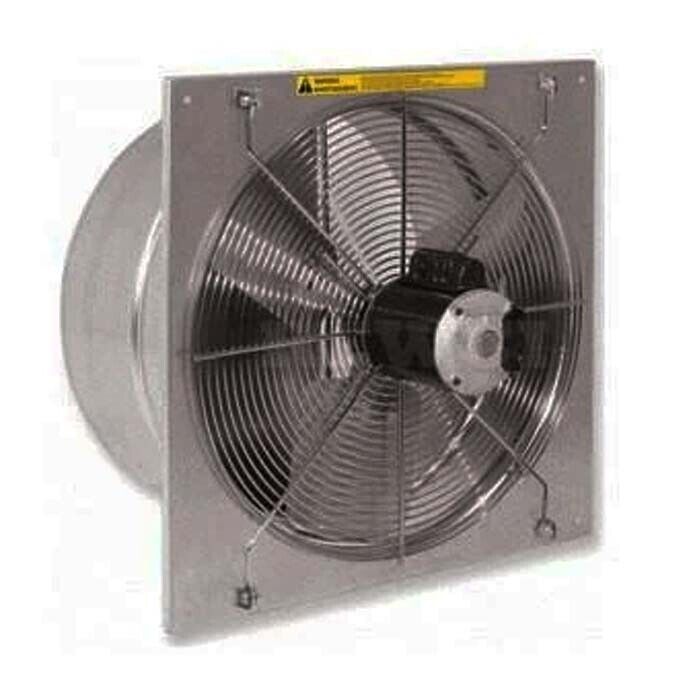

Easily clean the fan thanks to the hinged rear guard. Simply remove two bolts and swing the fan assembly
Adjustable positive draft-free closure
Fan Size (in): 16"
CFM: 2310
Volts: 115/230
Phase: Single
HP: 1/3
RPM: 1,725
Speed: Variable
Drive: Direct
Blade Material: Aluminum
Optional: Galvanized Weather Hood - NOT INCLUDED - Please Inquire
Optional: 120 Volt Variable Speed Control - Controls Upto 2 Fans - NOT INCLUDED - Please Inquire
Housing Material: 18 Gauge Galvanized
Rough Opening (H x W): 18" x 18"
