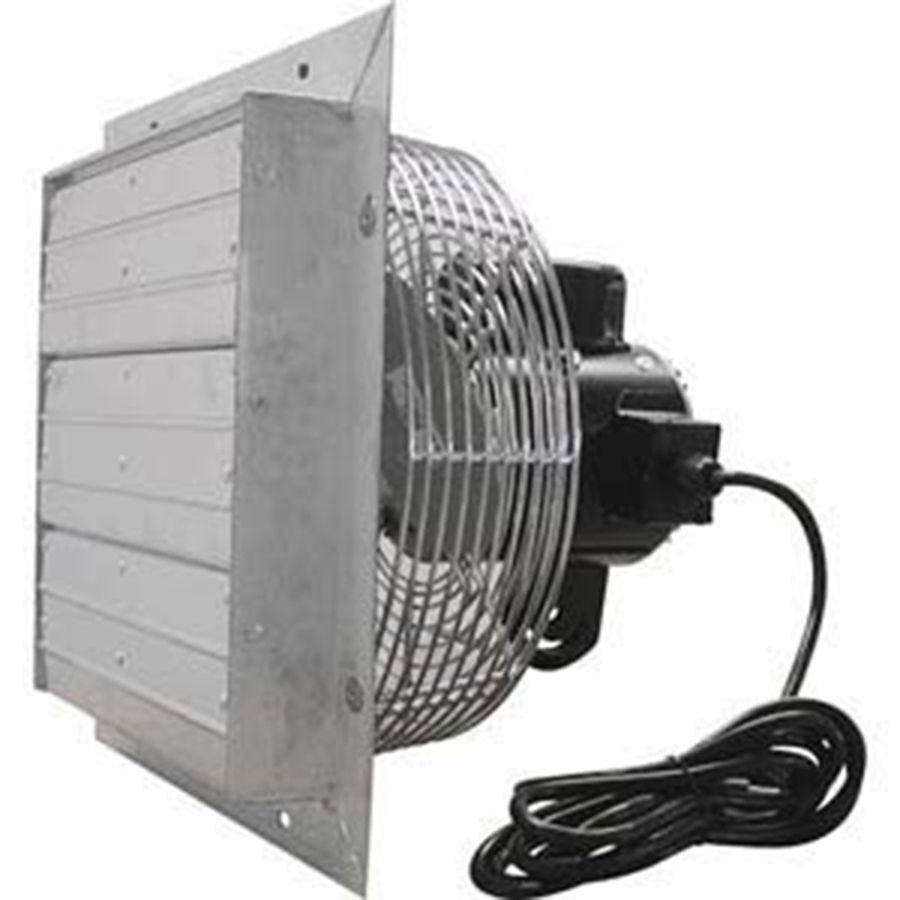

16" EXHAUST FAN - Direct Drive - 115V - 3000 / 2100 / 1300 CFM - 3 Spd - 3 Blade

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PT109846

Condition: New

Description: 16" EXHAUST FAN - Direct Drive - 115V - 3000/2100/1300 CFM - 3 Spd - 3 Blades

This Series of Commercial Exhaust Fans is Available in the Following Configurations:

Model PT109845 - 12" Blade Diameter - Variable Speed

Model PT109844 - 12" Blade Diameter - 3 Speed

Model PT109847 - 16" Blade Diameter - Variable Speed

Model PT109846 - 16" Blade Diameter - 3 Speed

Model PT109849 - 20" Blade Diameter - Variable Speed

Model PT109848 - 20" Blade Diameter - 3 Speed

Model PT109851 - 24" Blade Diameter - Variable Speed

Model PT109850 - 24" Blade Diameter - 2 Speed

Description & Specification:

• Commercial Heavy Duty 16" 3 Speed Direct Drive Exhaust Fan with Shutters Screen Motor Guard - Optional Weather Proof Prewired Thermostat Available (see optional items below)

• This line of commercial exhaust fans are designed for use in horticultural and agricultural applications, manufacturing and assembly facilities, warehouses, garages, restaurants, attics and more.  Removes and controls unwanted condensation while improving indoor air quality

• This series of commercial exhaust fans is available in 12", 16", 20" and 24", with variable, 2 and 3 speed motors (2 & 3 speed fans have built in speed switches)

• Featuring high performance, economical operation, versatility and quiet operation

• Totally enclosed and maintenance free commercial grade motors come complete with 9 ft power cords factory pre-wired to 115V

• Heavy duty corrosion resistant aluminum shutters/louvers are standard in this series

• Patented tie bar reduces shutter flapping and opening during windy conditions and keeps shutters closed when fan is off

• OSHA compliant chrome fan guard provides safety and keeps rodents and birds out of fan blades

• Drive Type: Direct

• Speeds: 3

• Blade Diameter: 16"

• CFM - High: 3,000

• CFM - Medium: 2,100

• CFM - Low: 1,300

• Voltage: 115V

• Motor: 1/8 Hp (TEAO - thermally protected)

• Phase: 1

• Hertz: 60

• RPM High: 1570

• RPM Medium: 1400

• RPM Low: 1000

• Blades: 3

• Rough Opening Requirement: 16.5" x 16.5"

• Ships completely assembled

• Optional Item: Model PTCR2045 - Thermostat for Exhaust Fans - Prewired - Includes 8 Ft Power Cord - 115V - Please Inquire

• Ship Weight: 23 Lbs

• 1 Year Warranty (Includes Parts & Labor)
