Pacific Tundra

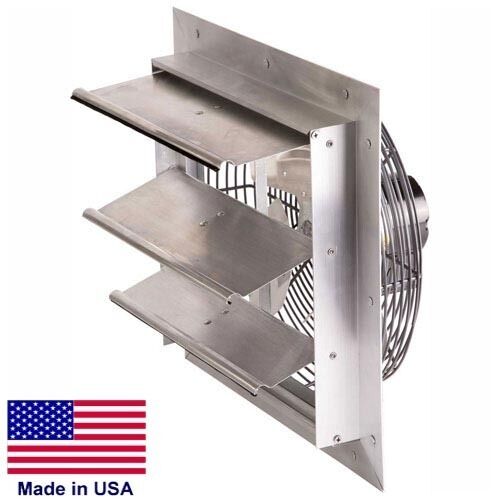

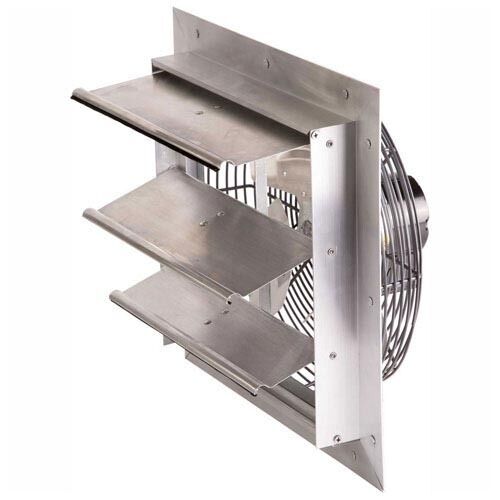

16" Exhaust Fan - Shutter Mount - 115 Volts - 1/20 HP - 1,095 CFM - Alum - 1 PH
16" Exhaust Fan - Shutter Mount - 115 Volts - 1/20 HP - 1,095 CFM - Alum - 1 PH
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PTWGB2175208
Condition: New
Description: 16" Exhaust Fan - Shutter Mount - 115 Volts - 1/20 HP - 1,095 CFM - Alum - 1 PH
Features: 16" Exhaust Fan - Shutter Mounted - Vertical Mount - Easy to install - User friendly - Aluminum leakage performance shutter - 115 Volts - 1/20 HP - 1,095 CFM - 60 hz - Aluminum and Steel Construction - 1 Phase - Direct Drive - Thermally Protected UL and C-UL Listed - Thermally protected motor - OSHA compliant - Made in the USA
THIS LINE OF COMMERCIAL EXHAUST FANS IS AVAILABLE IN FOLLOWING CONFIGURATIONS:
Sizes range between 7" to 20"
Motors from 1/25 to 1/4 Hp
Single Phase Only
CFM Ranges from 140 to 2,830
Description & Specification:
AMPS: 5
APPROVAL: UL & C-UL Listed
ASSEMBLED: Yes
CFM HIGH: 1,095
CFM LOW: 720
COLOR FINISH: Silver
CONSTRUCTION: Aluminum/Steel
FAN DIAMETER (inches): 12"
DEPTH (inches): 14-7/8"
WIDTH (inches): 19-1/8"
HEIGHT (inches): 19-1/8"
ROUGH OPENING (inches): 17" x 17"
DRIVE TYPE: Direct Drive
HERTZ (HZ): 60
HORSEPOWER: 1/20
MOUNT TYPE: Vertical
PHASE: 1
RPM HIGH: 1,550
SPEEDS: Variable
VOLTAGE: 115
WEIGHT LBS: 20
WARRANTY: 1 Years
MADE IN THE USA
