Pacific Tundra

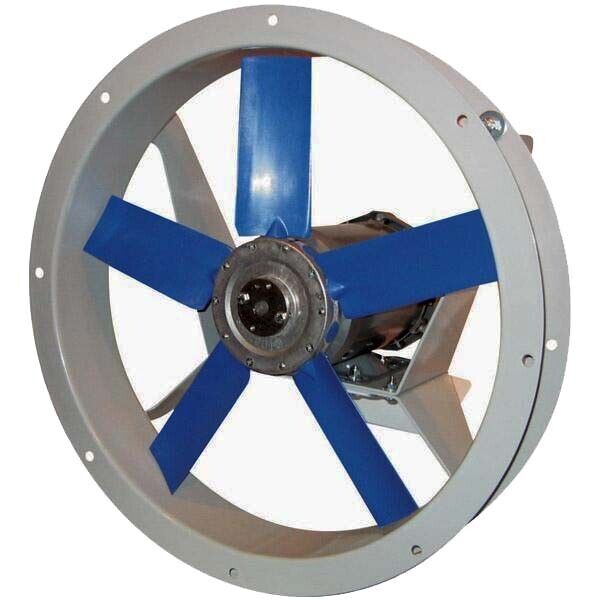

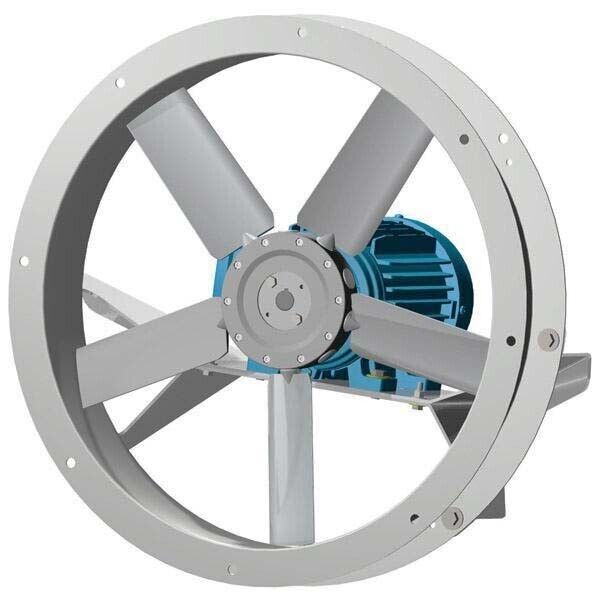

16" Flange Mounted SUPPLY FAN - 3000 CFM - 230/460 Volts - 3 Ph - 3/4 HP - TEFC
16" Flange Mounted SUPPLY FAN - 3000 CFM - 230/460 Volts - 3 Ph - 3/4 HP - TEFC
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT1010A
Condition: New
Description: 16" Flange Mounted SUPPLY FAN - 3,000 CFM - 230/460 Volts - 3 Phase - 3/4 HP - TEFC
Features: Constructed of commercial grade materials - Baked polyester powder coated finish - Direct drive - Cast aluminum impeller - TEFC Motor
Please Note: This unit is built to order
Please allow 10 to 15 business days to manufacture and ship
Description & Specification:
Includes: Supply Fan
Blade Size (in): 16"
CFM: 3,000
Volts: 230/460
Phase: 3
HP: 3/4
RPM: 1,750
Hertz: 60
Drive: Direct
Motor Type: TEFC
Decibels: 66 dBA
Blades: 10
Blade Material: Cast Aluminum
Constructed Material: Steel
Optional: GRP (Polypropylene) Impeller - Please Inquire
Optional: Fully-Reversible Design - Please Inquire
Optional: Customized Coating (Please Inquire)
Optional: Mounting Panel (Please Inquire)
Optional: Motor Side Guard (Please Inquire)
Optional: Reverse Flow Construction (Please Inquire)
Optional: Housing Yoke with Mounting Bracket (Please Inquire)
Optional: AMCA Spark Resistant Construction (Please Inquire)
Optional: Explosion Proof Motor (Please Inquire)

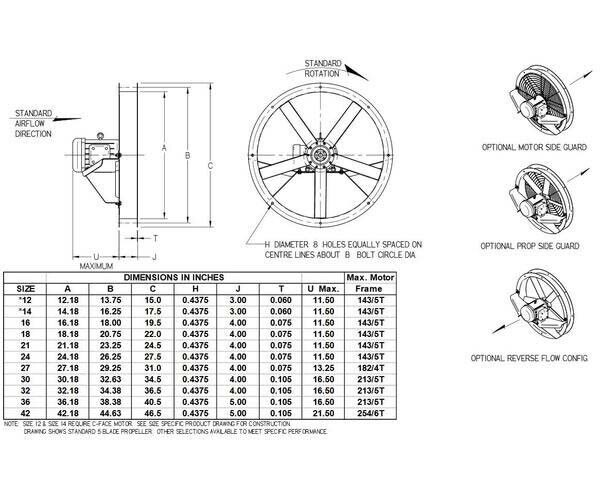

Dimensions (in): 19.5" x 15.5" x 19.5"
Warranty: 1 Year
