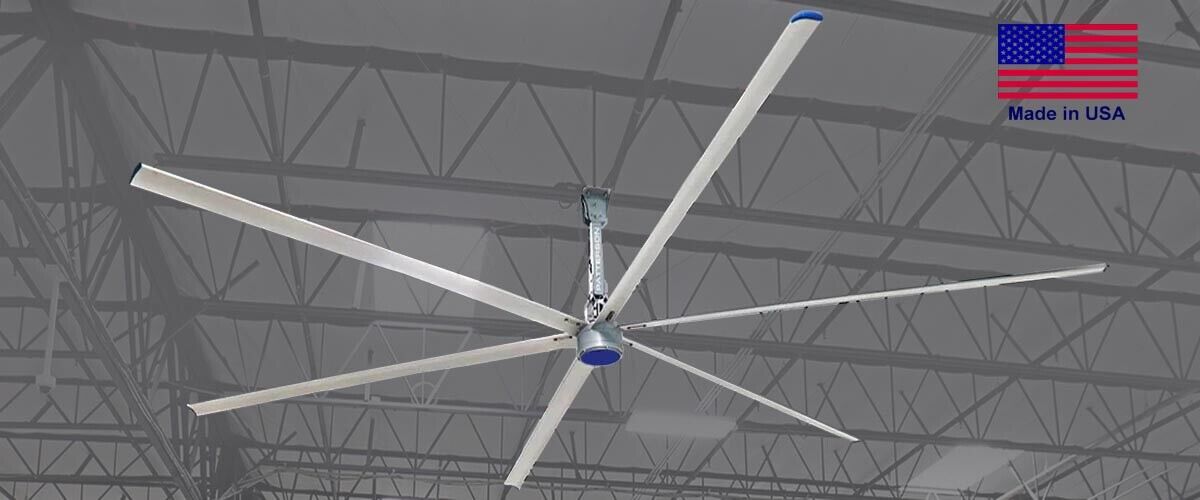

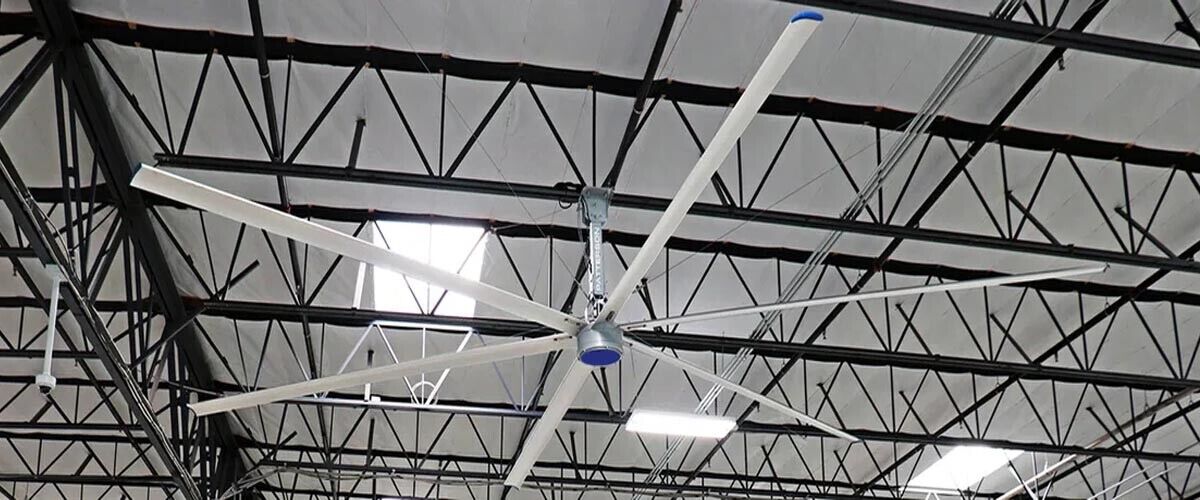

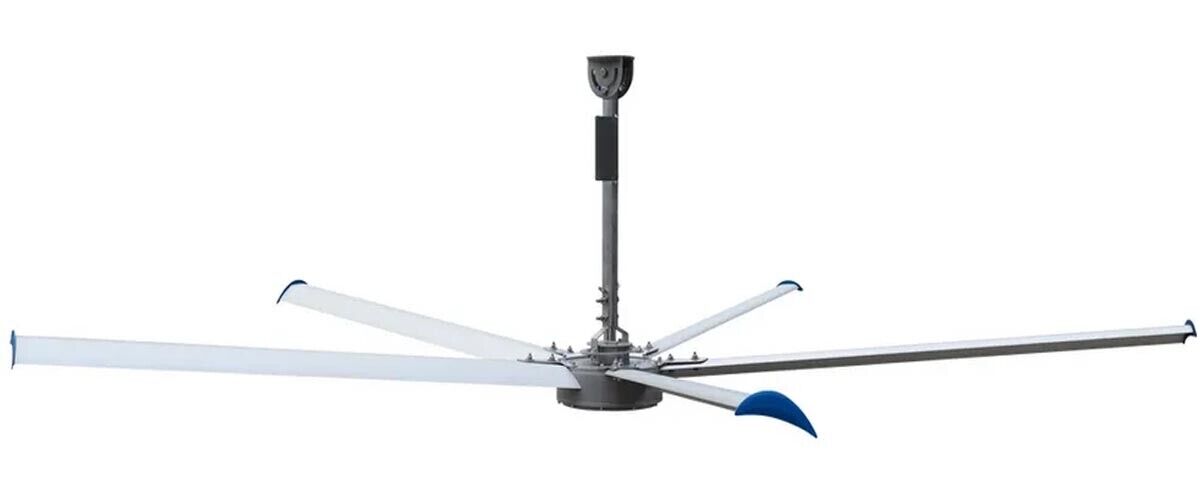

16 ft Ceiling Fan - 16,218 Sqft Coverage - 460 Volts - 3 Phase - Commercial
16 ft Ceiling Fan - 16,218 Sqft Coverage - 460 Volts - 3 Phase - Commercial
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT1098
Condition: New
Description: 16 ft Ceiling Fan - 16,218 Sqft Coverage - 460 Volts - 3 Phase - Commercial
Description & Specification:
Maintenance free
Direct Drive with zero gears
7 Degree blade angling provides for a wider coverage area
Forward, reversible, and variable speed control
Rated for outdoor and indoor applications
Comes standard with 2ft downward rod
Typical applications include agriculture, automotive, aviation, breweries, event centers, fitness, gyms, government buildings, manufacturing, sporting events, etc
Coverage (Sqft): 16,218
Blade Width (ft): 16
Volts: 460
Phase: 3
Drive: Direct
HP: 1
RPM: 80
Hertz: 60
Blades: 5
Frame Material: Powder Coated Welded Steel
Hub Assembly Material: Cast Aluminum
Blade Material: Aluminum Alloy
Wingtip Material: Molded Plastic
Optional: Downrod extensions up to 10ft - Please Inquire (NOT INCLUDED)
Please Note: Bulk Pricing is available - Please contact us our Best Offer price
Dimensions (W x D x H): 192" x 192" x 31.5"
Weight (lbs): 115
