18" Exhaust Fan - 3,200 CFM - 1/3 HP - 115 / 230 Volts - EXPLOSION PROOF PANEL
18" Exhaust Fan - 3,200 CFM - 1/3 HP - 115 / 230 Volts - EXPLOSION PROOF PANEL
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PTWBB880459
Condition: New

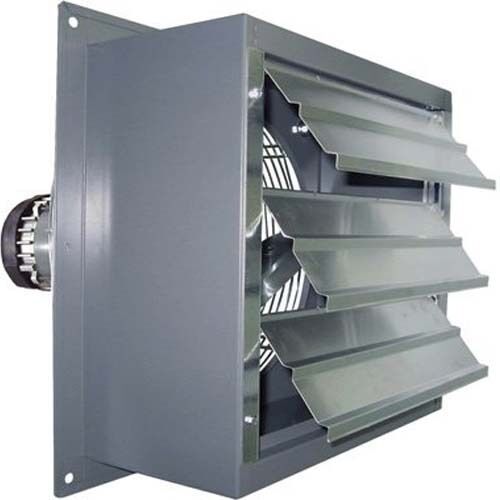

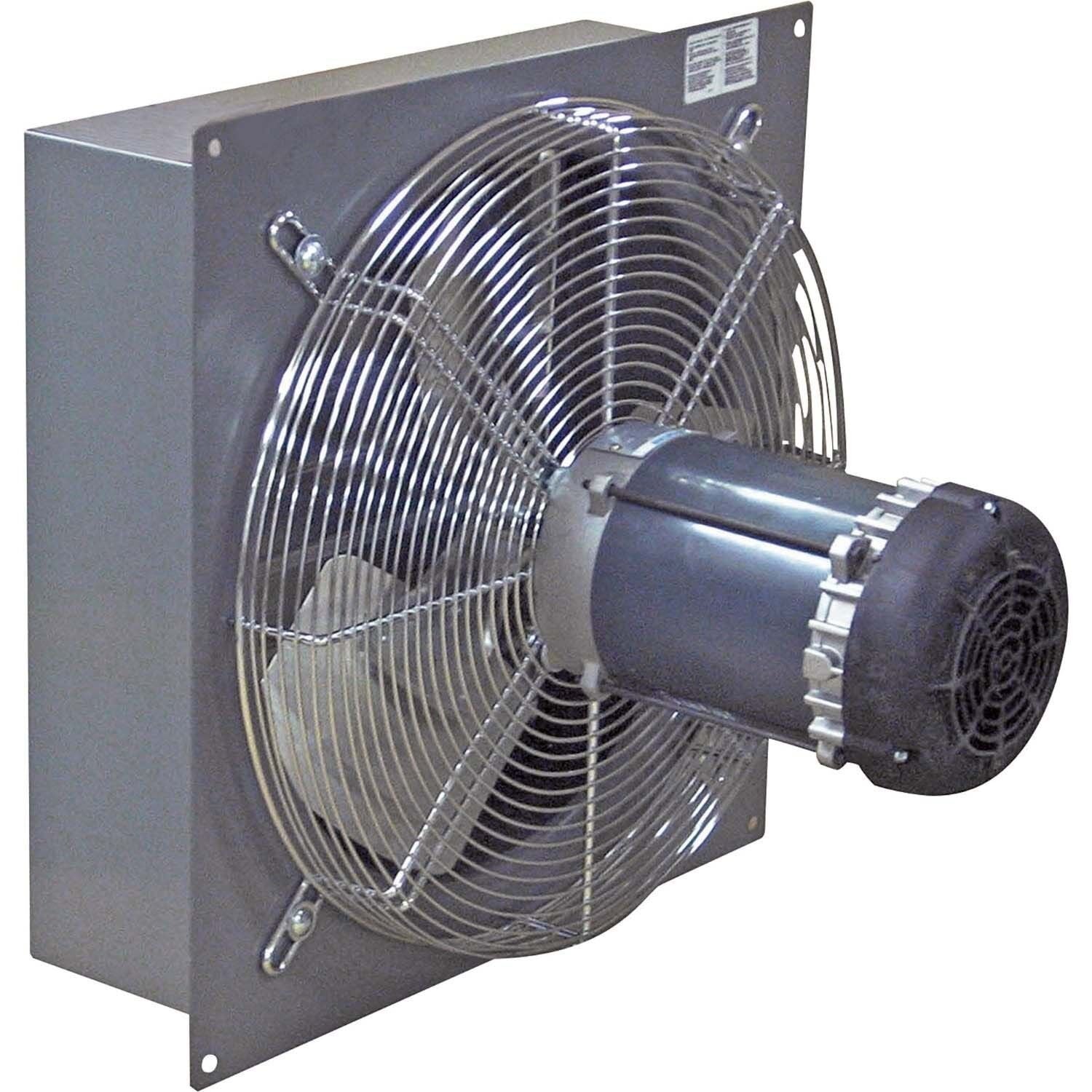

Description: 18" Exhaust Fan - 3,200 CFM - 1/3 HP - 115 / 230 Volts - EXPLOSION PROOF PANEL
Features: Industrial steel welded box housing features a heavy-duty powder-coated finish. Totally enclosed ball bearing motor. Thermal overload protection ensures reliable performance. Installs from interior. Requires hardwired connection. Capacitor Start
Please Note: This unit is built to order
Please allow 1 to 2
weeks for manufacturing and delivery
Description & Specification:
LENGTH (in): 20 1/2"
WIDTH (in): 23 1/4"
HEIGHT (in): 23 1/4"
FAN DIAMETER (in): 18"
ROUGH OPENING (in): 21" x 21"
COLOR: Gray
CONSTRUCTION: Steel
CFM HIGH: 3,200
RPM: 1,625
SPEEDS: 1
VOLTS: 115 / 230
PHASE: 1
AMPS: 6.6 / 3.3
HORSEPOWER: 1/3
MOTOR TYPE: Totally Enclosed Explosion Proof
APPROVAL: CSA Listed
