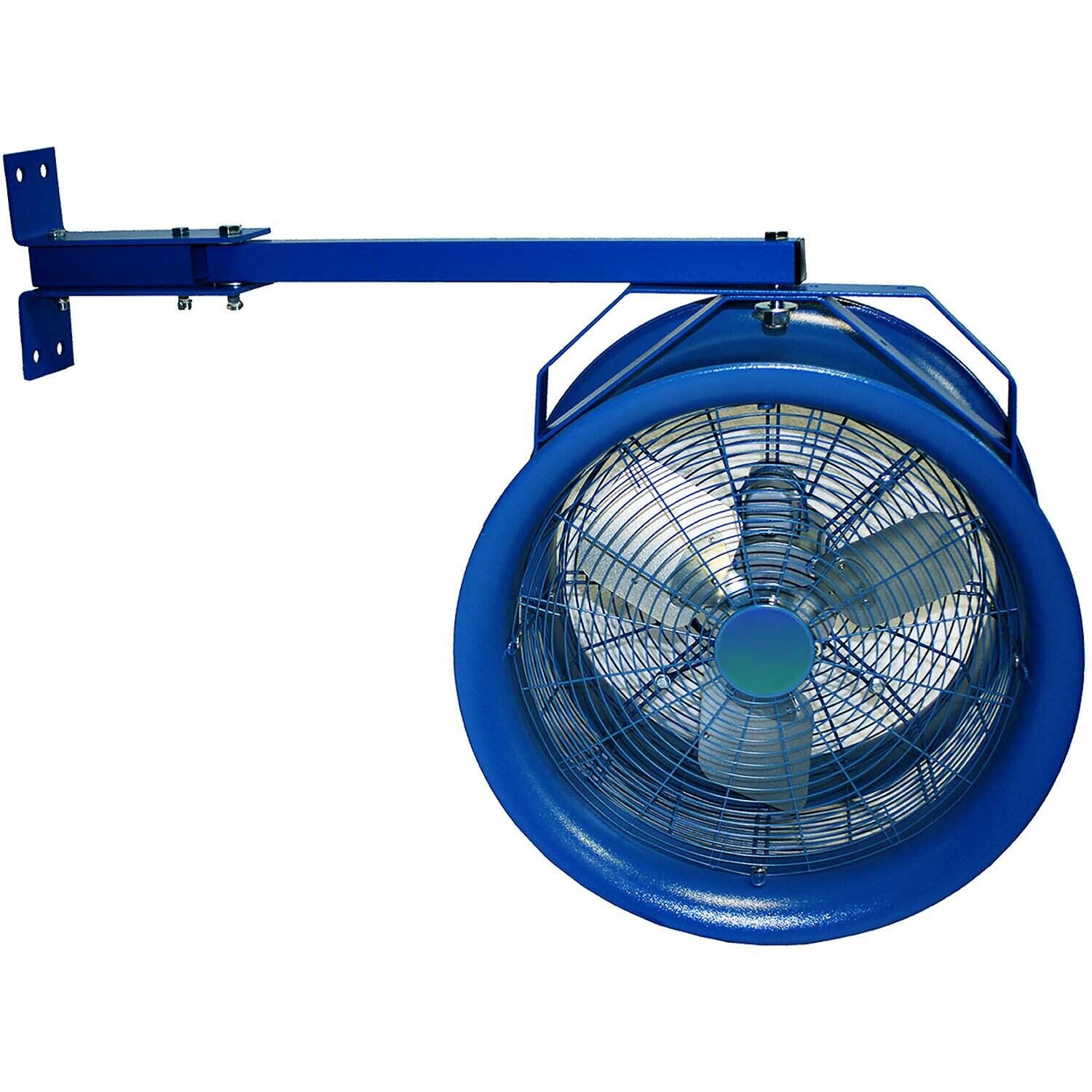

18" Loading Dock Fan - 3,800 CFM - 115 Volt - 1 Phase - 2,700 sqft - 80 ft Throw
18" Loading Dock Fan - 3,800 CFM - 115 Volt - 1 Phase - 2,700 sqft - 80 ft Throw
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PTWG292599
Condition: New
Description: 18" Loading Dock Fan - 3,800 CFM - 115 Volt - 1 Phase - 2,700 sq ft - 80 ft Throw
Features: Removes heat, gas, odor, dust, dirt, etc in just over 2 minutes - Includes a swing arm, yoke, and wall bracket - TEAO (Totally Enclosed Air Over) Motor - 12ft power cord - Designed to withstand high impact accidents - Perfect for loading docks doors of all sizes.
Description & Specification:
Includes: 1 Fan, Swing Arm, Yoke, and Wall Mount

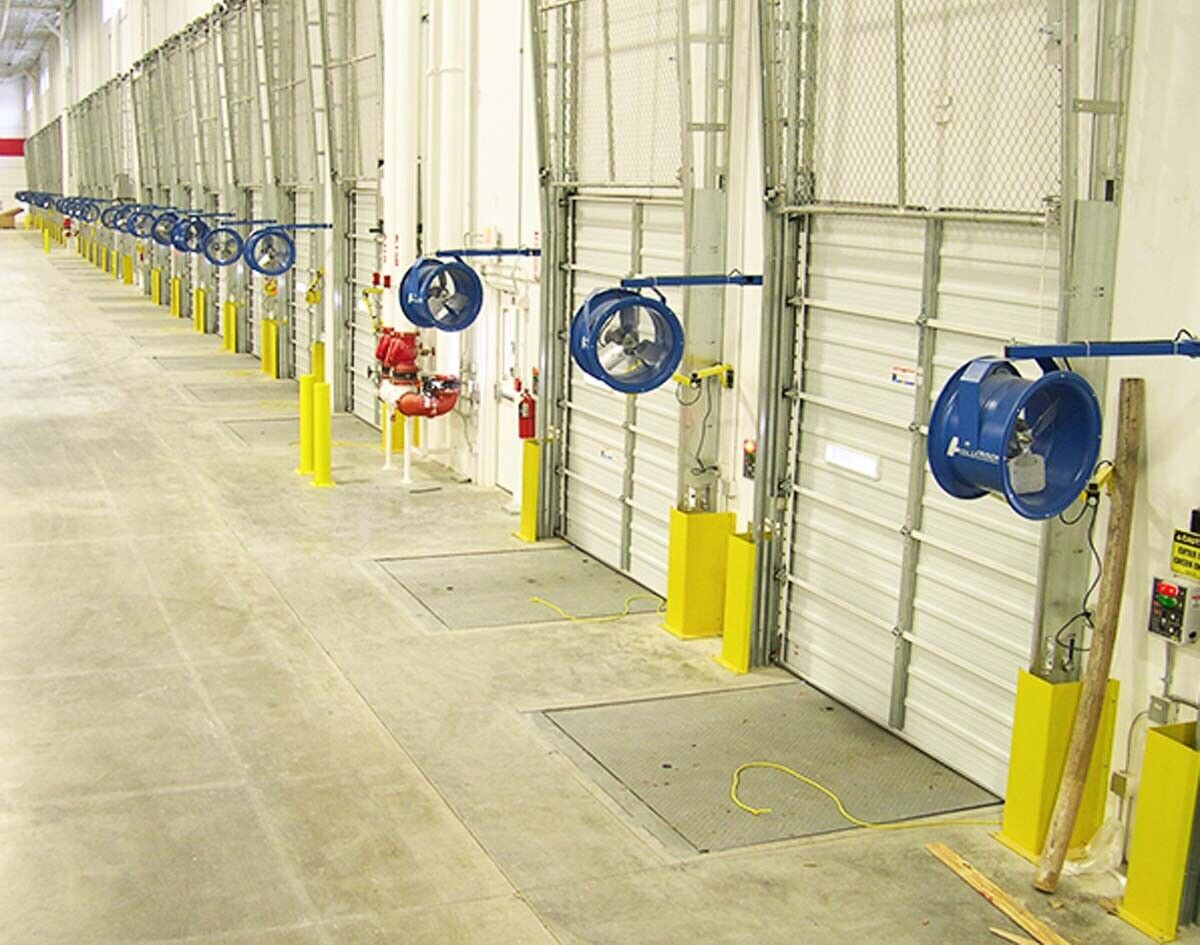

Application: Loading dock doors
CFM: 3,800
Coverage (sq ft): 2,700
Volts: 115
Phase: 1
Horsepower (hp) 1/2
Amps: 6
Watts: 345
RPM: 1,725
Air Throw (ft): 80
Hertz (hZ): 60
Speeds: 1
Decibels: 71
Motor Type: Totally Enclosed Air Over (TEAO)
Constructed Material: Polypropylene
Blade Material: Galvanized Aluminum
Blade Quantity: 3
Non-Oscillating: Yes
Wall Mount: Yes

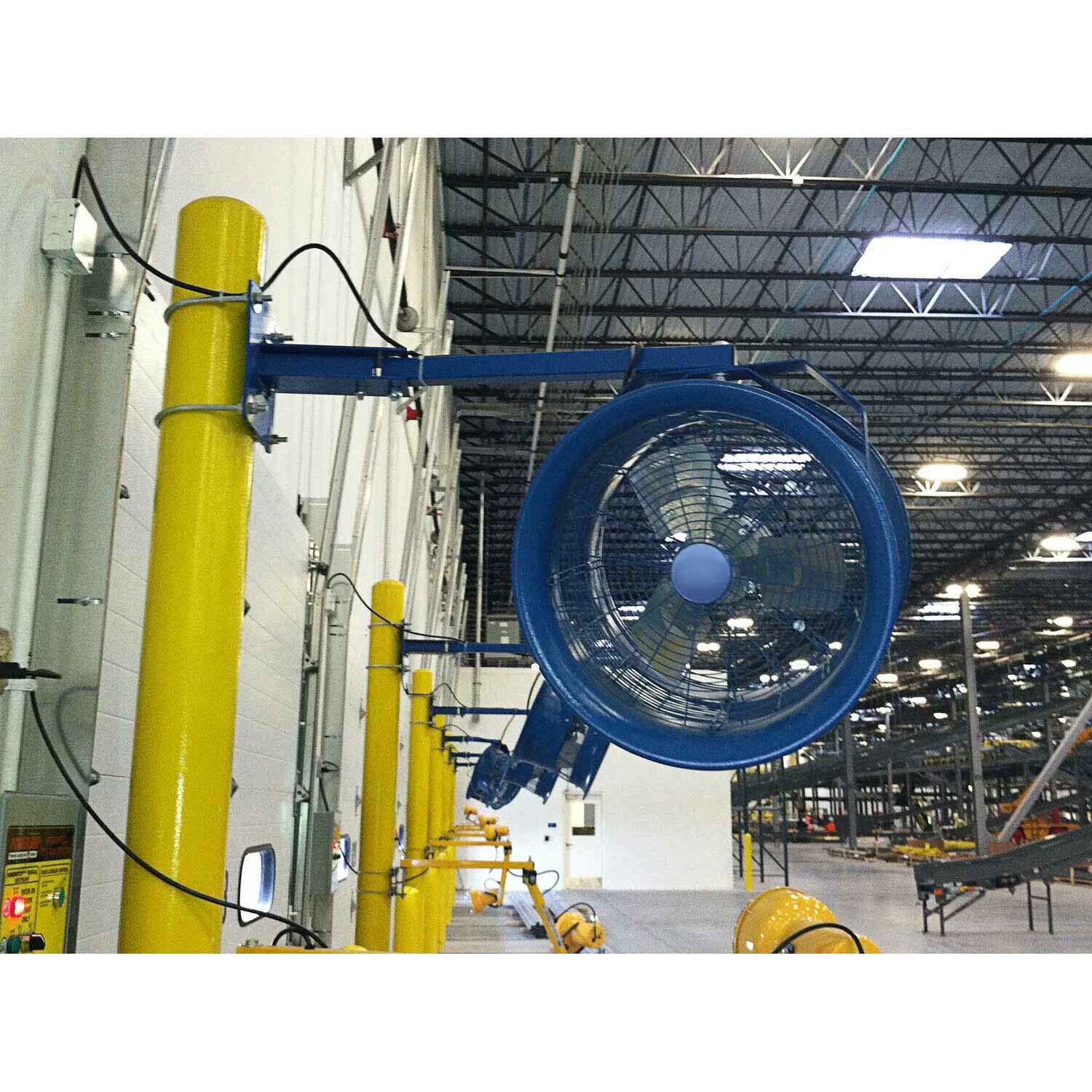

Mount Location: Wall, Column, or Door
Cord Length (ft): 12
Cord Type: SJT 3 Conductor
Optional: LED Dock Light - Mounts to the side of the fan - NOT INCLUDED (Please Inquire)
Dimensions (L x W x H): 24" x 16" x 24"
Weight (lbs): 42
