Pacific Tundra

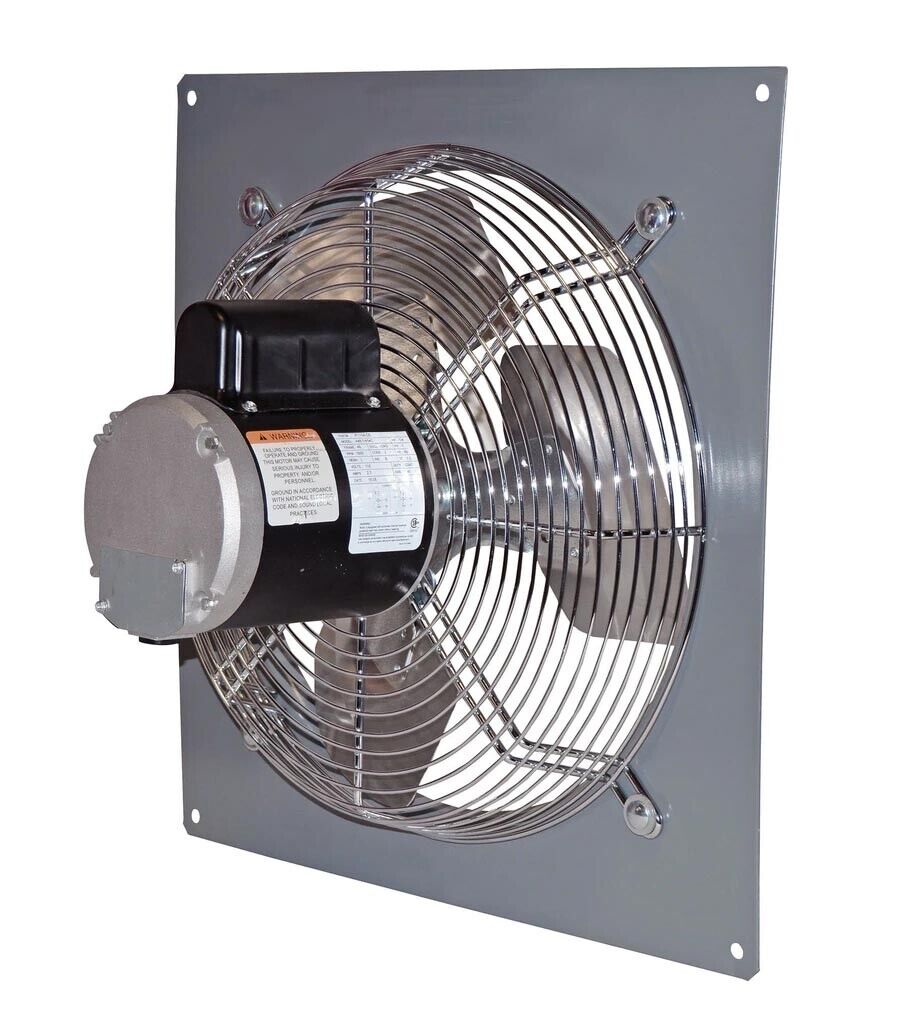

18" Panel Exhaust Fan - Variable Speed - 3150 CFM - 115/230 V - 1 Ph - 1/3 HP
18" Panel Exhaust Fan - Variable Speed - 3150 CFM - 115/230 V - 1 Ph - 1/3 HP
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT1028
Condition: New
Description: 18" Panel Exhaust Fan - Variable Speed - 3150 CFM - 115/230 Volts - 1 Ph - 1/3 HP
This series of fan is available in various size, voltage, and phases.
Please inquire for assistance
Description & Specification:
Blade Diameter (in): 18"
CFM: 3,150
Volts: 115
Phase: 1
Drive: Direct
Amps: 3.8 / 1.9
HP: 1/3
RPM: 1,700
Speed: Variable
Hertz: 60
Blades: 3

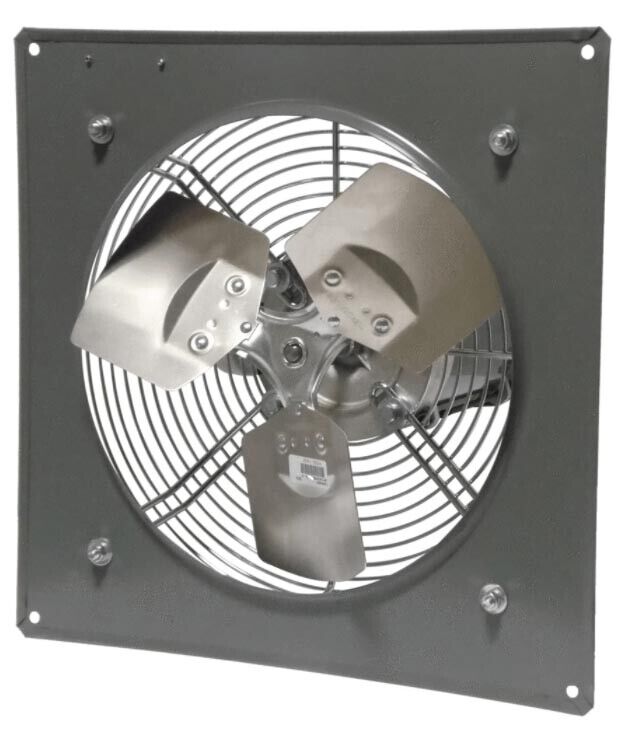

Please Note: Blades shown in the photos are a stock photo - Blade quantity will vary
Optional: Speed Controller - NOT INCLUDED - Please Inquire
Optional: Moisture Proof Thermostat - NOT INCLUDED - Please Inquire
Optional: Rain Hood - NOT INCLUDED - Please Inquire
Optional: Outdoor Shutter - NOT INCLUDED - Please Inquire
Please Allow 2 weeks for manufacturing
Please allow an additional 2 weeks for summer seasonal demand
Dimensions (W x D x H): 23-1/4" x 11-1/4" x 23-1/4"
Weight (lbs): 37
