Pacific Tundra

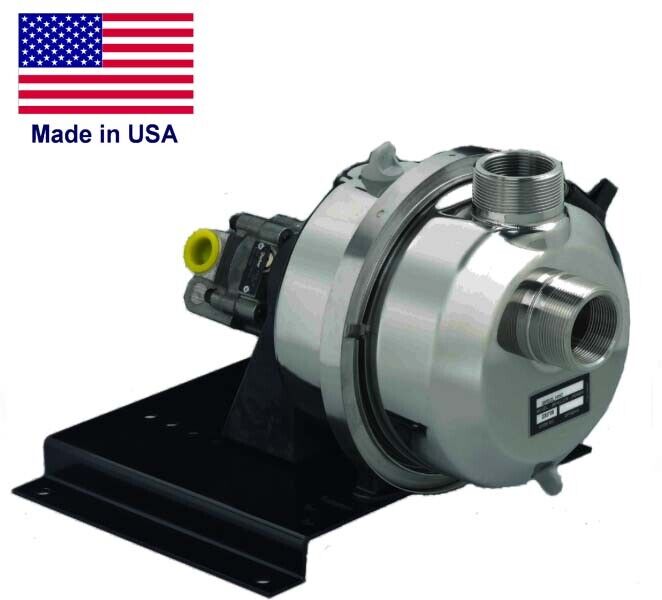

180 GPM Centrifugal Water Pump for Hydraulic - 1.5" FNPT & 2" MNPT - Self Prime

180 GPM Centrifugal Water Pump for Hydraulic - 1.5" FNPT & 2" MNPT - Self Prime

Regular price $4,549.71
Regular price Sale price $4,549.71
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number: PTIPW38

Condition: New

Description: Centrifugal Pump for Hydraulic Motors - 180 GPM - 1.5" Female Port - 2" Male Port - Self Priming

Features: Built for Potable (drinking water) applications - Pedestal mounted to be used with your prefered motor or engine - Hydraulics are NOT included - CARB and EPA compliant - Made in the USA.



This Series of Commercial Centrifugal Pumps are Available in the Following Configurations:

Flows: 4500 GPH (75 GPM) to 7800 GPH (130 GPM)

PSI Range: 23 to 25

Motor Sizes: 1 Hp to 2 Hp

Voltage/Phase: 115/230V, 1 Phase, 208-230/460V, 3 Phase and 230/460V, 3 Phase

Suction/Discharge Ports: 1.5" to 2"


Description & Specification:

Application: Potable (Drinking Water)

Pump Type: Centrifugal - Industrial/Commercial

Power Source: Hydraulic Motor (Not Included)

Hydraulic RPM Required: 3,450

Hydraulic PSI Required: 750 (Cannot exceed 1,550 PSI)

Hydraulic HP Required: 3

Hydraulic GPM Required: 9 (Cannot exceed 9.5)

Inlet Diameter (in): 1.5" Female and 2" Male

Outlet Diameter (in): 1.5" Female and 2" Male

Port Type: Dual Port NPT

GPM: 180

Maximum Total Head (Static): 78 ft

Maximum PSI: 34

Maximum Suction Lift (Sea Level): 20

Solids: No

Housing: Stainless Steel

Pump Fittings: Stainless Steel

Volute Material: Polypropylene

Impeller: Polypropylene

Impeller Number: 1

EPDM: Mechanical Seal Material, Check Valve, and Shaft Sleeve

Shaft Keyway Slot Width (in): 0.1875"

Note: We carry a full line of accessories including hoses, strainers, seal kits, wheel and dolly kits and more - Please Inquire

Weight (lbs): 27

Warranty: 1 Year

MADE IN THE USA
