Pacific Tundra

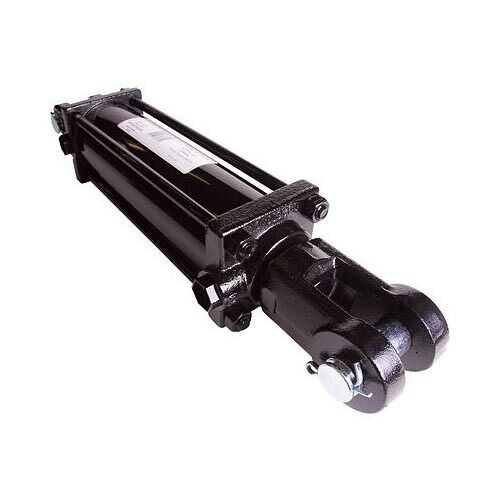

2 1/2 " Bore Hydraulic Cylinder 3,000 PSI - Choose LH, TH & Stroke - Tie Rod

2 1/2 " Bore Hydraulic Cylinder 3,000 PSI - Choose LH, TH & Stroke - Tie Rod

Regular price $484.69
Regular price Sale price $484.69
Sale Sold out
LH, TH & Stroke
start_elivehelp_btncode
end_elivehelp_btncode

FREE SHIPPING OFFER

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number:



Model Numbers Below on Chart



Condition:



New



Description:


2 1/2" Bore Hydraulic Cylinder 3,000 PSI - Choose LH, TH & Stroke





 Features:


This hydraulic tie-rod cylinder gives you the flexibility and options you need. Designed for durability and long life, this cylinder is equipped to handle higher pressure agricultural tractor and tillage applications as well as demanding industrial applications. Complete with zinc plated pins and cotters for easy installation.



Contact Us:



Phone (Toll Free): 1-888-257-8607

Email: eBay mail or our customer service email





See similar items in our eBay Store


Description & Specification:



Description

Model

Max PSI

Bore Diameter (in.)

Stroke Length (in.)

Closed Pin Center (in.)

Shaft Diameter (in.)

2.5" Bore, 16" Stroke

PT24581

3,000

2 1/2

16

26 1/4

1 1/2

2.5" Bore, 24" Stroke

PT24616

3,000

2 1/2

24

34 1/4

1 1/4

2.5" Bore, 24" Stroke

PT24583

3,000

2 1/2

24

34 1/4

1 1/4

2.5" Bore, 8" Stroke

PT24614

3,000

2 1/2

8

18 1/4

1 1/8

2.5" Bore, 16" Stroke

PT24615

3,000

2 1/2

16

26 1/4

1 1/4

2.5" Bore, 12" Stroke

PT24580

3,000

2 1/2

12

22 1/4

1 1/8



  • 90 durometer O-ring seals with anti-extrusion backup rings to prevent leakage and promote positive sealing under high loads
  • 3000 PSI working pressure
  • 6000 PSI proof load
  • High tensile steel tie-rod construction helps prevent failure at high pressure
  • Steel piston lock nut
  • Ductile iron piston
  • Hard chromed cylinder shaft
  • Skive and burnished tube
  • High grade ductile iron rod cap and clevis caps
  • Heavy-duty ductile iron rod clevis
  • Ideal for single acting and double acting applications
