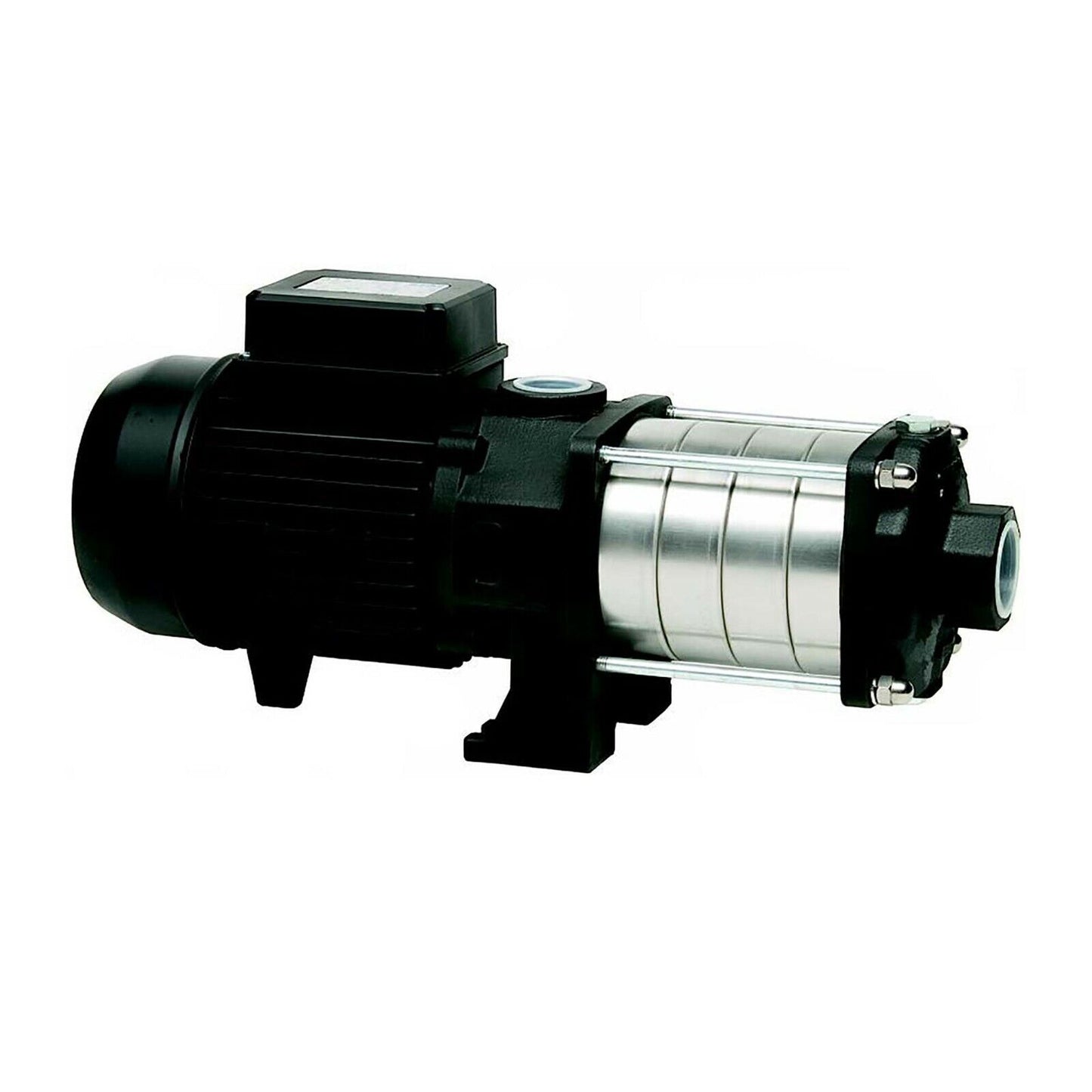

2.5" Port WATER PUMP - 12720 GPH - 12.5 HP - 460V - 3 Ph - 2 Stage - Horizontal
2.5" Port WATER PUMP - 12720 GPH - 12.5 HP - 460V - 3 Ph - 2 Stage - Horizontal
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT1074
Condition: New
Description: 2.5" Port WATER PUMP - 12720 GPH - 12.5 HP - 460V - 3 Ph - 2 Stage - Horizontal
Description & Specification:
Alumina Oxide / Graphite mechanical seal
Stainless Steel / Carbon Steel impeller
Corrosion resistant stainless steel rotor shaft
Cast Iron housing
Designed for for pumping clean water and non-corrosive liquids
NOT capable of handling solids
Port Size (in): 2.5"
Maximum GPH: 12,720
Voltage: 460
Phase: 3
PSI: 163
Watts: 9,200
kW: 9.2
Amps: 19.6
Vertical Lift (ft): 17

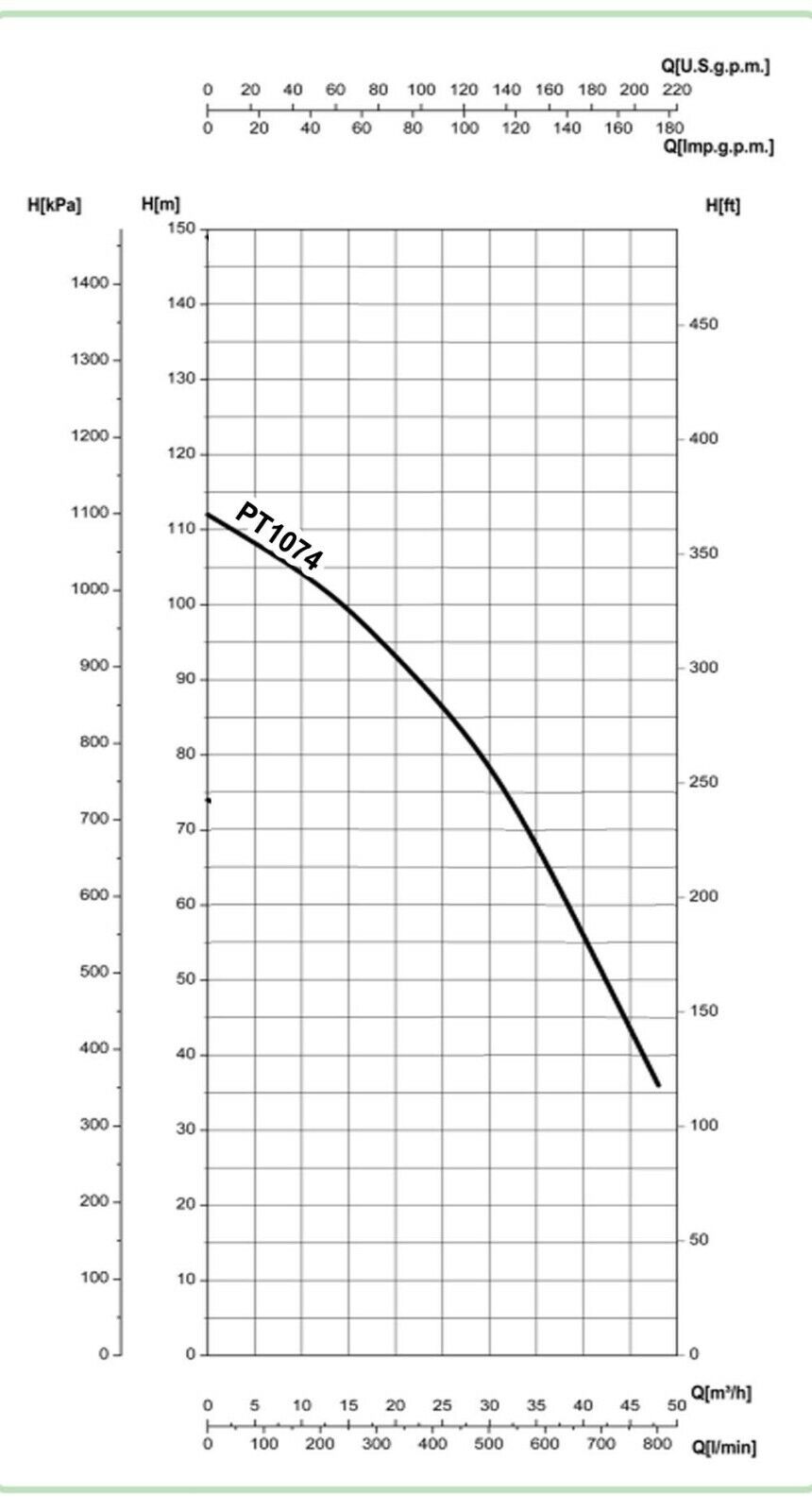

Maximum Head Pressure (ft): 368
Temperature Range: 32°F - 194°F
Dimensions (L x W x H): 31" x 13" x 11"
