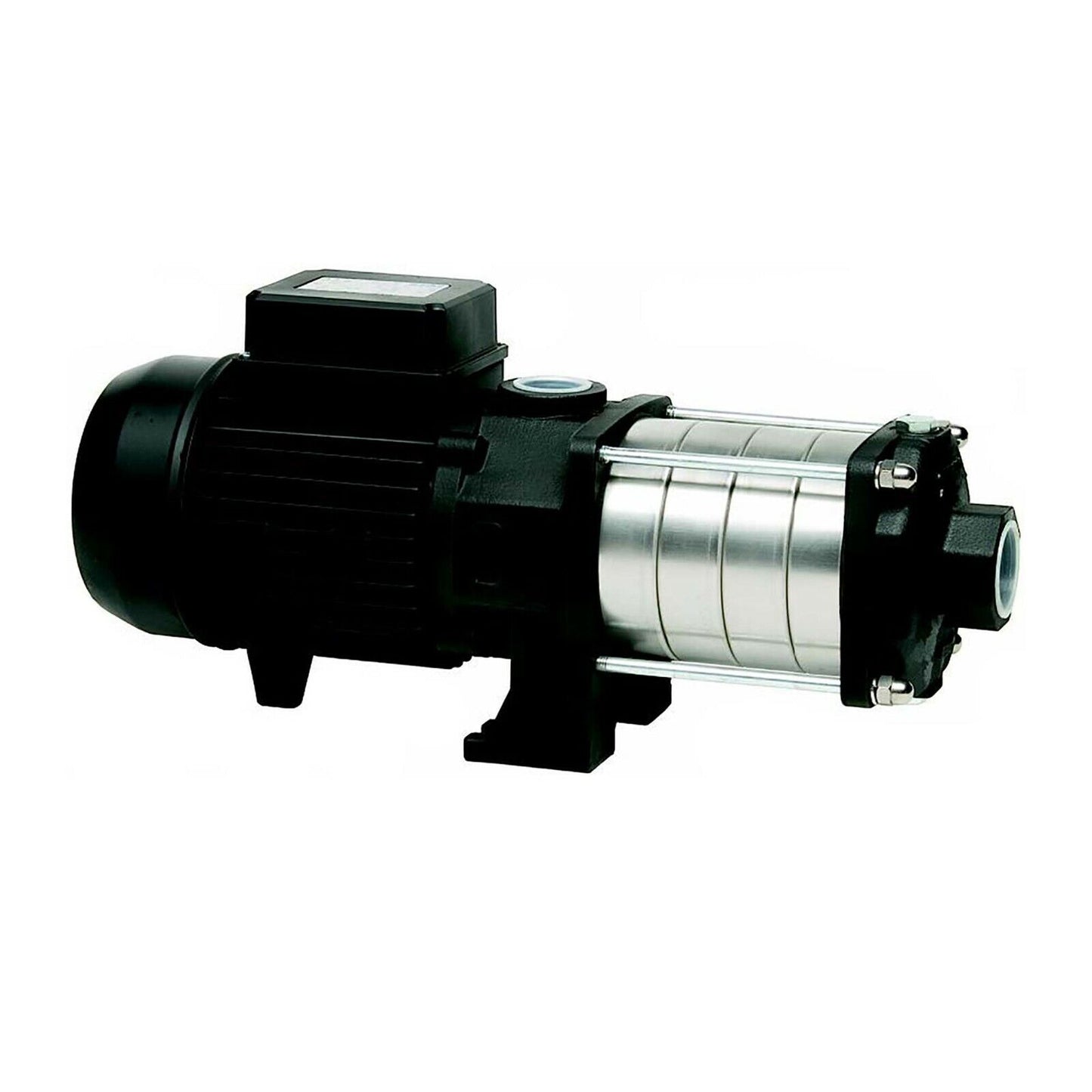

2.5" Port WATER PUMP - 12720 GPH - 460V - 3 Ph - 18.3 HP - 2 Stage - Horizontal
2.5" Port WATER PUMP - 12720 GPH - 460V - 3 Ph - 18.3 HP - 2 Stage - Horizontal
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT1073
Condition: New
Description: 2.5" Port WATER PUMP - 12720 GPH - 460V - 3 Ph - 18.3 HP - 2 Stage - Horizontal
Description & Specification:
Alumina Oxide / Graphite mechanical seal
Stainless Steel / Carbon Steel impeller
Corrosion resistant stainless steel rotor shaft
Cast Iron housing
Designed for for pumping clean water and non-corrosive liquids
NOT capable of handling solids
Port Size (in): 2.5"
Maximum GPH: 12,720
Voltage: 460
Phase: 3
PSI: 216
Watts: 13,500
kW: 13.5
Amps: 22.5
Vertical Lift (ft): 17
Maximum Head Pressure (ft): 489
Temperature Range: 32°F - 194°F
Dimensions (L x W x H): 36" x 12.5" x 10.5"
