Pacific Tundra

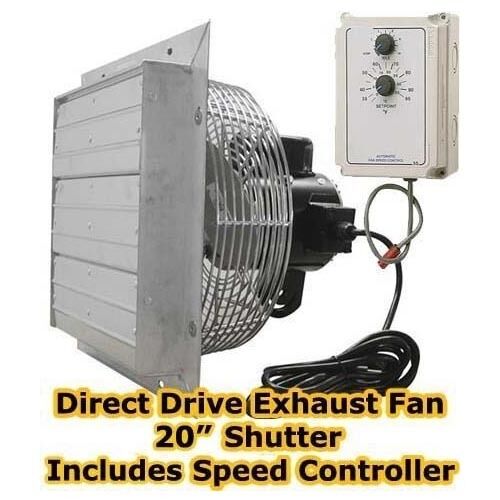

20" Exhaust Fan - 3,850 CFM - 115/230 Volts - Variable Speed - Speed Controller
20" Exhaust Fan - 3,850 CFM - 115/230 Volts - Variable Speed - Speed Controller
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT109849 & PTCR2150
Condition: New
Description: 20" Exhaust Fan - 3,850 CFM - 115/230 Volts - Variable Speed - Speed Controller
Description & Specification:
Designed for horticultural and agricultural applications, as well as factories, warehouses, garages, attics and restaurants. Remove and control unwanted condensation while improving inside air quality
High-performance, economical and versatile exhaust fan offers a quiet operation
Totally enclosed, maintenance-free motor comes complete with a 9' cord wired at 115V
Corrosion-resistant aluminum shutters
Tie bar reduces shutter flapping and opening on windy days and keeps shutters closed when fan is not running
Safety chrome grill on intake side meets OSHA standards
No electrician required. Just mount the fan in the wall and plug into an approved receptacle
Single phase. 60 Hz
Three aluminum blades
Comes completely assembled

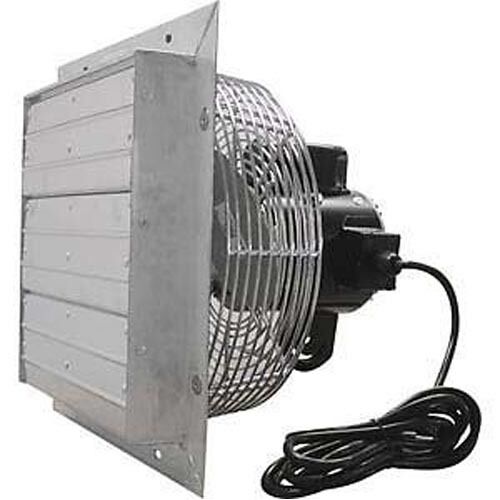

Exhaust Fan Description
Size: 20"
Horse Power: 1/10
Speed: 1
CFM@0" Static Pressure High/Low: 3,850/1,350
Rough Opening: 20.5" x 20.5"
Volts: 115/230
RPM: 1,725
Noise DB: 57/52
Weight (Lbs): 31

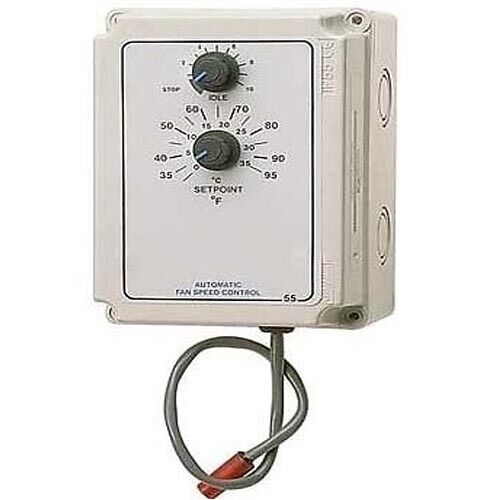

Speed Controller:
Percentage Range: 25%-85%
Power: 96/264VAC
Control: Phase control proportional, 6°F bandwidth
Output: 8.5A full load, 20.5A locked rotor
Temperature range: 35/95°F
Setpoint: Local set pot, 5°F divisions
Stability: 2% FS
Accuracy: 5% FS
Sensor: NTC 20K at 77F included
Operating ambient: Up to 120°F
Maximum speed: 98% line voltage
Dimensions: 4.3" x 5.9" x 4.9"
Sensor Dimensions: 9/16" diameter x 7/8" long probe, 12" leads
Mounting: 4x4 junction box
Volts: 120/240
Weight (lbs): 5
Additional Controller Information:
NEMA 4X
Idle speed adjustment: 25% to 85% and stop
Temperature range: 35°F to 95°F
8.5 Amp full load rating
3 second kick start
Fully insulated moisture proof enclosure
Universal line power 96/264VAC
Automatic fan control even in moisture prone conditions. Precisely modulate the speed of ventilation fans in response to changes in ambient temperature. Optimum air circulation is maintained in ventilated areas and buildings with minimum noise and efficient use of energy. A thermistor monitors the air temperature and, as the temperature rises or falls within a preset band above set point, the fan speed is correspondingly increased or reduced between maximum and minimum speed values. Especially designed for agricultural buildings, although of broad application in all ventilated areas, these fan controls are compact units designed to fit on a standard 4x4 junction box. Construction protects the electronic controls against dust and solid state design ensures long life and reliable operation.
