Pacific Tundra

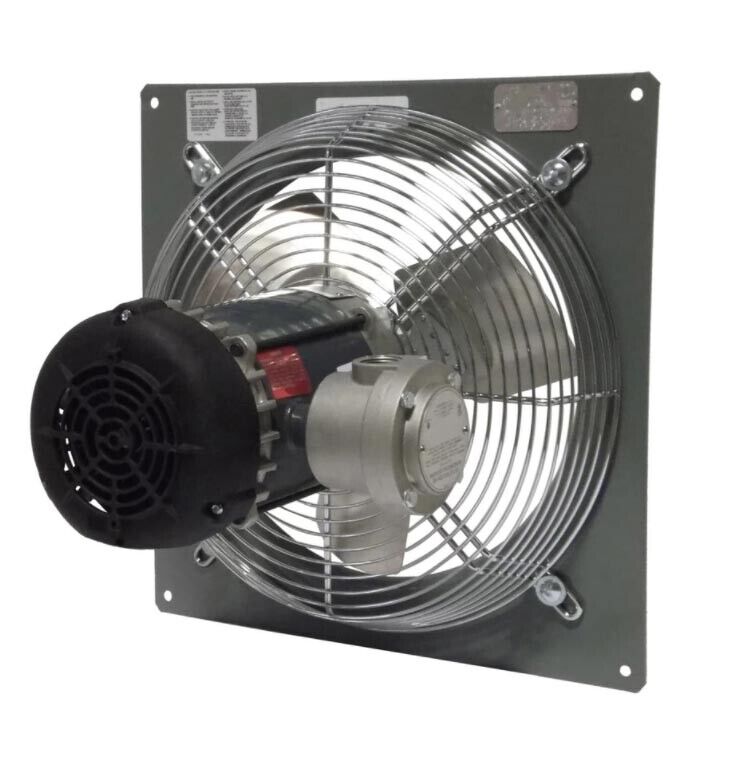

20" Panel Explosion Proof Exhaust Fan - 1 Speed - 3640 CFM - 208/ 230 / 460 V
20" Panel Explosion Proof Exhaust Fan - 1 Speed - 3640 CFM - 208/ 230 / 460 V
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT1032
Condition: New
Description: 20" Panel Explosion Proof Exhaust Fan - 1 Speed - 3640 CFM - 208/ 230 / 460 Volts - 3 Phase
This series of fan is available in various size, voltage, and phases.
Please inquire for assistance
Description & Specification:
Blade Diameter (in): 20"
CFM: 3,640
Volts: 208 / 230 / 460
Phase: 3
Drive: Direct
Amps: 1.4
HP: 1/3
RPM: 1,725
Speed: 1
Hertz: 60

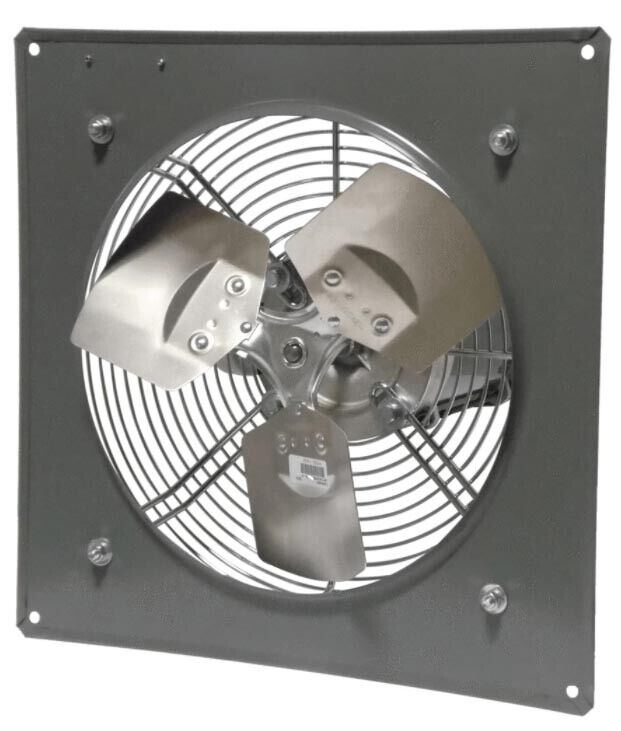

Please Note: Blades shown in the photos are a stock photo - Blade quantity will vary
Optional: Speed Controller - NOT INCLUDED - Please Inquire
Optional: Moisture Proof Thermostat - NOT INCLUDED - Please Inquire
Optional: Rain Hood - NOT INCLUDED - Please Inquire
Optional: Outdoor Shutter - NOT INCLUDED - Please Inquire
Please Allow 2 weeks for manufacturing
Please allow an additional 2 weeks for summer seasonal demand
Dimensions (W x D x H): 25-1/4" x 14" x 25-1/4"
Weight (lbs): 61
