Pacific Tundra

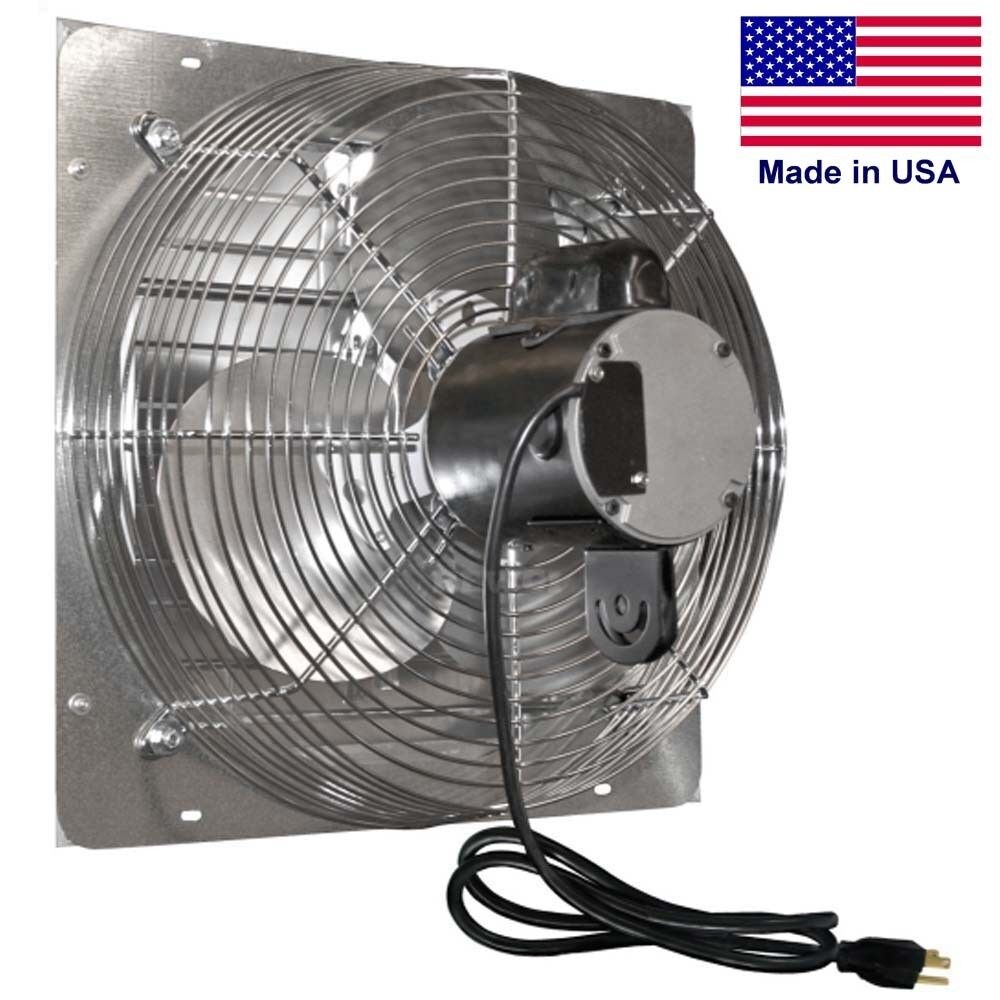

20" Shutter Exhaust Fan - 1,680 CFM - 115/230 V - 1 Ph - Variable - Direct

20" Shutter Exhaust Fan - 1,680 CFM - 115/230 V - 1 Ph - Variable - Direct

Regular price $1,180.01
Regular price Sale price $1,180.01
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number: PT201

Condition: New

Description: 20" Shutter Exhaust Fan - 1,680 CFM - 115/230 V - 1/10 HP - 1 Ph - Variable - Direct

Features: Pre-wired - Arrives assembled - Perfect for greenhouses, warehouses, etc - 9ft power cord - 115 Volts - Aluminum Shutters - Wall Mounted - Aluminum shutter includes tie bar to reduce flapping in the wind - Made in the USA

This Series of Wall Mounted Exhaust Fans Fans are Available in the Following Configurations:

Voltages: 115/230V 1 Phase, 115/230V 3 Phase, and 230/460V 3 Phase.

Flow Ranges: 630 CFM to 6,800 CFM



Description & Specification:

  • CFM High: 1,680

  • RPM: 1,709

  • Drive Type: Direct

  • Fan Blade Diameters (in): 20

  • Power Cord: Yes

  • Mount Type: Wall Mount

  • Blades: 3

  • Power Cord Length (ft): 10

  • Volts: 115

  • Phase: Single

  • HP: 1/10

  • KW: 0.115

  • Hz: 60

  • Speeds: 1

  • Watts: 115

  • Amps: 1

  • Material: Steel & Aluminum
  • Finish: Chrome / Aluminum
  • Rough Opening Dimensions (in): 20.5"  X  20.5"
  • Dimensions (D x W x H): 13" X 23" X 23"
  • Weight (lbs): 35
