Pacific Tundra

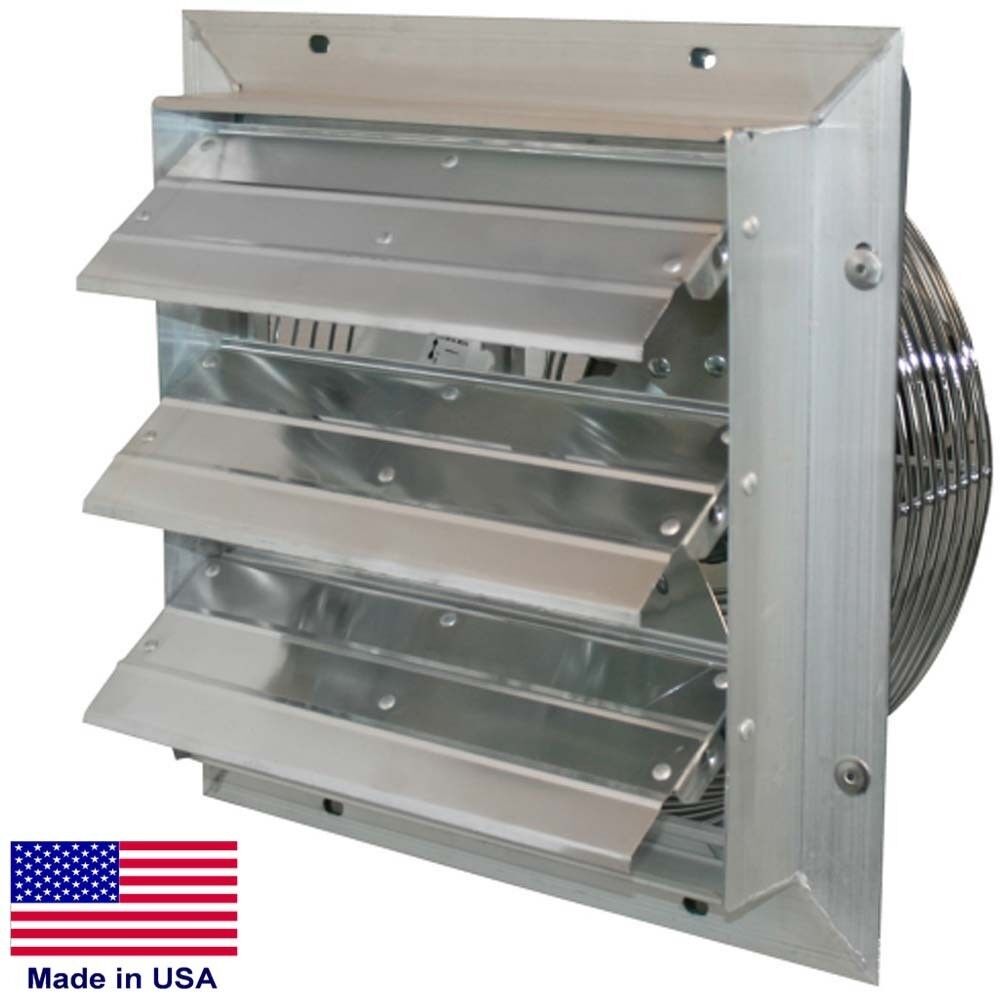

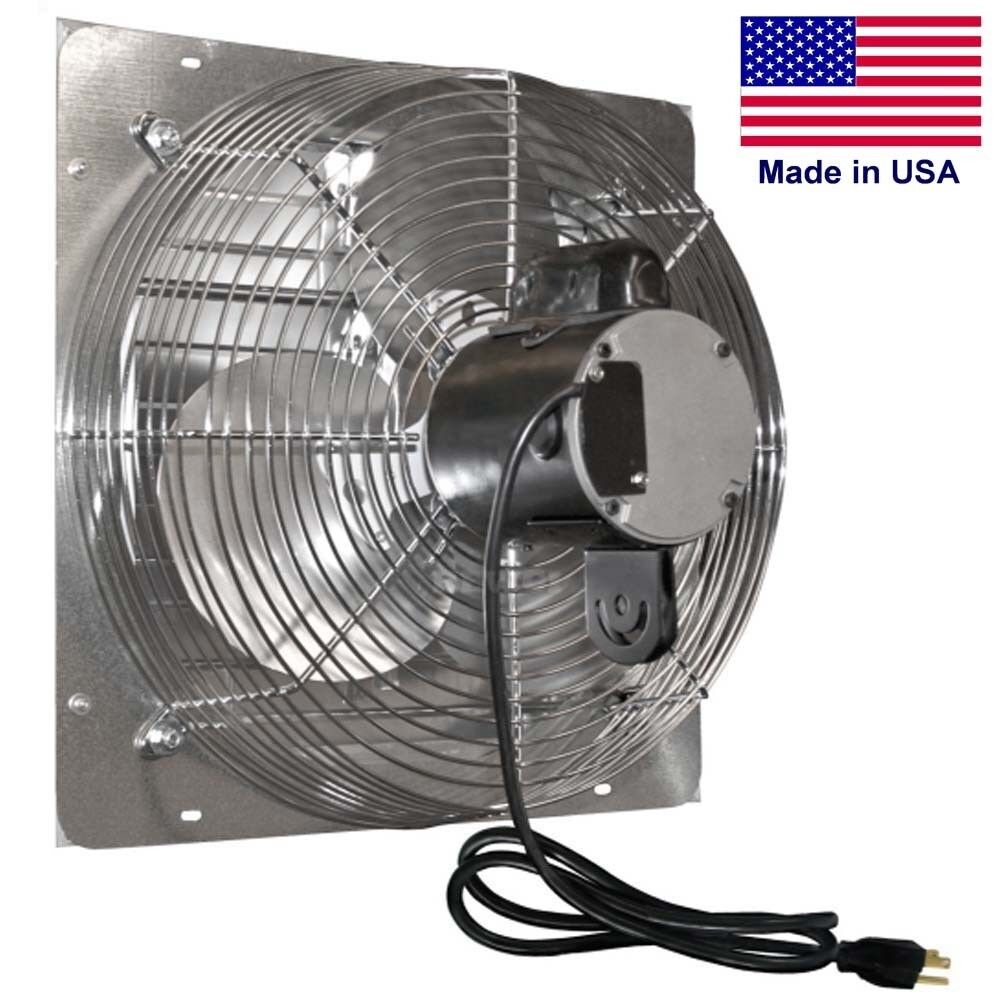

20" Shutter Exhaust Fan - 1,680 CFM - 115 V - 1/10 HP - 1 Ph - Variable - Direct

20" Shutter Exhaust Fan - 1,680 CFM - 115 V - 1/10 HP - 1 Ph - Variable - Direct

Regular price $1,180.01
Regular price Sale price $1,180.01
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number: PTWBB968405

Condition: New

Description: 20" Shutter Exhaust Fan - 1,680 CFM - 115 V - 1/10 HP - 1 Ph - Variable - Direct

Features: Pre-wired - Arrives assembled - Perfect for greenhouses, warehouses, etc - 9ft power cord - 115 Volts - Aluminum Shutters - Wall Mounted - Aluminum shutter includes tie bar to reduce flapping in the wind - Made in the USA

This Series of Wall Mounted Exhaust Fans Fans are Available in the Following Configurations:

Voltages: 115/230V 1 Phase, 115/230V 3 Phase, and 230/460V 3 Phase.

Flow Ranges: 630 CFM to 6,800 CFM



Description & Specification:

  • FINISH: Chrome / Aluminum

  • CONSTRUCTION MATERIAL: Steel & Aluminum

  • CFM HIGH: 1,680

  • RPM: 1,709

  • DRIVE TYPE: Direct Drive

  • FAN BLADE DIAMETER (in): 20

  • POWER CORD: Yes

  • MOUNT TYPE: Wall Mount

  • BLADES: 3

  • POWER CORD LENGTH (ft): 10

  • VOLTAGE: 115

  • PHASE: 1

  • HORSEPOWER (HP): 1/10

  • KILOWATTS: 0.115

  • HERTZ (HZ): 60

  • SPEEDS: 1

  • WATTS: 115

  • AMPS: 1

  • ROUGH OPENING DIMENSIONS (in): 20-1/2"  X  20-1/2"

  • DEPTH (in): 13

  • WIDTH (in): 23

  • HEIGHT (in): 23

  • WEIGHT LBS: 35
