Pacific Tundra

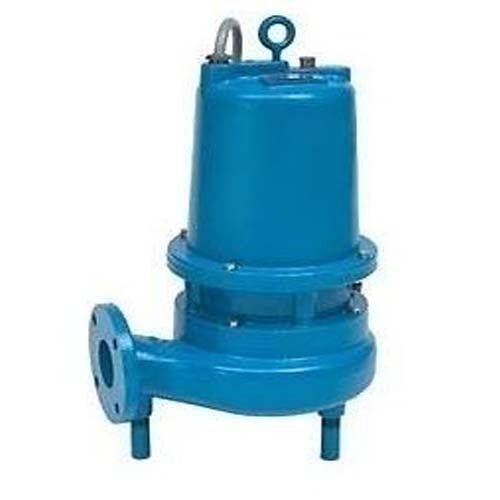

200V - 3" Submersible Sewage Pump - 19.1 Amps - 5 HP - 1750 RPM - 3 Ph 20" Cord

200V - 3" Submersible Sewage Pump - 19.1 Amps - 5 HP - 1750 RPM - 3 Ph 20" Cord

Regular price $9,059.88
Regular price Sale price $9,059.88
Sale Sold out
start_elivehelp_btncode
end_elivehelp_btncode

FREE SHIPPING OFFER

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number:



PTWBB196432



Condition:



New



Description:


3" Submersible Sewage Pump - 5 HP, 1750 RPM, 200V, 19.1 Amps



 Features:



 This sewage pump is made with heavy duty cast iron casing. Volute type casing with 4", 125#, ANSI flanged, horizontal discharge. Sewage pump is compatible with A10-40 guide rail assembly or base elbow rail systems. Cast iron, 2 vane semi-open and non-clog impeller is balanced and has pump-out vanes for mechanical seal protection. Handles solids up to 3". 300 series stainless steel keyed design. 300 series stainless steel fasteners. Continuous-duty motor is fully submerged in oil-filled chamber. High grade turbine oil surrounds motor for efficient heat dissipation. Motor offers 1750 RPM operation and is capable of temporarily running dry without damaging components. Upper and lower heavy duty ball bearing construction offers precision positioning of parts. O-ring assures positive sealing against contaminants and oil leakage. Class F insulation. Includes severe-duty, oil and water resistant 20'L power cord. Meets ASTM A48, code 30. Pump features 5 horsepower, 1750 RPM, 200 volts, 3 phase, 19.1 amps. Discharge head measures 4" and the suction and draw head measures 51'.



Contact Us:



Phone (Toll Free): 1-

Email: eBay mail or our customer service email





See similar items in our eBay Store






Description & Specification:

AMPS:  19.1

CORD LENGTH INCHES:  20

DISCHARGE HEAD SIZE INCHES:  4"

GALLONS PER MINUTE:  620

HERTZ:  60

HORSE POWER:  5

MAX. TEMPERATURE:  104 Continuous / 140 Intermittent

MAXIMUM RPM:  1750

PHASE:  3

SHAFT SEAL CONSTRUCTION:  Silicon Carbide Outer/Ceramic&Carbon Inner Seals

SOLIDS:  Up to 3" Dia.

SUCTION/DRAW HEAD FEET:  51'

VOLTAGE:  200
