Pacific Tundra

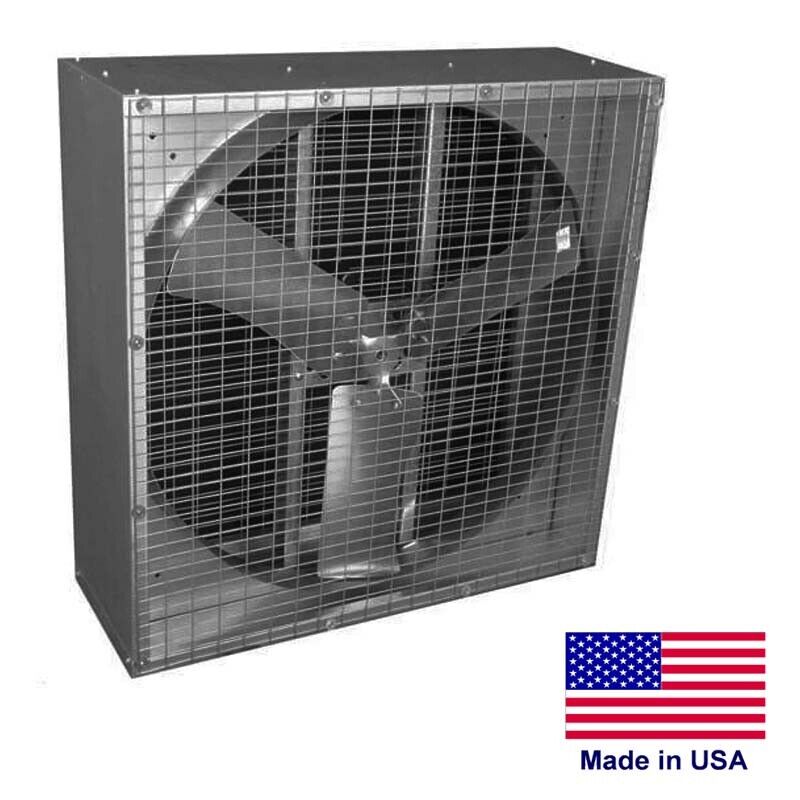

24" AGRICULTURE EXHAUST FAN - 5618 CFM - 115/230V - 1 Ph - 1/2 HP - Direct Drive

24" AGRICULTURE EXHAUST FAN - 5618 CFM - 115/230V - 1 Ph - 1/2 HP - Direct Drive

Regular price $1,744.87
Regular price Sale price $1,744.87
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number: PT24NFD370

Condition: New

Description: 24" AGRICULTURAL EXHAUST FAN - 5618 CFM - 115/230 V - 1 Ph - 1/2 HP - Belt Drive



THIS LINE OF AGRICULTURAL EXHAUST FANS IS AVAILABLE WITH THE FOLLOWING CONFIGURATIONS:

Sizes Range: 24" to 60"

Motors Horsepower: 1/2 HP to 5 Hp

Voltages: 115/230V, 1 Phase, & 230/460V, 3 Phase

CFM Ranges from 2,501 to 55,000

We manufacture and offer a wide range of exhaust fans and configurations - please inquire


Description & Specification:

Galvanized components and wire guards ensures longevity

OSHA Compliant guards on front and back of the unit

Eyebolt holes provies hanging options of the cabinet

Includes: Fans and Hanging Bracket

Blade Size (in): 24"

Volts: 115 / 230

Phase: Single

CFM: 5,618

HP: 1/2

Amps: 5.6 / 2.8

Watts: 18.6

dBA: 73.5

Hertz: 60

Motor Type: Totally Enclosed

Drive: Direct

Speeds: 1

Blades: 3

Blade Type: Aluminum

Cabinet Material: Galvanized Steel

Optional: Galvanized Weather Hood with Birdscreen - Please Inquire

Optional: Water/Moisture Proof Thermostat - Please Inquire

Please Note: This unit is built to order - Please allow 1 to 2 weeks for manufacturing

Rough Opening (in): 30" x 30"

Dimensions (in): 29-1/4" x 14-1/2" x 29-1/4"

Weight (lbs): 88

Warranty: 1 Year

Made in the USA
