24" Exhaust Duct Fan - 9525 CFM - Belt Drive - 2HP - 6 Blade - 3PH - 230/460V
24" Exhaust Duct Fan - 9525 CFM - Belt Drive - 2HP - 6 Blade - 3PH - 230/460V
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PTWBB1508582
Condition: New

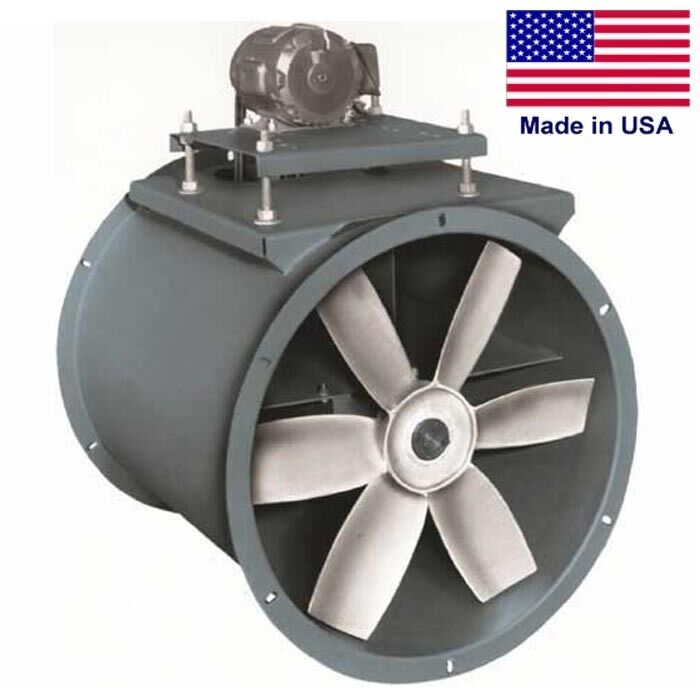

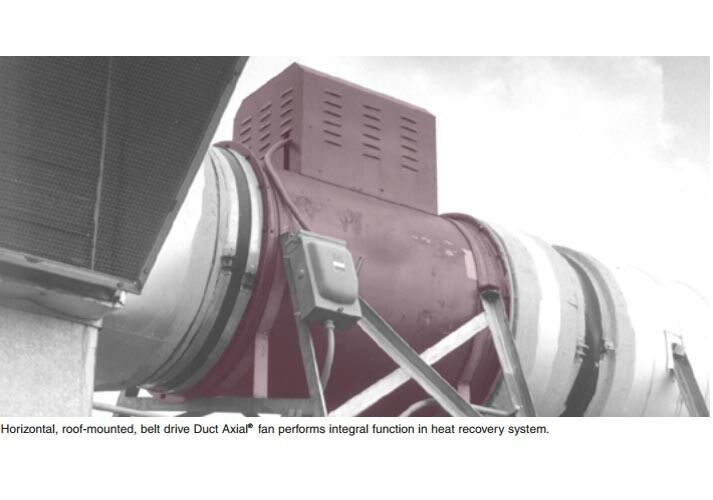

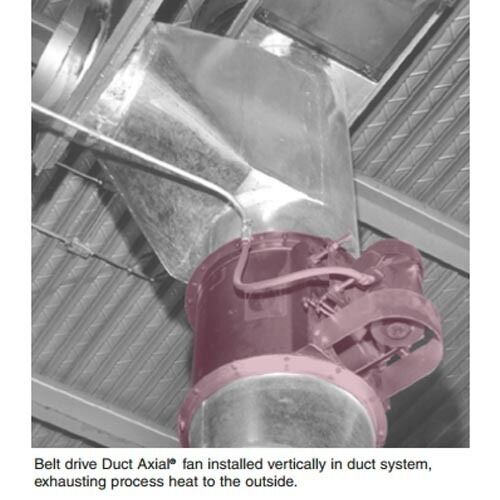

Description: 24" Exhaust Duct Fan - 9525 CFM - Belt Drive - 2HP - 6 Blade - 3PH - 230/460V
Features: 24" Blade diameter - Duct Fan - Covers a wide variety of indoor and outdoor applications - TEFC (Totally Enclosed Motor) - Shaft seal and slinger are included - AMCA Air certified performance - Cast aluminum propeller - 230/460 Volts - 9,525 CFM - Belt Driven - 2 Hp - 6 Blades - 3 Phase - Proudly Made in the USA with only commercial grade material.
This series of commercial exhaust fan is available in a variety of specifications.
Please contact us for assistance finding the right fan for your application.
PLEASE NOTE: This unit is built to order and will require 5 to
8 business days for manufacturing and delivery.
Description & Specification:
FAN SIZE INCHES: 24"
FAN TYPE: Belt Drive Duct Fan
VOLTAGE: 230/460
BLADES: 6
A: 24 - 7/8
B MAX: 29 - 1/8
C: 26 - 7/8
D MAX: 2
E: 7GA
F: 31"
G: 10GA
H: 39 - 7/8
J: 7/16 X 3/4
K: 6
DBA @ 5 FT: 88
HORSEPOWER (hp): 2
CFM @ 0" STATIC PRESSURE: 9,525
MAX AIR FLOW (@ FREE AIR): 1.25
MODIFIED MAX OPERATING TEMPERATURE: 350
MOTOR FRAME MAXIMUM: 215T
MOTOR FRAME MINIMUM: 56
PEAK FAN POWER INPUT (BHP): 2.2
PHASE: 3
RPM: 1,750
STANDARD MAXIMUM OPERATING TEMPERATURE: 200
WEIGHT STEEL: 231 LBS
WARRANTY (Years): 1
Optional: Guards - Offers protection on intake or discharge side - Available in steel only - Please inquire .
Optional: Companion Flanges - Drilled to fit the flanges of the fan; allows easy installation - Please inquire .
Optional: Belt Guard - Covers motor sheave and belts outside fan housing. Steel construction - Please inquire .
Optional: Motor Cover and Belt Guard - Designed to fit all belt drive duct axial fans. Covers are vented. Horizontal or vertical mounting - Please inquire .
Optional: Inlet Bell - Spun inlet orifice bell may be used in place of the inlet duct in installations where no duct work precedes the fan - Please inquire .
Optional: Protective Coating - For corrosive applications - Please inquire .
Optional: Access Door - Hinged, quick release latches on access door allows for maintenance of internal parts. Standard position for access door of belt drive fans is at 6 o'clock when the motor is at 12. For direct drive units, standard position is at 10 o'clock - Please inquire .
Optional: Vibration Isolators - Rubber-in-shear or spring type isolators - Please inquire .
Optional: Mounting Feet - Bolted to the inlet and discharge flanges, mounting feet allow position of the fan on the floor, ceiling, wall, or platform. Can be used with vibration isolators - Please inquire .
Optional: Shaft Seal and Slinger - These should be used when fans are placed in corrosive atmospheres which warrant protective coating and/or stainless steel shafting or hardware. Seal is not gas tight (Note: shaft seal, cover plate and neoprene slinger are standard on aluminum belt duct fans) - Please inquire
