Pacific Tundra

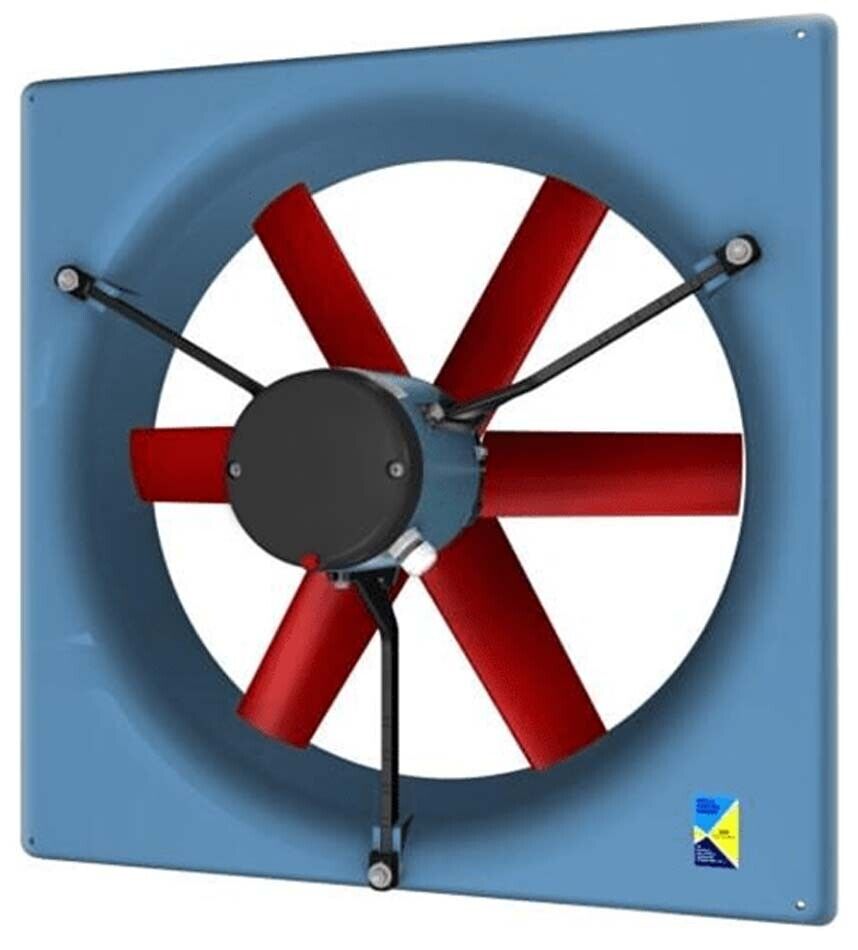

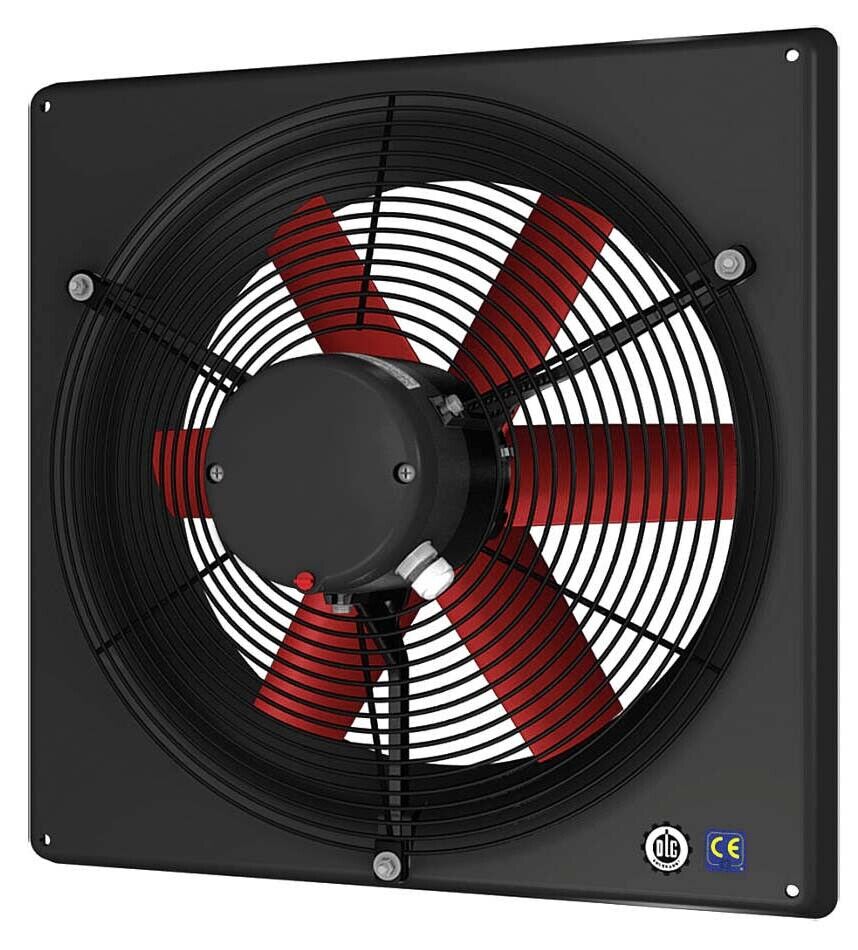

24" EXHAUST FAN - Corrosion Resistant - 7240 CFM - 230V/460 Volts - 3 Ph - 1 HP

24" EXHAUST FAN - Corrosion Resistant - 7240 CFM - 230V/460 Volts - 3 Ph - 1 HP

Regular price $2,822.95
Regular price Sale price $2,822.95
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number: PT1048

Condition: New

Description: 24" EXHAUST FAN - Corrosion Resistant - 7,240 CFM - 230/460 Volts - 3 Phase - 1 HP

Features: Can be installed to the side of buildings - Perfect for agricultural, factories, and building applications - Speed Controllable - Made for continuous use - Corrosive resistant - Can be used in outdoor or wet environments - Class "F" insulation - Ambient temperature rating of 140 F

 Please Note: This unit is built to order
Please allow 10 to 15 business days to manufacture and ship


Description & Specification:

Includes: Exhaust Fan

Intake Grill Material: Steel

Panel Material: Fiberglass Poly Composite

Blade Material: Polypropylene

Blade Size (in): 24"

Blades: 5

CFM: 7,240

Volts: 230/460

Phase: 3

HP: 1

Amps: 1.3

Watts High: 700

Speeds: Variable

RPM: 1,000

Hertz: 60

Drive: Direct

Motor Type: Totally Enclosed

Decibels (dBA): 55

Optional: Exhaust Fan Controller (Please Inquire)

Optional: Two Speed Switch (Please Inquire)

Optional: Mechanical Thermostat (Please Inquire)

Optional: Electric Manual Speed Controller (Please Inquire)

Optional: Electric Automatic Speed Controller (Please Inquire)

Dimensions (in): 32" x 15.5" x 31.5"

Weight: 55 lbs

Warranty: 1 Year
