24" EXHAUST PANEL FAN - 7,090 CFM - 115/230 Volt - 3/4 Hp - 1 Phase - TEFC
24" EXHAUST PANEL FAN - 7,090 CFM - 115/230 Volt - 3/4 Hp - 1 Phase - TEFC
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT824341
Condition: New
Description: 24" EXHAUST PANEL FAN - 7,090 CFM - 115/230 Volt - 3/4 Hp - 1 Phase - TEFC
Features: Heavy Duty Welded Motor and Bearing Support Structure - Relubricatable Bearings - Industrial TEFC Motor - Optionally Available in Explosion Proof/Hazardous Location Configuration - Available Alternately as an Intake Fan - Made in the USA.
This Series of Exhaust / Panel Fans are Available in the Following Configurations:
Diameters: 24" through 72"
CFM Ranges: 4,900 to 73,203
Motor Hp: 1/4 Hp to 15 Hp
Motor RPMs: 870, 1,140, 1,725 & 3,450
Voltages: 115/230V & 208-230/460V
Amp Draws: 0.7 to 58
Phase: 1 & 3
Drive Systems: Belt & Direct Drive
Available Options: Front and Rear OSHA Compliant Guards, Aluminum Gravity Exhaust Shutters, Motorized Exhaust and Intake Shutters, Fan and Shutter Mounting Box, Weather/Rain Hood with Birdscreen and explosion proof/hazardous location configurations available
Questions? Give our Customer Service Department a Call Toll Free at
Description & Specification:

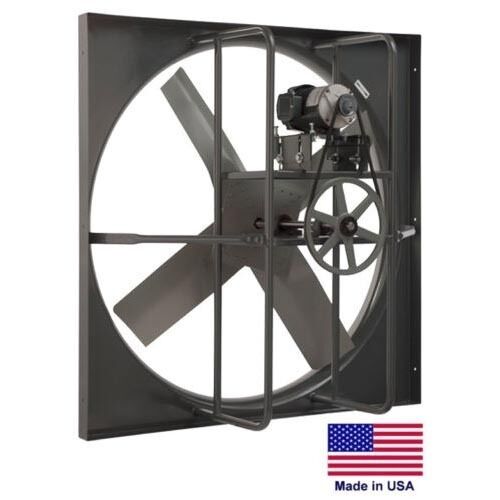

· Industrial Heavy Duty 24" Belt Drive Exhaust/Panel Fan
· Our line of USA made exhaust/panel fans are designed for continuous operation and recommended for use industrial and commercial settings such as manufacturing and assembly facilities, mills, foundries, factories and similar applications. This line of cooler fans is also available in explosion proof/hazardous location configurations for use in paint shops and chemical processing facilities and similar
· Features: heavy duty 4-blade fabricated steel propellers, heavy gauge steel construction, industrial grade continuous duty TEFC and TEAO motors, available in 115/230V 1 Phase or 208-230/460V 3 Phase, available in an explosion proof/hazardous location configuration
· This series of exhaust/panel fans is available in 24", 30", 36", 42", 48", 54", 60" and 72" configurations
· Application: Designed to move large volumes of ambient air. Recommended for ventilation in warehouses, manufacturing and assembly facilities, mills, foundries, factories and similar applications
· Fan Type: Exhaust/Panel - Industrial
· Blade Diameter: 24"
· Drive Type: Belt
· Motor: 3/4 Hp - TEFC
· Voltage: 115/230V
· Phase: 1
· Hertz: 60
· Speeds: 1
· CFM: 7090
· RPM: 1725
· Fan RPM: 1140
· Rough Opening Requirement: 30.25" H x 30.25 W
· Power Cord: N/A - this is a hard-wire fan. We recommend a licensed and insured electrican provide power to this fan
· Optional Item: Model PTFG - Wire Front Guard - OSHA compliant front mounted guard provides safety from contacting the propellers from the front - (please inquire Toll Free at )
· Optional Item: Model PTRG - Wire Rear Guard - OSHA compliant rear mounted guard provides safety from contacting the motor, belt drive assembly and propellers from the rear - (please inquire Toll Free at )
· Optional Item: Model PTAESMB - Aluminum Exhaust Shutter with Mounting Box - (please inquire Toll Free at )
· Optional Item: Model PTMS - Motorized Shutter Operator - allows control of the shutters via a wall switch (please inquire Toll Free at )
· Optional Item: Model PTHL - Hazardous Location/Explosion Proof (please inquire Toll Free at )

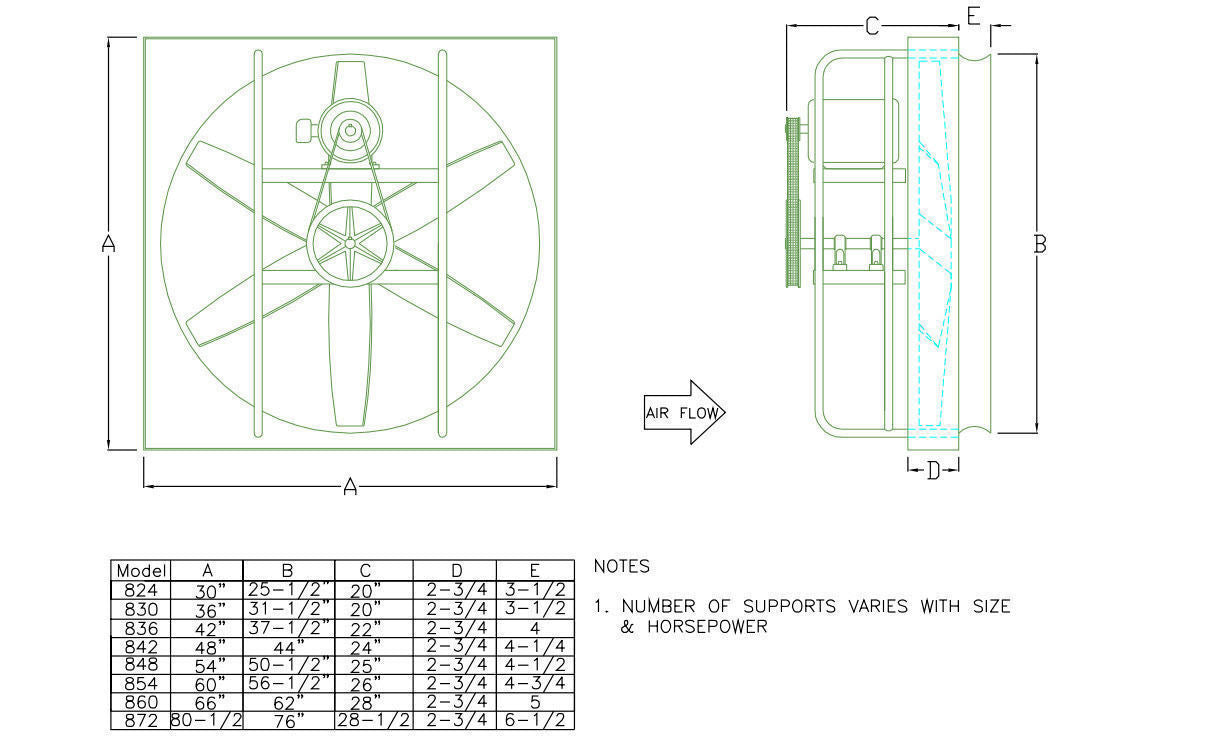

· Overall Dimensions: 30" H x 30" W x 23.25" D
· Note: We manufacture this fan to order, please allow 2 weeks for delivery
· 2 Year Warranty (Includes Parts & Labor)
· Made in the U.S.A.
