Pacific Tundra
24" Fiberglass Exhaust Fan - 8,190 CFM - 115/230V - 1 Ph - Poly Blades & Shutter
24" Fiberglass Exhaust Fan - 8,190 CFM - 115/230V - 1 Ph - Poly Blades & Shutter
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PTWB968693
Condition: New
Description: 24" Fiberglass Exhaust Fan - 8,190 CFM - 115/230V - 1 Ph - Poly Blades & Shutter

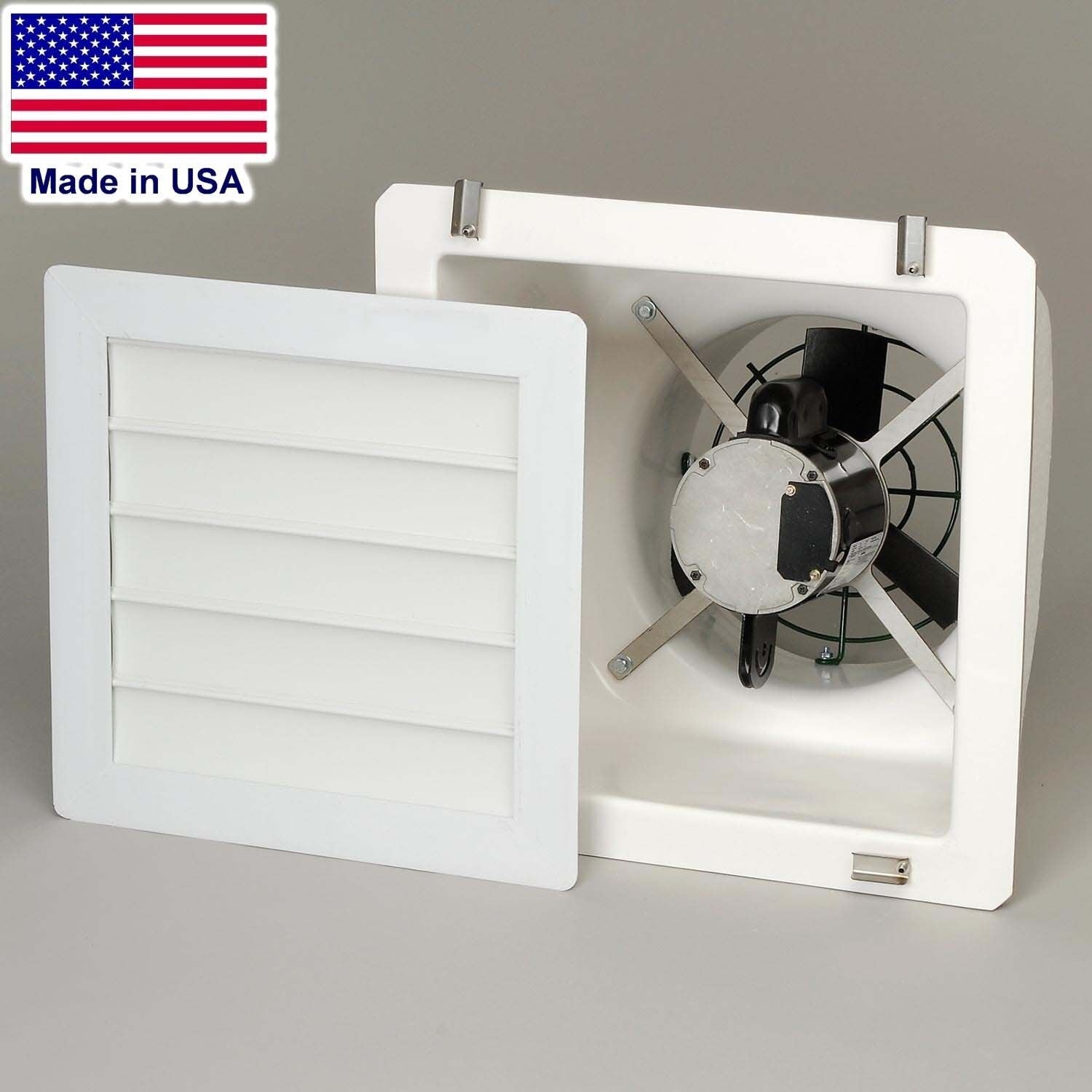

Features: This fiberglass exhaust fan features a corrosion resistant housing, poly blades, and poly shutters - Housing is gel coated which allows for user-friendly maintenance and maximized airflow - Totally Enclosed motor - Sealed ball bearings - Automatic thermal overload protection - Variable speed - Slant wall design
MADE IN THE USA
PLEASE NOTE: This unit is Built
to Order
Please allow 2
weeks for manufacturing and shipping
Description & Specification:
FAN DIAMETER: 24"
CFM: 3,110
HORSEPOWER: 1/2
AMPS: 4.8/2.4
RPM: 1725 / 525
VOLTS: 115 / 230
PHASE: 1
DRIVE: Direct

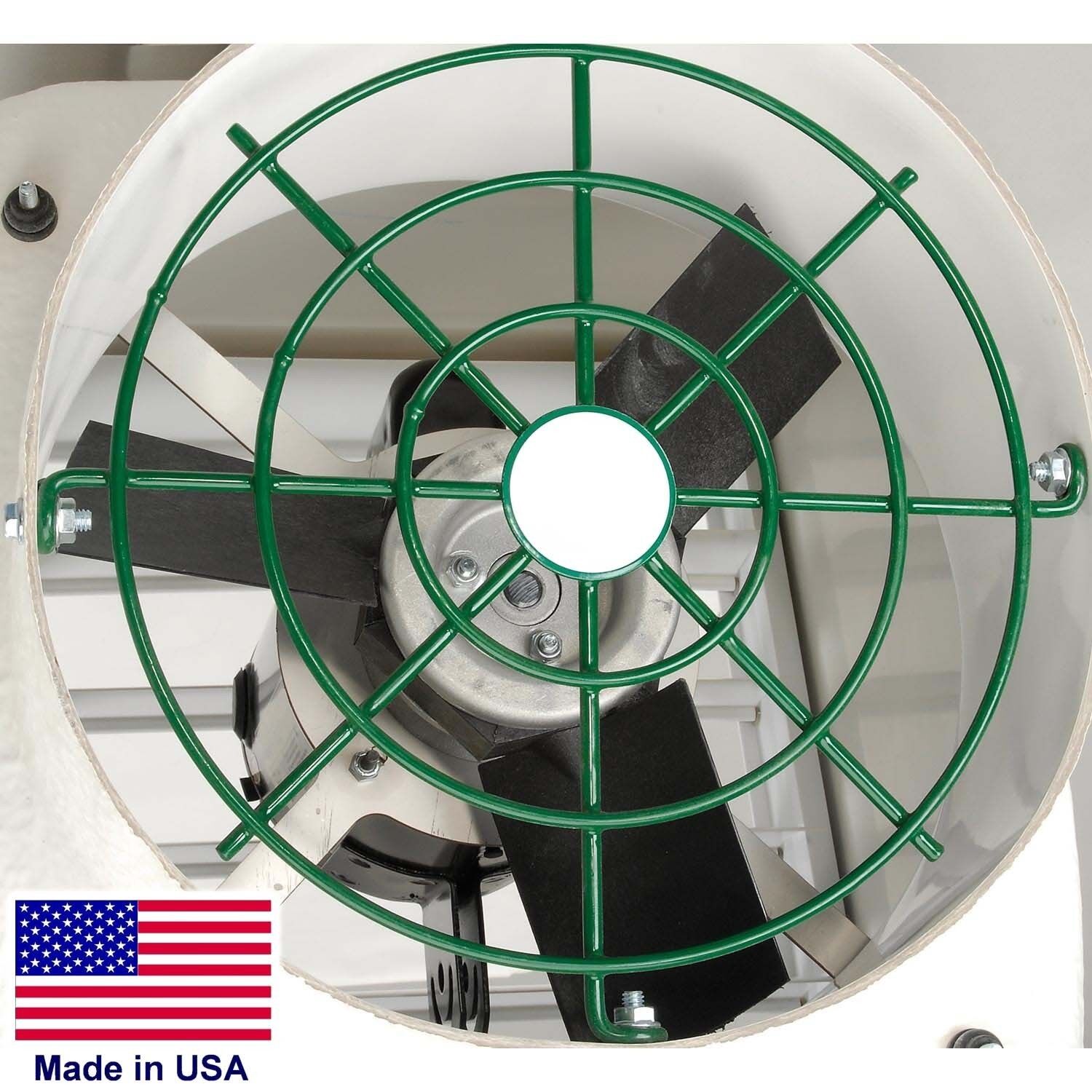

BLADE QUANTITY: 4
COLOR: White

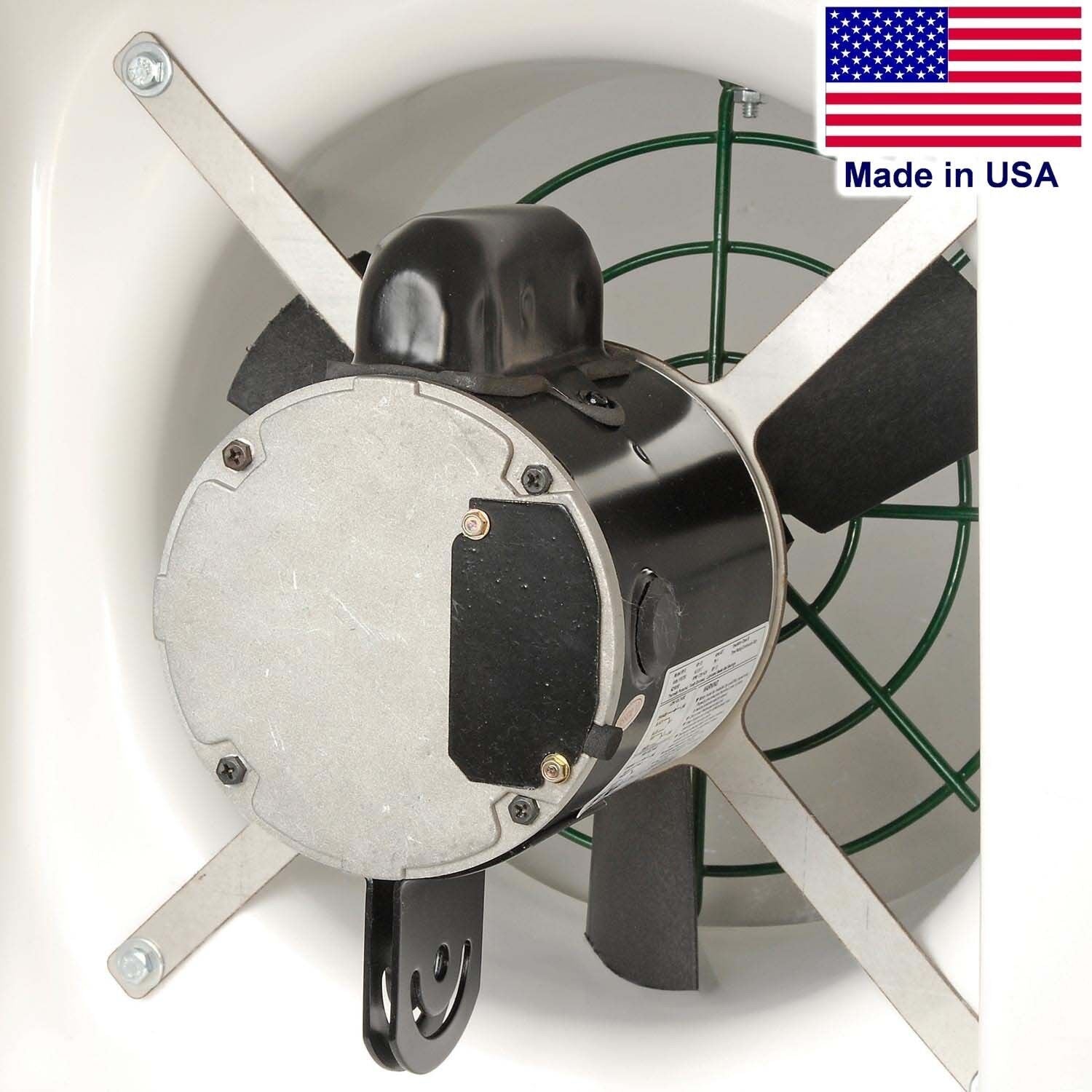

MOTOR: Totally Enclosed
VARIABLE SPEED: Yes

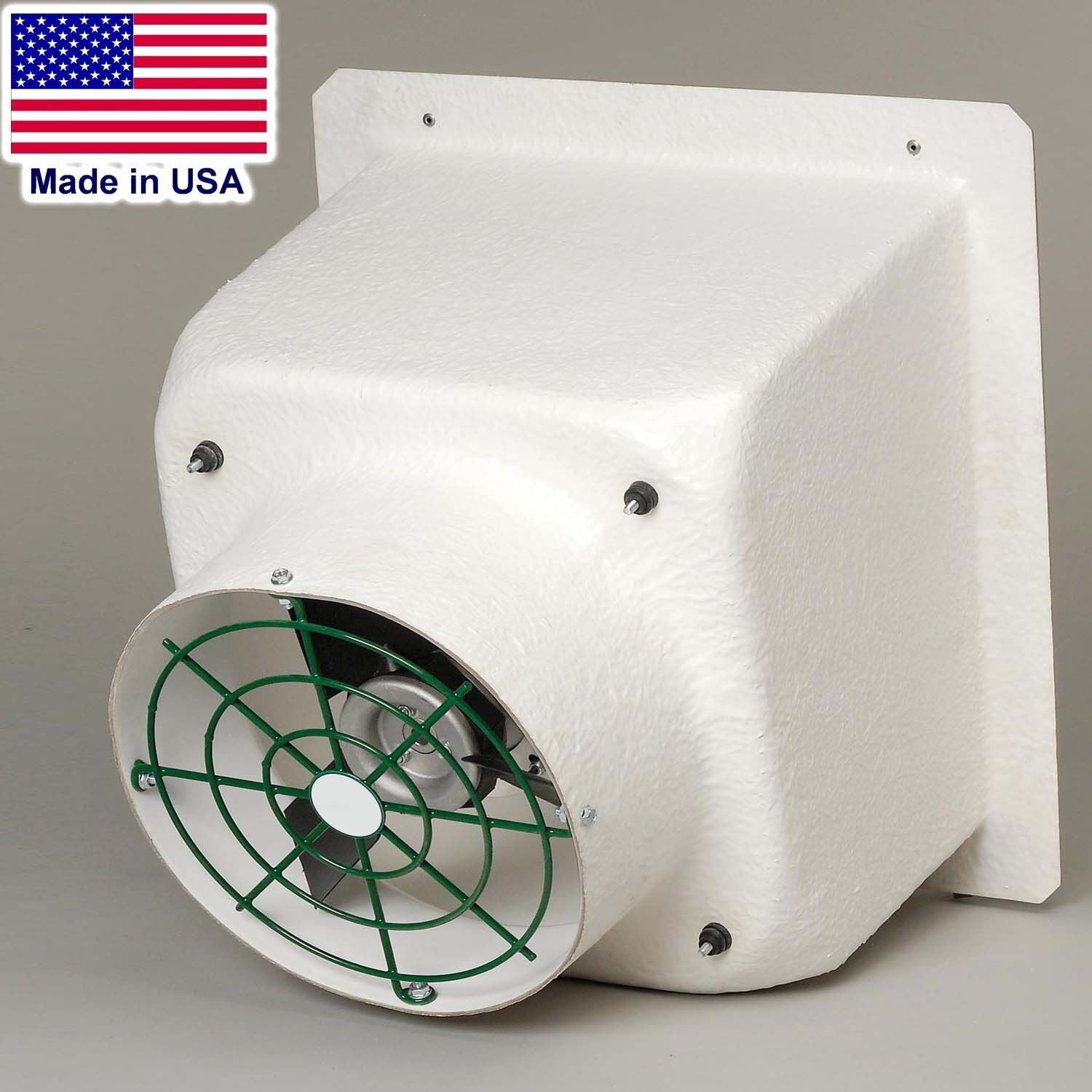

HOUSING CONSTRUCTION: Fiberglass

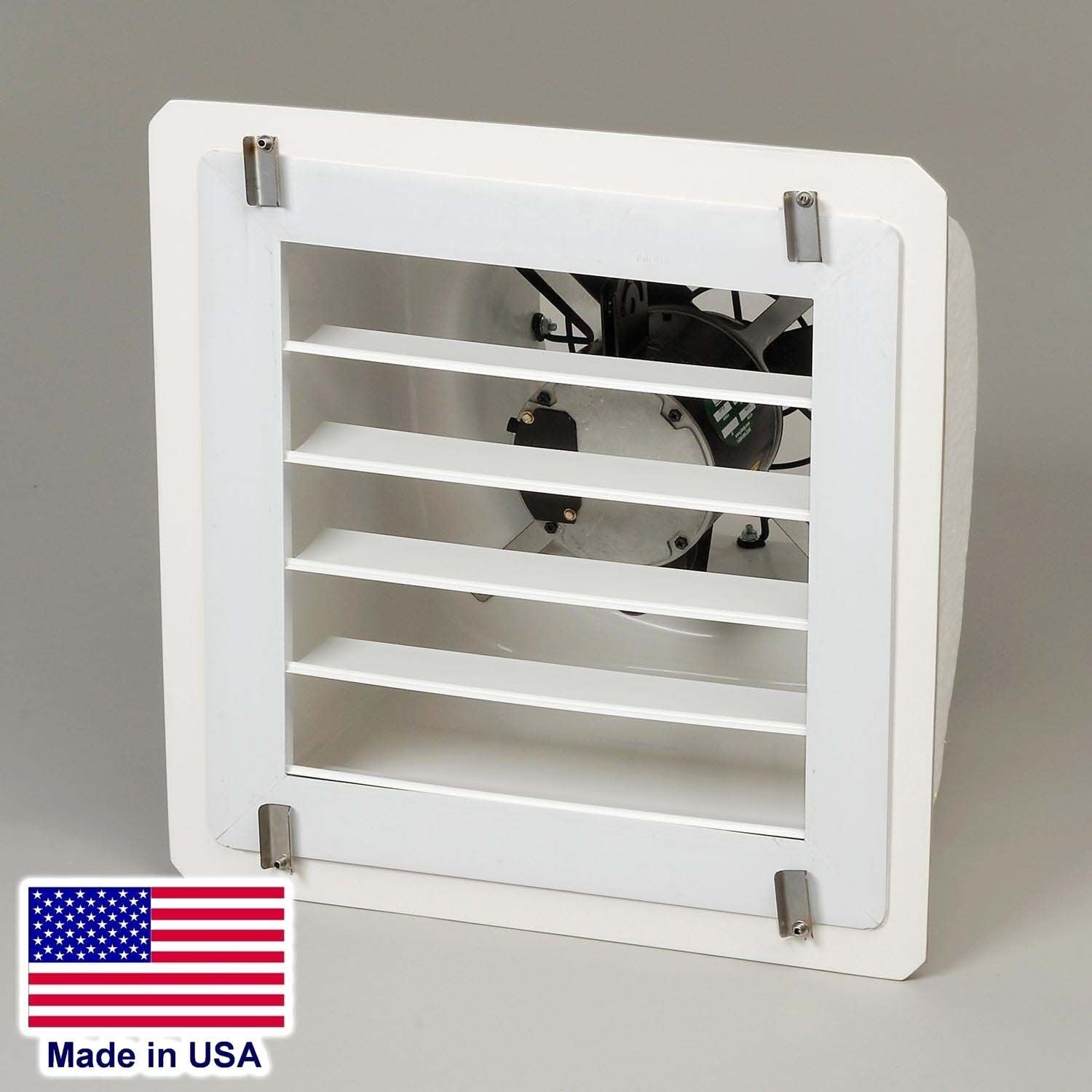

SHUTTER AND BLADE CONSTRUCTION: Poly
APPROVAL: UL & ULC Certification
EXTENDED WARRANTY: 2 Years
DIMENSIONS: 34-1/2" L x 27-1/2" W x 34-3/8" H
