Pacific Tundra

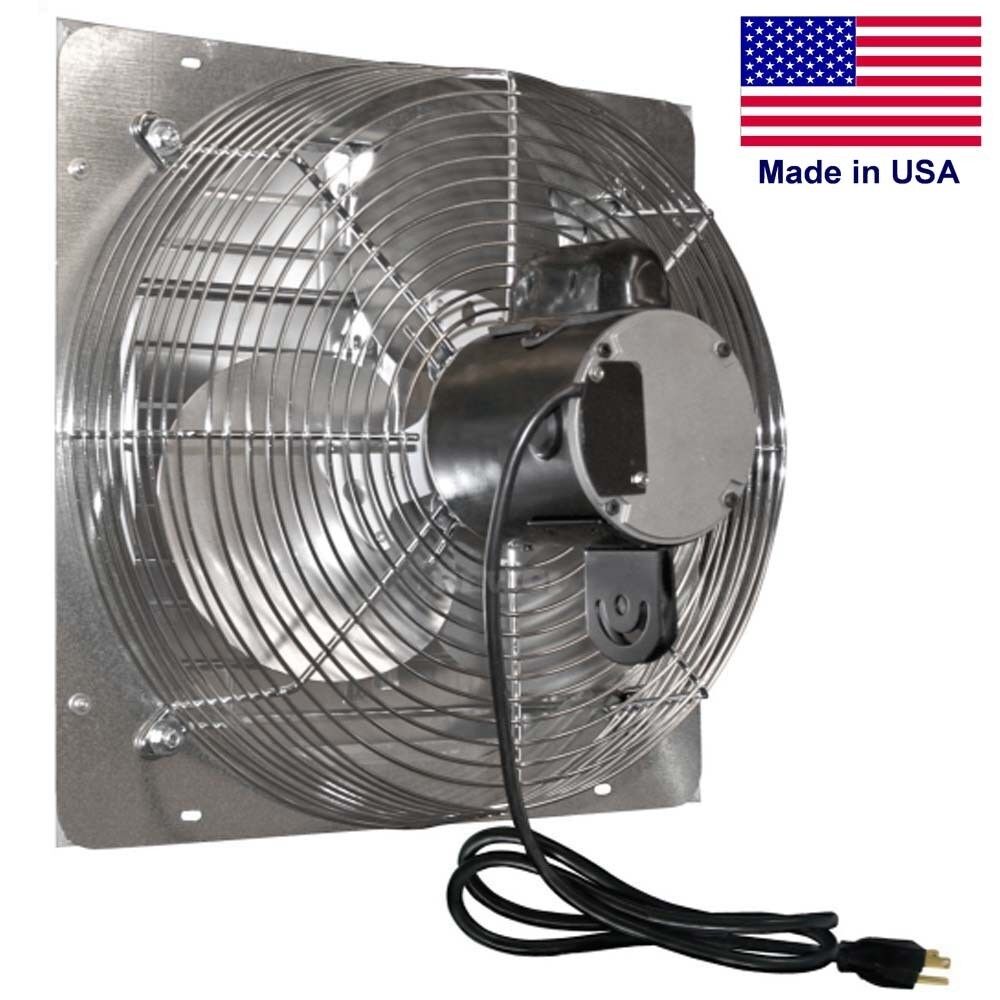

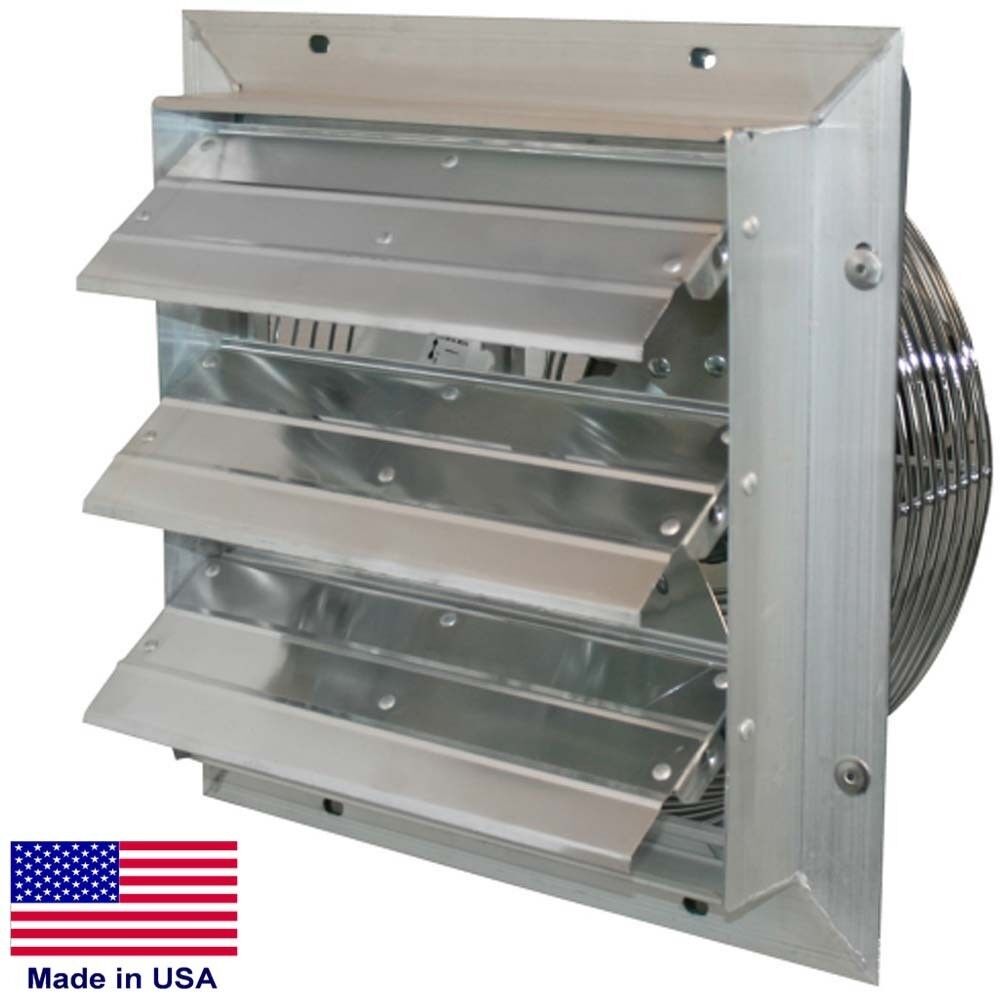

24" Shutter Exhaust Fan - 4,080 CFM - 115 Volts - 1 Ph - Variable Speed - Direct

24" Shutter Exhaust Fan - 4,080 CFM - 115 Volts - 1 Ph - Variable Speed - Direct

$942.05
$942.05
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number: PT862

Condition: New

Description: 24" Shutter Exhaust Fan - 4,080 CFM - 115 Volts - 1 Ph - Variable Speed - Direct

Features: Pre-wired - Arrives assembled - Perfect for greenhouses, warehouses, etc - 10 ft power cord - 115 Volts - Aluminum Shutters - Wall Mounted - Aluminum shutter includes tie bar to reduce flapping in the wind - Made in the USA

This Series of Wall Mounted Exhaust Fans Fans are Available in the Following Configurations:

Voltages: 115/230V 1 Phase, 115/230V 3 Phase, and 230/460V 3 Phase.

Flow Ranges: 630 CFM to 6,800 CFM



Description & Specification:

  • CFM High: 4,080

  • RPM: 1,677

  • Drive Type: Direct

  • Fan Blade Diameters (in): 24

  • Power Cord: Yes

  • Mount Type: Wall Mount

  • Blades: 3

  • Power Cord Length (ft): 10

  • Volts: 115

  • Phase: Single

  • HP: 1/2
  • Hz: 60

  • Speeds: Variable
  • Amps: 4.8

  • Material: Steel & Aluminum
  • Finish: Chrome / Aluminum
  • Rough Opening Dimensions (in): 24.5"  X  24.5"
  • Dimensions:  28.5 x 27.8 x 14.6
  • Weight (lbs): 47
