Pacific Tundra

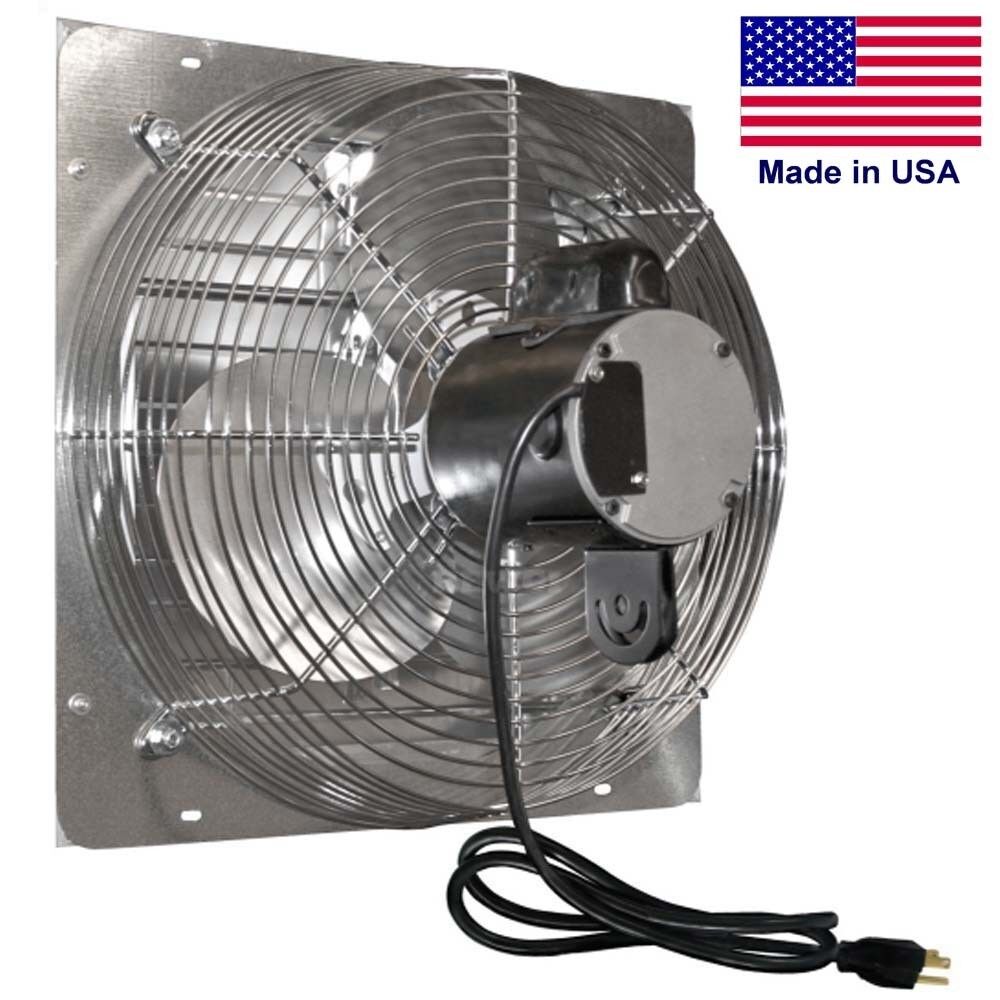

24" Shutter Exhaust Fan - 4,640 CFM - 115 V - 1/2 HP - 1 Ph - Variable - Direct
24" Shutter Exhaust Fan - 4,640 CFM - 115 V - 1/2 HP - 1 Ph - Variable - Direct
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PTWBB968407
Condition: New
Description: 24" Shutter Exhaust Fan - 4,640 CFM - 115 V - 1/2 HP - 1 Ph - Variable - Direct

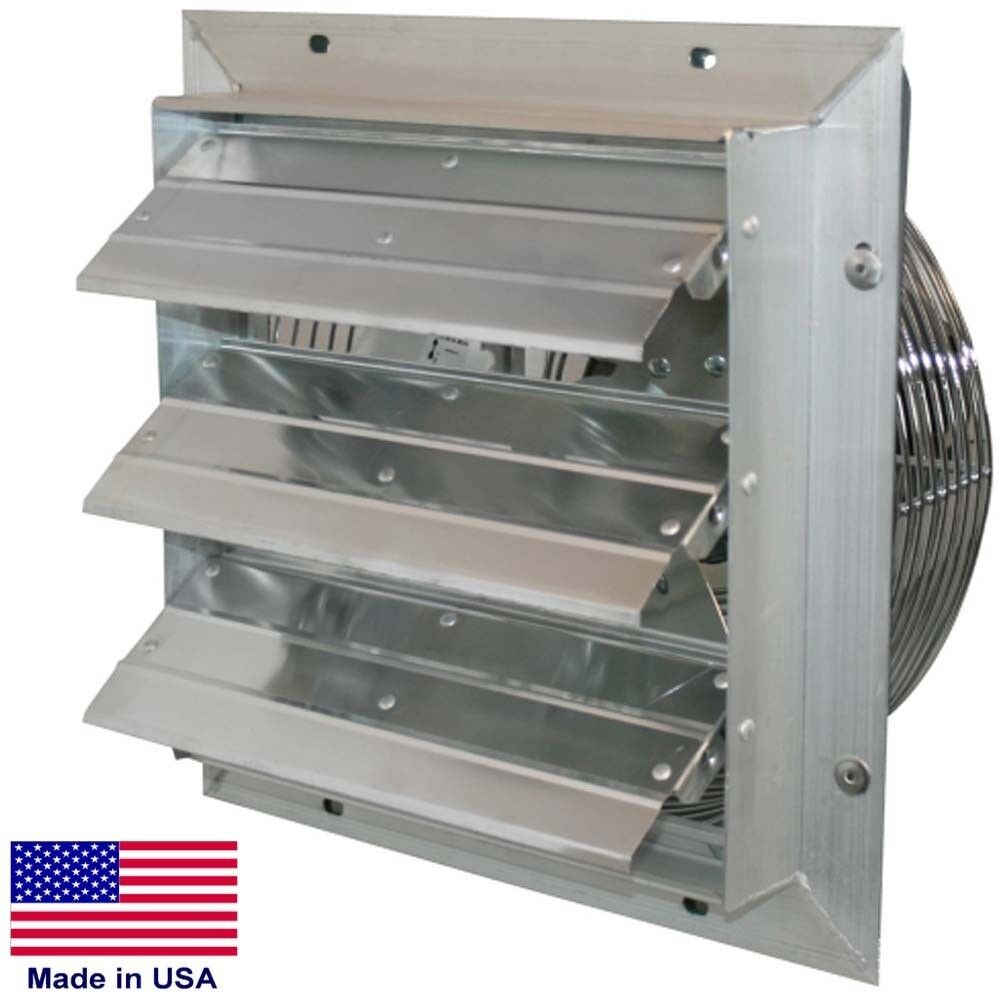

Features: Pre-wired - Arrives assembled - Perfect for greenhouses, warehouses, etc - 9ft power cord - 115 Volts - Aluminum Shutters - Wall Mounted - Aluminum shutter includes tie bar to reduce flapping in the wind - Made in the USA.
This Series of Wall Mounted Exhaust Fans Fans are Available in the Following Configurations:
Voltages: 115/230V 1 Phase, 115/230V 3 Phase, and 230/460V 3 Phase.
Flow Ranges: 630 CFM to 6,800 CFM
Description & Specification:
FINISH: Chrome / Aluminum
CONSTRUCTION MATERIAL: Steel & Aluminum
CFM HIGH: 4,640
RPM: 1,677
DRIVE TYPE: Direct Drive
FAN BLADE DIAMETER (in): 24
POWER CORD: Yes
MOUNT TYPE: Wall Mount
BLADES: 3
POWER CORD LENGTH (ft): 10
VOLTAGE: 115
PHASE: 1
HORSEPOWER (HP): 1/2
KILOWATTS: 0.552
HERTZ (HZ): 60
SPEEDS: 1
WATTS: 552
AMPS: 4.8
ROUGH OPENING DIMENSIONS (in): 24-1/2" X 24-1/2"
DEPTH (in): 13
WIDTH (in): 27
HEIGHT (in): 27
WEIGHT LBS: 55
