Pacific Tundra

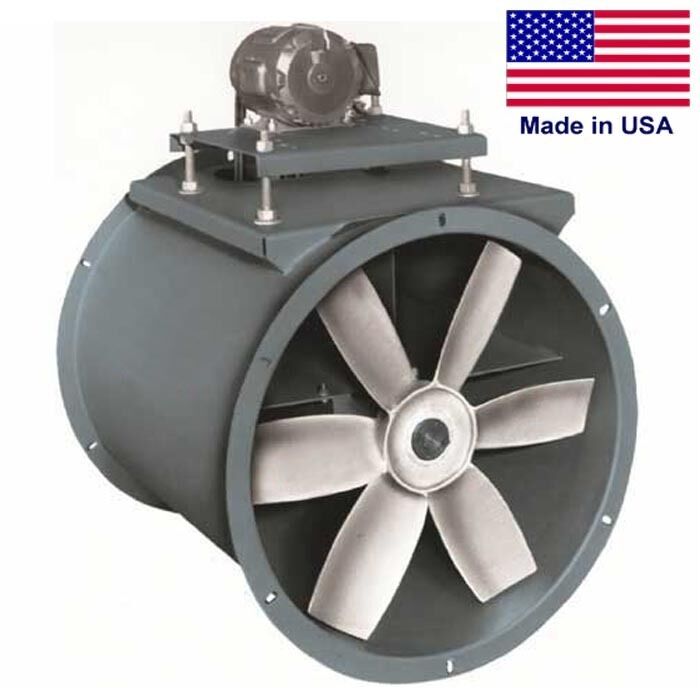

30" Exhaust Duct Fan - 14025 CFM - 230/460V - 2 HP - 6 Blade - 3 PH - Belt Drive

30" Exhaust Duct Fan - 14025 CFM - 230/460V - 2 HP - 6 Blade - 3 PH - Belt Drive

Regular price $10,272.74
Regular price Sale price $10,272.74
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number: PTWGB1508579

Condition: New

Description: 30" Exhaust Duct Fan - 14025 CFM - 230/460V - 2 HP - 6 Blade - 3 PH - Belt Drive

Features: 30" Blade diameter - Tube Axial - Covers a wide variety of indoor and outdoor applications - TEFC (Totally Enclosed Motor) - Shaft seal and slinger are included  - AMCA Air certified performance - Cast aluminum propeller - 14,025 CFM - Belt Driven - 3 Hp - 6 Blades - 3 Phase - Proudly Made in the USA with only commercial grade material.

This series of commercial exhaust fan is available in a variety of specifications.

Please contact us for assistance finding the right fan for your application.


PLEASE NOTE:
 This unit is built to order and will require 5 to 8 business days for manufacturing and delivery.



Description & Specification:

FAN SIZE INCHES: 24"

FAN TYPE: Belt Drive Duct Fan

BLADES: 6

A: 30 - 7/8

B MAX: 34 - 3/8

C: 33

D MAX: 2

E ALUMINUM: .250

E STEEL: 7GA

F: 34

G ALUMINUM: 190

G STEEL: 10GA

H: 43 - 1/4

J: 7/16 X 3/4

K: 6

DBA @ 5 FT: 88

HORSEPOWER (hp): 3

CFM @ 0" STATIC PRESSURE: 14,025

MAX AIR FLOW (@ FREE AIR): 1.25

MODIFIED MAX OPERATING TEMPERATURE: 350

MOTOR FRAME MAXIMUM: 215T

MOTOR FRAME MINIMUM: 56

PEAK FAN POWER INPUT (BHP): 3.28

PHASE: 3

RPM: 1,750

STANDARD MAXIMUM OPERATING TEMPERATURE: 200

WEIGHT ALUM LBS: 189

WEIGHT STEEL LBS: 308

WARRANTY (Years): 1

Optional: Guards - Offers protection on intake or discharge side - Available in steel only - Please inquire

Optional: Companion Flanges - Drilled to fit the flanges of the fan; allows easy installation - Please inquire

Optional: Belt Guard - Covers motor sheave and belts outside fan housing. Steel construction - Please inquire

Optional: Motor Cover and Belt Guard - Designed to fit all belt drive duct axial fans. Covers are vented. Horizontal or vertical mounting - Please inquire

Optional: Inlet Bell - Spun inlet orifice bell may be used in place of the inlet duct in installations where no duct work precedes the fan - Please inquire

Optional: Protective Coating - For corrosive applications - Please inquire

Optional: Access Door - Hinged, quick release latches on access door allows for maintenance of internal parts. Standard position for access door of belt drive fans is at 6 o'clock when the motor is at 12. For direct drive units, standard position is at 10 o'clock - Please inquire

Optional: Vibration Isolators - Rubber-in-shear or spring type isolators - Please inquire

Optional: Mounting Feet - Bolted to the inlet and discharge flanges, mounting feet allow position of the fan on the floor, ceiling, wall, or platform. Can be used with vibration isolators - Please inquire

Optional: Shaft Seal and Slinger - These should be used when fans are placed in corrosive atmospheres which warrant protective coating and/or stainless steel shafting or hardware. Seal is not gas tight (Note: shaft seal, cover plate and neoprene slinger are standard on aluminum belt duct fans) - Please inquire
