Pacific Tundra

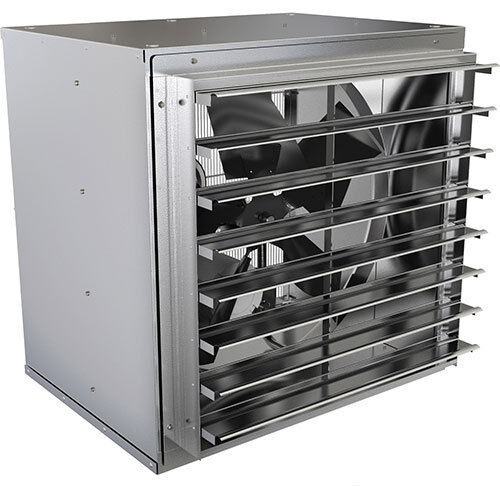

30" EXHAUST FAN - 9,535 CFM - 1 HP - 220 Volt - 3 Ph - Belt Driven - Wall Mount
30" EXHAUST FAN - 9,535 CFM - 1 HP - 220 Volt - 3 Ph - Belt Driven - Wall Mount
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PTWBB2146226
Condition: New
Description: 30" EXHAUST FAN - 9,535 CFM - 1 HP - 220 Volt - 3 Ph - Belt Driven - Wall Mount
Features: Wall mount - Fully assembled - Wall collar - Guard - Damper - Easy installation - Galvanized steel construction - Powdercoated propellers - Belt driven - Designed for light to medium applications - NOT to be used in explosion proof application.
This Series of Wall Mounted Exhaust Fans Fans are Available in the Following Configurations:
Voltages: 115, 230, or 115/230
Flow Ranges: 5,230 CFM to 17,540 CFM
Description & Specification:
BLADE DIAMETER (in): 30"
CERTIFICATIONS: AMCA Air, AMCA Sound, cULus
CFM: 9,535
AMPS: 3.2/1.6
COLOR FINISH: Silver
CONSTRUCTION: Galvanized Steel
DRIVE TYPE: Belt Driven
HERTZ (HZ): 60
HORSEPOWER: 1
VOLTS: 220
PHASE: 3
DIMENSIONS (L x W x H): 34-1/4" L x 34-1/4 W" x 31-1/4" H
WEIGHT LBS: 176
