Pacific Tundra

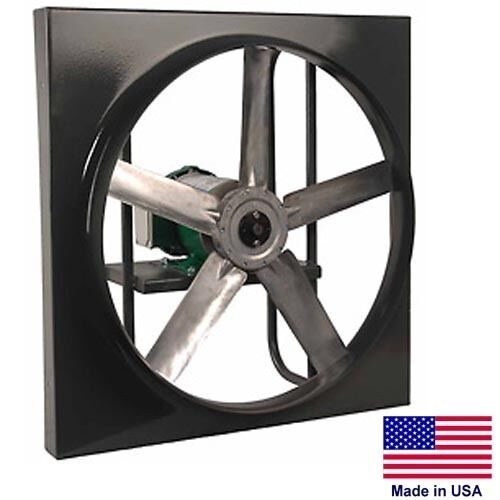

30" Exhaust Fan - Direct Drive - 15,230 CFM - 3 HP - 230/460 Volts - 3 Phase

30" Exhaust Fan - Direct Drive - 15,230 CFM - 3 HP - 230/460 Volts - 3 Phase

Regular price $6,150.93
Regular price Sale price $6,150.93
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number: PTWBB177858

Condition: New

Description: 30" Exhaust Fan - Direct Drive - 15,230 CFM - 3 HP - 230/460 Volts - 3 Phase

Features: Primarily used in power plants, parking garages, warehouses, and general ventilation applications - TEFC Motor - 3 phase - Direct Drive - 15,230 CFM.



This series of commercial exhaust fan is available in a variety of specifications.

Please contact us for assistance finding the right fan for your application.


PLEASE NOTE:
 This unit is built to order and may require 14 to 21 business days for manufacturing and delivery. Please inquire for lead times.



Description & Specification:

COMMERCIAL: Yes

INDUSTRIAL: Yes

CFM HIGH: 15,230

CFM LOW: 2,300

CONSTRUCTION: Steel
DRIVE TYPE: Direct Drive
FAN DIAMETER (in): 30"

HERTZ (HZ): 60
HORSEPOWER (hp): 3
IMPELLER CONSTRUCTION: Cast Aluminum
MOTOR ENCLOSURE: Totally Enclosed
PHASE: 3
RPM HIGH: 1,750
VOLTAGE: 230 / 460

LENGTH (in): 36"
WIDTH (in): 15"

HEIGHT (in): 36"

WEIGHT (lbs): 197

OPTIONAL: Epoxy or polyurethane coatings - PLEASE INQUIRE
OPTIONAL: Gravity shutters PLEASE INQUIRE
OPTIONAL: Motor operated shutters - PLEASE INQUIRE
OPTIONAL: Bird screen for shutters - PLEASE INQUIRE
OPTIONAL: 304 stainless steel construction - PLEASE INQUIRE
OPTIONAL: 316 stainless steel construction - PLEASE INQUIRE
OPTIONAL: Motor side guard - PLEASE INQUIRE
OPTIONAL: Propeller side guard PLEASE INQUIRE
OPTIONAL: Mounting boot – interior or exterior mount - PLEASE INQUIRE
OPTIONAL: Special duty motors available - PLEASE INQUIRE
OPTIONAL: Weather hood complete with bird screen - PLEASE INQUIRE
OPTIONAL: Reverse flow construction - PLEASE INQUIRE

WARRANTY: 1 Years
