Pacific Tundra

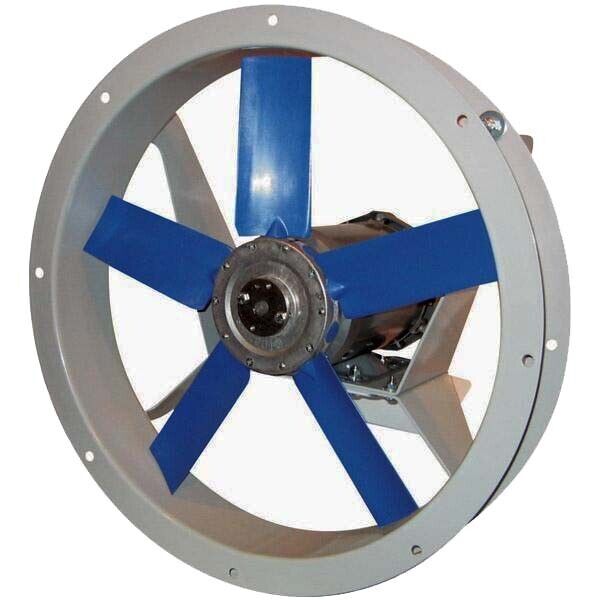

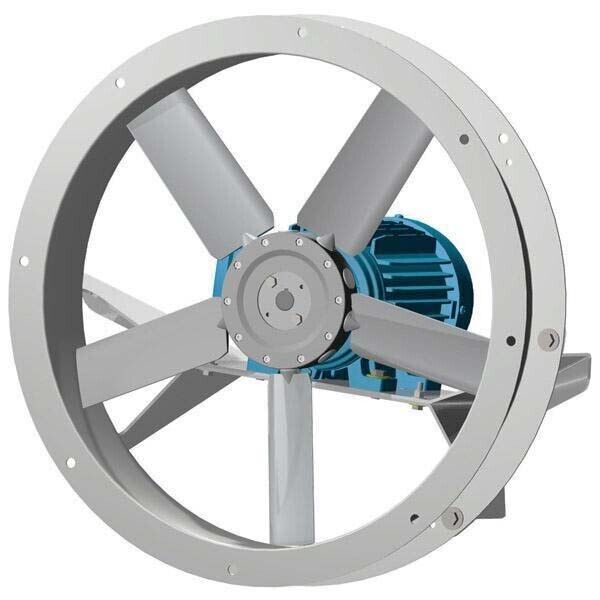

30" Flange Mounted SUPPLY FAN - 5,000 CFM - 230/460 Volt - 3 Phase - 3 HP - TEFC

30" Flange Mounted SUPPLY FAN - 5,000 CFM - 230/460 Volt - 3 Phase - 3 HP - TEFC

Regular price $3,477.48
Regular price Sale price $3,477.48
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number: PT1020A

Condition: New

Description: 30" Flange Mounted SUPPLY FAN - 5,000 CFM - 230/460 Volts - 3 Phase - 3 HP - TEFC

Features: Constructed of commercial grade materials -

Baked polyester powder coated finish - Direct drive - Cast aluminum impeller - TEFC Motor

 Please Note: This unit is built to order
Please allow 10 to 15 business days to manufacture and ship


Description & Specification:

Includes: Supply Fan

Blade Size (in): 16"

CFM: 5,000

Volts: 230/460

Phase: 3

HP: 3

RPM: 1,750

Hertz: 60

Drive: Direct

Motor Type: TEFC

Decibels: 81 dBA

Blades: 10

Blade Material: Cast Aluminum

Constructed Material: Steel

Optional: GRP (Polypropylene) Impeller - Please Inquire

Optional: Fully-Reversible Design - Please Inquire

Optional: Customized Coating (Please Inquire)

Optional: Mounting Panel (Please Inquire)

Optional: Motor Side Guard (Please Inquire)

Optional: Reverse Flow Construction (Please Inquire)

Optional: Housing Yoke with Mounting Bracket (Please Inquire)

Optional: AMCA Spark Resistant Construction (Please Inquire)

Optional: Explosion Proof Motor (Please Inquire)

Dimensions (in): 34.5" x 20.5" x 34.5"

Warranty: 1 Year
