34" TUBE AXIAL DUCT FAN - 13,695 CFM - 230/460V - 3 Phase - Belt Driven - 1.5 Hp

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PTWAB341123

Condition: New

Description: 34" TUBE AXIAL DUCT FAN - 13,695 CFM - 230/460V - 3 Phase - Belt Driven - 1.5 Hp

This Series of Direct Drive Tube Axial Duct Fans are Available in the Following Configurations:

Diameters: 12" through 42"

CFM Ranges: 1,444 to 26,900

Motor Hp: 1/4 Hp to 5 Hp

Motor RPMs: 1,725 & 3,450

Voltages: 115/230V & 208-230/460V

Amp Draws: 2.1 to 20

Phase: 1 & 3

Drive Systems: Belt & Direct Drive

Available Options: Companion Flanges, Horizontal Support Legs, Horizontal or Vertical Support Brackets, OSHA Compliant Inlet and Outlet Guards, Inspection/Maintenance Doors, Epoxy or Urethane Coatings and explosion proof/hazardous location configurations available

Questions?  Give our Customer Service Department a Call Toll Free at

Description & Specification:

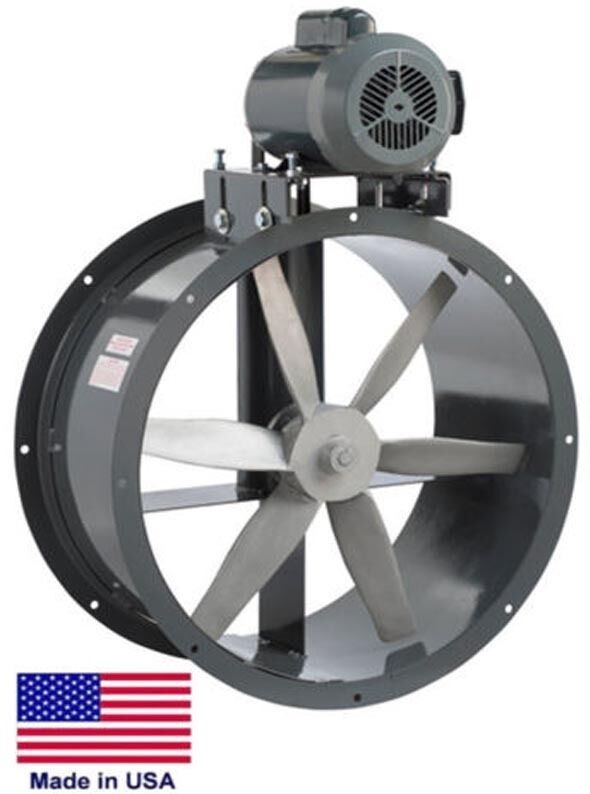

·         Industrial Heavy Duty 34" Belt Drive Tube Axial Duct Fan

·         Our line of USA made tube axial duct fans are designed for continuous operation and recommended for use in manufacturing and assembly facilities, mills, foundries, factories and similar applications.  This line of tube axial duct fans is also available in explosion proof/hazardous location configurations for use in paint shops and chemical processing facilities and similar

·         Features: Non-sparking cast aluminum propellers, all-welded housings, heavy gauge steel construction, industrial grade continuous duty TEFC and TEAO motors available in 115/230V 1 Phase or 208-230/460V 3 Phase, available in an explosion proof/hazardous location configuration

·         This series of tube axial duct fans is available in 12", 15", 18", 24", 27", 30", 34", 36" and 42" configurations

·         Application: Designed for use in dry environments with a maximum temperature of 180ºF.  Economically and efficiently removes fumes, dust and smoke.  Recommended for use in air make-up systems. Hazardous locations when equipped with optional explosion proof motor, harsh dry environments when equipped with optional mill and chemical duty motors and special coatings

·         Fan Type: Duct Fan - Tube Axial - Industrial

·         Blade Diameter: 34"

·         Drive Type: Belt

·         Motor: 1.5 Hp - TEFC

·         Voltage: 230/460V

·         Phase: 3

·         Hertz: 60

·         Speeds: 1

·         CFM: 13,695

·         RPM: 1725

·         Power Cord: N/A - this is a hardwire fan - we recommend you use a licensed and insured electrician to run power to this fan

·         Optional Item: Model PTCF - Companion Flange (please inquire Toll Free at )

·         Optional Item: Model PTHSL - Horizontal Support Legs (please inquire Toll Free at )

·         Optional Item: Model PTHSB - Horizontal Support Bracket (please inquire Toll Free at )

·         Optional Item: Model PTVSB - Vertical Support Bracket (please inquire Toll Free at )

·         Optional Item: Model PTAIG - Air Inlet Guard (please inquire Toll Free at )

·         Optional Item: Model PTAOG - Air Outlet Guard (please inquire Toll Free at )

·         Optional Item: Model PTIMD - Inspection & Maintenance Door (please inquire Toll Free at )

·         Optional Item: Model PTEC - Epoxy Coating (please inquire Toll Free at )

·         Optional Item: Model PTUC - Urethane Coating (please inquire Toll Free at )

·         Optional Item: Model PTHLEP - Hazardous Location/Explosion Proof (please inquire Toll Free at )

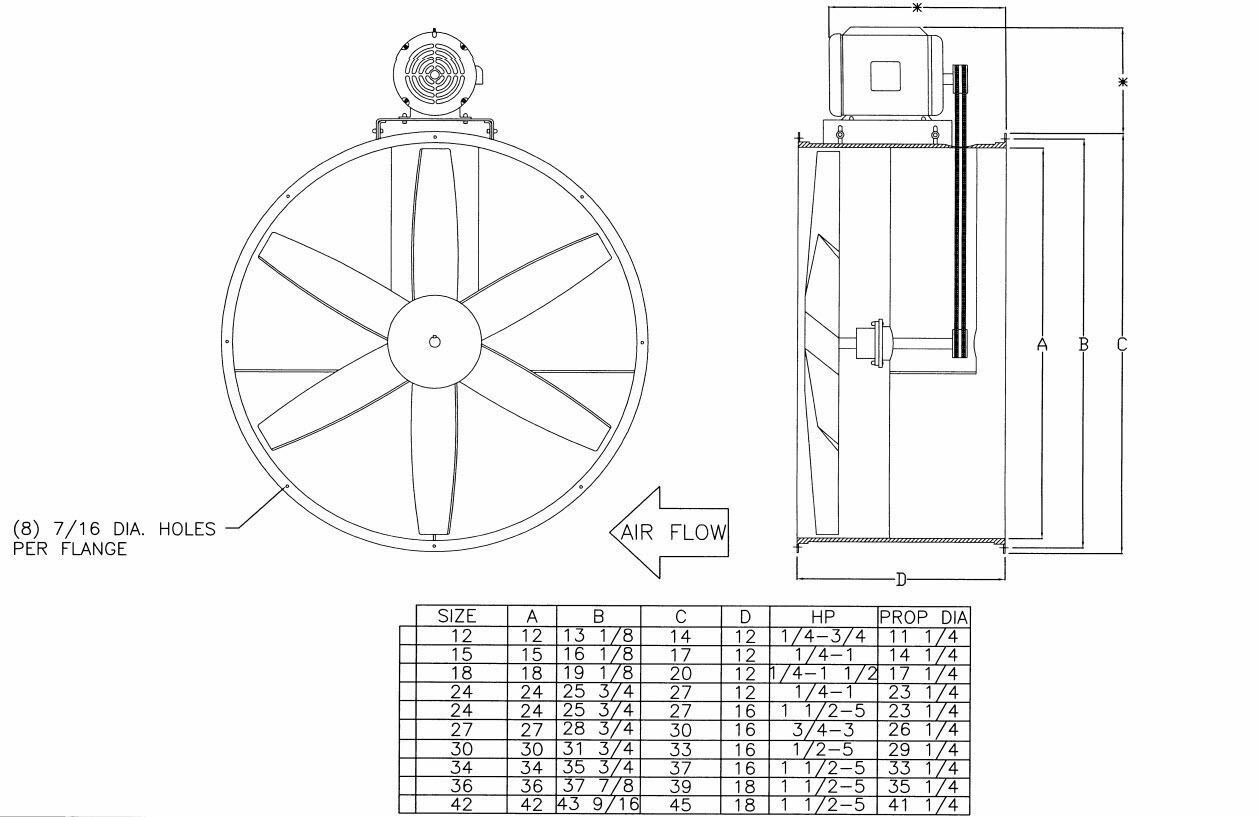

·         Overall Dimensions: 37" H x 37" W x 16" D (overall height includes mounting flange but does not include motor height - motor heights vary by size)

·         Note: We assemble this fan to order, please allow 2 weeks for delivery

·         2 Year Warranty (Includes Parts & Labor)

·         Made in the U.S.A.
