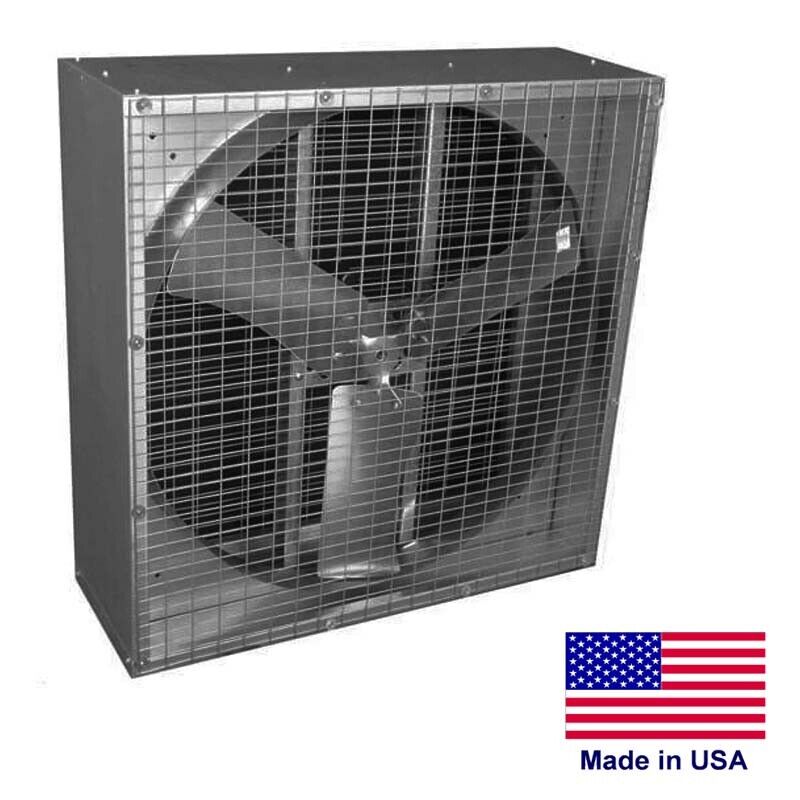

36" AGRICULTURAL EXHAUST FAN - 10,986 CFM - 115/230 Volts - 1 Ph - Direct Drive

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PT36NFD370N

Condition: New

THIS LINE OF AGRICULTURAL EXHAUST FANS IS AVAILABLE WITH THE FOLLOWING CONFIGURATIONS:

Sizes Range: 24" to 60"

Motors Horsepower: 1/2 HP to 5 Hp

Voltages: 115/230V, 1 Phase, & 230/460V, 3 Phase

CFM Ranges from 2,501 to 55,000

We manufacture and offer a wide range of exhaust fans and configurations - please inquire

Description & Specification:

Galvanized components and wire guards ensures longevity

OSHA Compliant guards on front and back of the unit

Eyebolt holes provies hanging options of the cabinet

Includes: Fans and Hanging Bracket

Blade Size (in): 36"

Volts: 115 / 230

Phase: Single

CFM: 10,986

HP: 1/2

Amps: 5.2 / 2.6

Watts: 18.6

dBA: 76

Hertz: 60

Motor Type: Totally Enclosed

Drive: Direct

Speeds: 1

Blades: 3

Blade Type: Galvanized Steel

Cabinet Material: Galvanized Steel

Optional: Galvanized Weather Hood with Birdscreen - Please Inquire

Optional: Water/Moisture Proof Thermostat - Please Inquire

Please Note: This unit is built to order - Please allow 1 to 2 weeks for manufacturing

Rough Opening (in): 40-3/4" x 40-3/4"

Dimensions (in): 40-1/8" x 14" x 40-1/8"

Weight (lbs): 135

Warranty: 1 Year

Made in the USA
