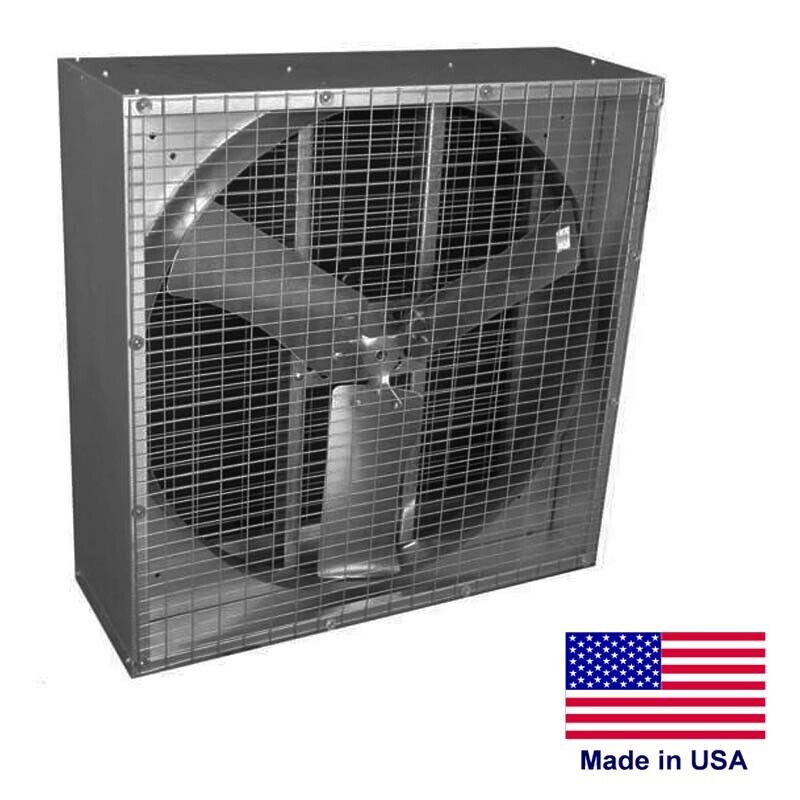

36" AGRICULTURAL EXHAUST FAN - 11,070 CFM - 230/460 Volts - 3 Ph - Direct Drive
36" AGRICULTURAL EXHAUST FAN - 11,070 CFM - 230/460 Volts - 3 Ph - Direct Drive
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT36NFD370TN
Condition: New
Description: 36" AGRICULTURAL EXHAUST FAN - 11,070 CFM - 230/460 Volts - 3 Phase - Direct Drive
THIS LINE OF AGRICULTURAL EXHAUST FANS IS AVAILABLE WITH THE FOLLOWING CONFIGURATIONS:
Sizes Range: 24" to 60"
Motors Horsepower: 1/2 HP to 5 Hp
Voltages: 115/230V, 1 Phase, & 230/460V, 3 Phase
CFM Ranges from 2,501 to 55,000
We manufacture and offer a wide range of exhaust fans and configurations - please inquire
Description & Specification:
Galvanized components and wire guards ensures longevity
OSHA Compliant guards on front and back of the unit
Eyebolt holes provies hanging options of the cabinet
Includes: Fans and Hanging Bracket
Blade Size (in): 36"
Volts: 208-230/460
Phase: Three
CFM: 11,070
HP: 1/2
Amps: 2.6/1.3
Watts: 18.6
dBA: 76
Hertz: 60
Motor Type: Totally Enclosed
Drive: Direct
Speeds: 1
Blades: 3
Blade Type: Galvanized Steel
Cabinet Material: Galvanized Steel
Optional: Galvanized Weather Hood with Birdscreen - Please Inquire
Optional: Water/Moisture Proof Thermostat - Please Inquire
Please Note: This unit is built to order - Please allow 1 to 2 weeks for manufacturing
Rough Opening (in): 40-3/4" x 40-3/4"
Dimensions (in): 40-1/8" x 14" x 40-1/8"
Weight (lbs): 135
Warranty: 1 Year
Made in the USA
