Pacific Tundra

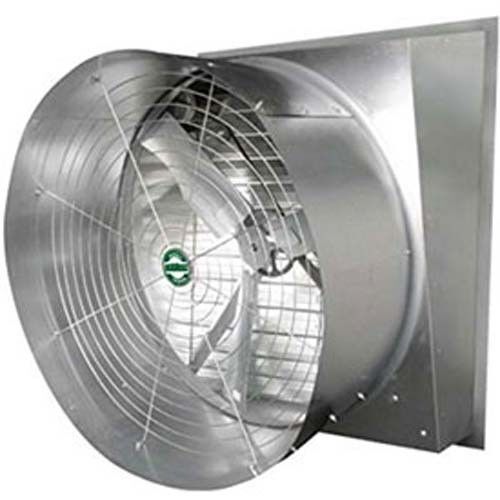

36" Cone Exhaust Fan - Slant Wall - 10,500 CFM - 1/2HP 1Ph - Belt Drive 115/230V
36" Cone Exhaust Fan - Slant Wall - 10,500 CFM - 1/2HP 1Ph - Belt Drive 115/230V
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PTWG968683
Condition: New
Description: 36" Cone Exhaust Fan - Slant Wall - 10,500 CFM - 1/2HP 1Ph - Belt Drive 115/230V
Features: Reduces and eliminates heat build-up in barnes, greenhouses, and industrial/commercial buildings. Housing is constructed of 18 gauge galvanized steel - 12 gauge motor mount - Aluminum shutters are featured on the intake - Tie bars and shutter clips ensure a secure closure - Fan blades are made from galvanized steel and balanced to provide a flawless operation - MADE IN THE USA.
PLEASE
NOTE: This unit is Built to Order
Please allow 2
weeks for manufacturing and shipping
Description & Specification:
Enclosed motor
Sealed ball bearings
Automatic thermal overload protection
Galvanized cone with safety cone guard
Spring belt tensioner
User-friendly installation and operation
AMPS: 6.6/3.3
CFM: 10,500
DRIVE: Belt Driven
FAN DIAMETER INCHES: 36
HORSEPOWER: 1/2
PHASE: 1 (Single)
VOLTS: 115 / 230
DIMENSIONS (Inches): 43" L x 26" W x 43" H
MADE IN THE U.S.A.
