Pacific Tundra

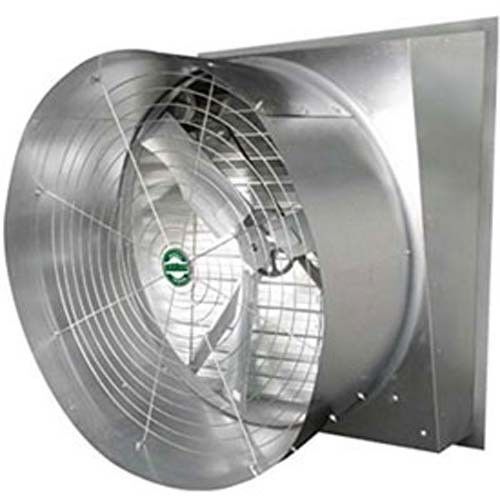

36" Cone Exhaust Fan - Slant Wall - 11,100 CFM 1/2HP 1Ph - Direct Drive 115/230V
36" Cone Exhaust Fan - Slant Wall - 11,100 CFM 1/2HP 1Ph - Direct Drive 115/230V
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PTWG968682
Condition: New
Description: 36" Cone Exhaust Fan - Slant Wall - 11,100 CFM - 1/2HP - 1 Phase - Direct Drive 115/230 Volts
Features: This exhaust fan is perfect for applications that require filtered exhaust air - Works great in small un-ducted paint spray booths - Filters light spray paint, dust, and other small particles - Propellers come standard with spark resistant aluminum - Filter box is removable and comes with a 2" disposable filter - Made in the USA
PLEASE NOTE: This unit is Built
to Order
Please allow 2
weeks for manufacturing and shipping
Description & Specification:
Enclosed motor
Sealed ball bearings
Automatic thermal overload protection
Galvanized cone with safety cone guard
Spring belt tensioner
User-friendly installation and operation
AMPS: 7.0/3.5
CFM: 11,100
DRIVE: Direct
FAN DIAMETER INCHES: 36
HORSEPOWER: 1/2
PHASE: 1 (Single)
VOLTS: 115 / 230
DIMENSIONS (Inches): 43" L x 26" W x 43" H
MADE IN THE U.S.A.
