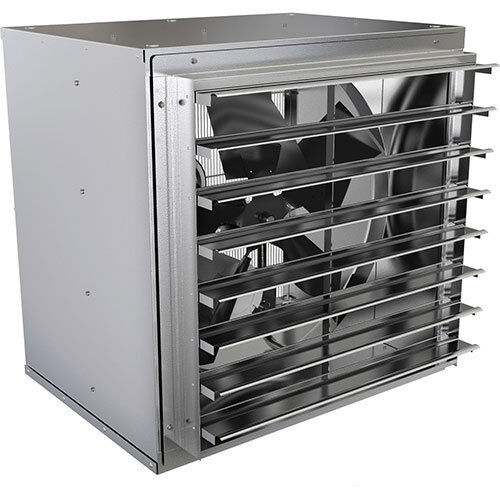

36" EXHAUST FAN - 14,345 CFM - 1 1/2 HP - 230/460 Volt - 3 Phase - Belt Driven
36" EXHAUST FAN - 14,345 CFM - 1 1/2 HP - 230/460 Volt - 3 Phase - Belt Driven
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PTWBB2146298
Condition: New
Description: 36" EXHAUST FAN - 14,345 CFM - 1 1/2 HP - 230/460 Volt - 3 Phase - Belt Driven
Features: Wall mount - Fully assembled - Wall collar - Guard - Damper - Easy installation - Galvanized steel construction - Powdercoated propellers - Belt driven - Designed for light to medium applications - NOT to be used in explosion proof application.
This Series of Wall Mounted Exhaust Fans Fans are Available in the Following Configurations:
Voltages: 115, 230, or 115/230
Flow Ranges: 5,230 CFM to 17,540 CFM
Description & Specification:
BLADE DIAMETER (in): 36"
CERTIFICATIONS: AMCA Air, AMCA Sound, cULus
CFM: 14,345
AMPS: 4.5/2.2
COLOR FINISH: Silver
CONSTRUCTION: Galvanized Steel
DRIVE TYPE: Belt Driven
HERTZ (HZ): 60
HORSEPOWER: 1 1/2
VOLTS: 230/460
PHASE: 3
DIMENSIONS (L x W x H): 40-1/4" L x 40-1/4" W x 34-1/4" H
WEIGHT LBS: 205
