Pacific Tundra

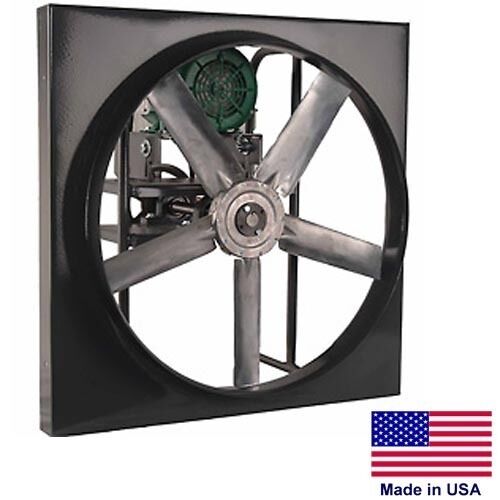

36" Exhaust Fan - Belt Drive - 8,500 CFM - 1/2 HP - 230/460V - 3 Phase - TEFC

36" Exhaust Fan - Belt Drive - 8,500 CFM - 1/2 HP - 230/460V - 3 Phase - TEFC

$7,592.47
$7,592.47
Sale Sold out
start_elivehelp_btncode
end_elivehelp_btncode



FREE SHIPPING OFFER

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number:



PTWBB177829



Condition:



New



Description:


36" Exhaust Fan - Belt Drive - 8,500 CFM - 1/2 HP - 230/460V - 3 Phase - TEFC





 Features:



Primarily used in power plants, parking garages, warehouses, and general ventilation applications - TEFC Motor - 3 phase - Belt Drive - 8,500 CFM





Contact Us:



Email: eBay mail or our customer service email





See similar items in our eBay Store

This series of commercial exhaust fan is available in a variety of specifications.

Please contact us for assistance finding the right fan for your application.


PLEASE NOTE: This unit is built to order and may require 14 to 21 business days for manufacturing and delivery. Please inquire for lead times.


Description & Specification:

COMMERCIAL: Yes

INDUSTRIAL: Yes

CFM HIGH: 8,500

CFM LOW: 1,000

CONSTRUCTION: Steel
DRIVE TYPE: Belt Drive
FAN DIAMETER (in): 36"

HERTZ (HZ): 60
HORSEPOWER (hp): 1/2
IMPELLER CONSTRUCTION: Cast Aluminum
MOTOR ENCLOSURE: Totally Enclosed
PHASE: 3
RPM HIGH: 667
VOLTAGE: 230 / 460

LENGTH (in): 42"
WIDTH (in): 22"

HEIGHT (in): 42"

WEIGHT (lbs): 195

OPTIONAL: Epoxy or polyurethane coatings - PLEASE INQUIRE
OPTIONAL: Gravity shutters - PLEASE INQUIRE
OPTIONAL: Motor operated shutters - PLEASE INQUIRE
OPTIONAL: Bird screen for shutters - PLEASE INQUIRE
OPTIONAL: 304 stainless steel construction - PLEASE INQUIRE
OPTIONAL: 316 stainless steel construction - PLEASE INQUIRE
OPTIONAL: Motor side guard - PLEASE INQUIRE
OPTIONAL: Propeller side guard - PLEASE INQUIRE
OPTIONAL: Mounting boot – interior or exterior mount - PLEASE INQUIRE
OPTIONAL: Special duty motors available - PLEASE INQUIRE
OPTIONAL: Weather hood complete with bird screen - PLEASE INQUIRE
OPTIONAL: Reverse flow construction - PLEASE INQUIRE

WARRANTY: 1 Years
