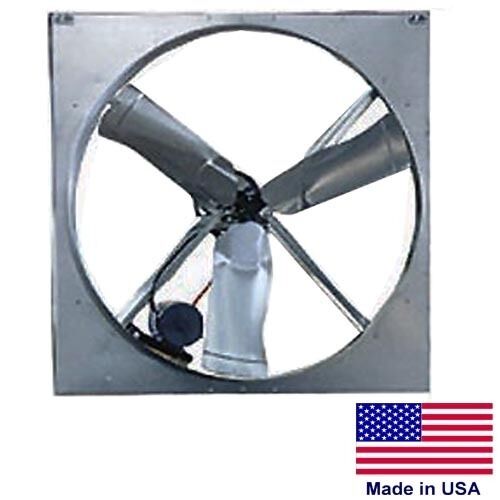

36" Exhaust Fan - Direct Drive - 14,800 CFM - 1/2 HP - 115/230V - 1 Ph - Panel
36" Exhaust Fan - Direct Drive - 14,800 CFM - 1/2 HP - 115/230V - 1 Ph - Panel
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PTWG968648
Condition: New
Description: 36" Exhaust Fan - Direct Drive - 14,800 CFM - 1/2 HP - 115/230V - 1 Ph - Panel
Features: 36" fan diameter - 115/230 Volts - 14,800 CFM - Galvanized 18 gauge steel with cast steel pulleys - Enclosed Motor - Maintenance free motor - Sealed ball bearings - Automatic thermal overload protection - Galvanized steel fan blades - UL Listed - Fully assembled.
This series of commercial exhaust fan is available in a variety of specifications.
Please contact us for assistance finding the right fan for your application.
PLEASE NOTE: This unit is built to order and will require 10 to
14 business days for manufacturing and delivery.
Description & Specification:
Panel Fan
MATERIAL: Galvanized Steel
BLADES: 3
FAN DIAMETER (in): 36"
UL Listed: Yes
AMPS: 7.0/3.5
ASSEMBLY: Assembled
CFM HIGH: 14,800
DRIVE TYPE: Direct
HORSEPOWER: 1/2
PHASE: 1
VOLTAGE: 115 / 230
DEPTH (in): 13 - 7/16"
WIDTH (in): 40 - 5/16"
HEIGHT (in): 40 - 5/16"
Warranty: 2 Years
