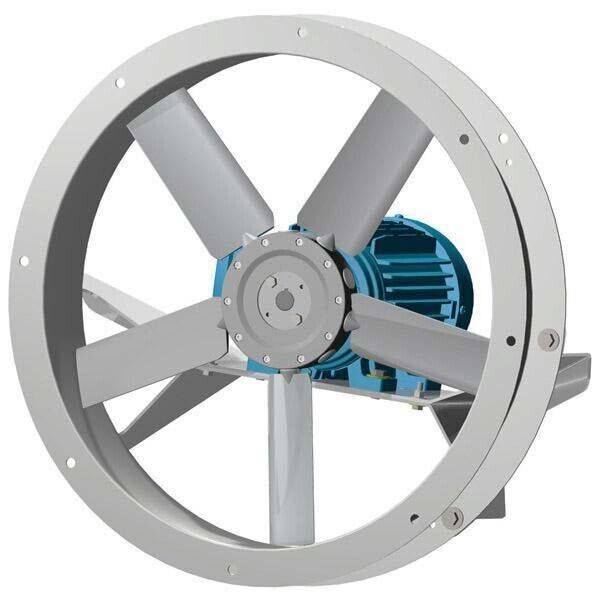

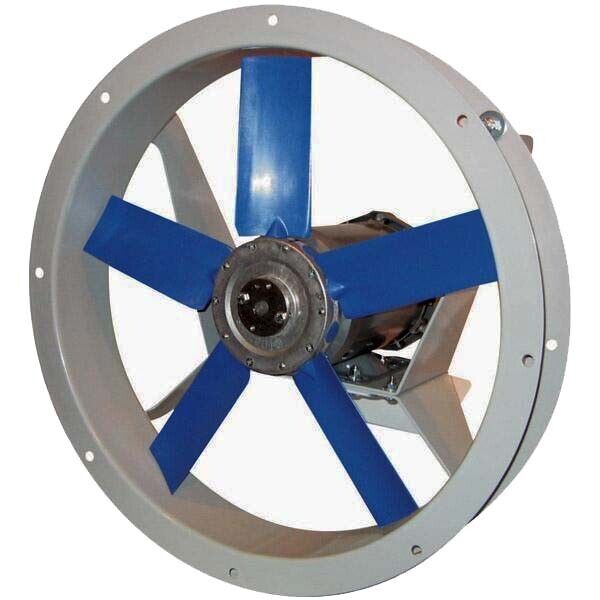

36" Flange Mounted EXHAUST FAN - 27,000 CFM - 230/460 Volt - 3 Ph - 10 HP - TEFC

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PT1026

Condition: New

Description: 36" Flange Mounted EXHAUST FAN - 27,000 CFM - 230/460 Volts - 3 Phase - 10 HP - TEFC

 Please Note: This unit is built to order
Please allow 10 to 15 business days to manufacture and ship

Description & Specification:

Includes: Exhaust Fan

Blade Size (in): 36"

CFM: 27,000

Volts: 230/460

Phase: 3

HP: 10

RPM: 1,750

Hertz: 60

Drive: Direct

Motor Type: TEFC

Decibels: 82 dBA

Blades: 6

Blade Material: Cast Aluminum

Constructed Material: Steel

Optional: GRP (Polypropylene) Impeller - Please Inquire

Optional: Fully-Reversible Design - Please Inquire

Optional: Customized Coating (Please Inquire)

Optional: Mounting Panel (Please Inquire)

Optional: Motor Side Guard (Please Inquire)

Optional: Reverse Flow Construction (Please Inquire)

Optional: Housing Yoke with Mounting Bracket (Please Inquire)

Optional: AMCA Spark Resistant Construction (Please Inquire)

Optional: Explosion Proof Motor (Please Inquire)

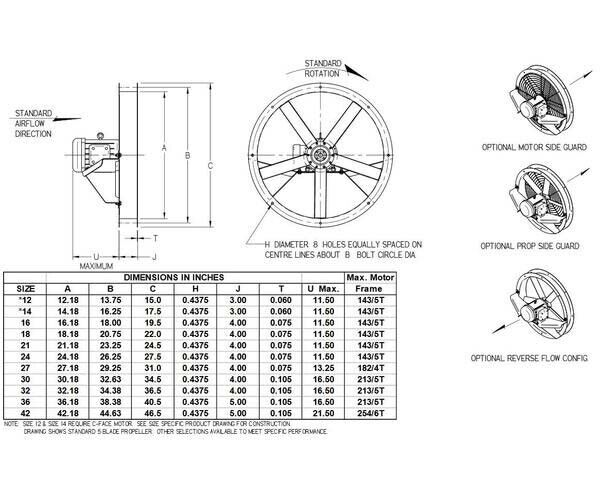

Dimensions (in): 40.5" x 21.5" x 40.5"

Warranty: 1 Year
