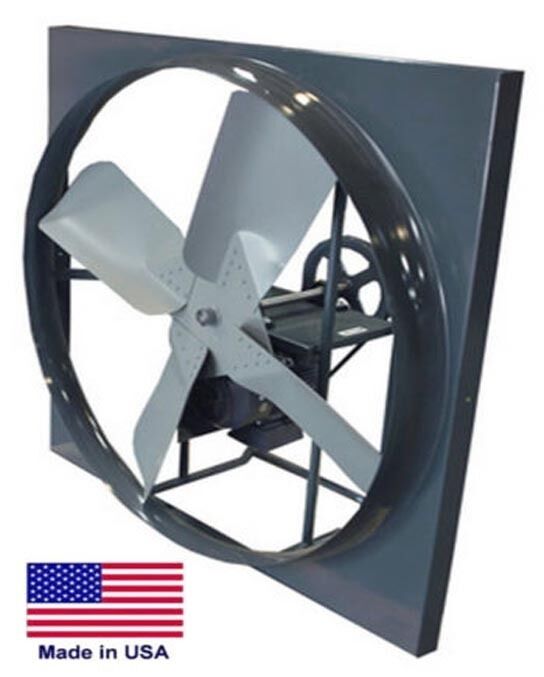

36" PANEL EXHAUST FAN 16,500 CFM - 115/230 Volts - 2 Hp - 1 Phase - Belt Driven

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PT73621

Condition: New

Description: 36" PANEL EXHAUST FAN 16,500 CFM - 115/230 Volts - 2 Hp - 1 Phase - Belt Driven

This Series of Exhaust of Exhaust and Intake Fans are Available in the Following Configurations:

Diameters: 24" to 60"

CFM Range: 5,300 to 39,000

Motor Sizes: 1/3 Hp to 5 Hp

Voltages: 115/230V & 208-230/460V

Phase: 1 & 3

Available Options: Intake Configuration, Mounting Box, Gravity and Electrically Operated Shutters/Louvers, OSHA Compliant Guards, Rain/Weather Hoods and Front & Rear Screens.  This fan can also be built in a explosion proof/hazardous location configuration

We carry a full line of fans, coolers and blowers as well as a full line of accessories and components throughout the year.  We manufacture to order here in the USA

Questions?  Give our Customer Service Department a Call Toll Free at

Description & Specification:

·         Commercial Heavy Duty Belt Driven Panel/Exhaust Fan

·         Our line of USA made commercial panel/exhaust and intake fans are designed for continuous operation and recommended for use in manufacturing and assembly facilities, mills, foundries, mines, workshops and similar applications.  Use for exhausting stale air, fumes, heat, smoke and dust

·         This series of commercial panel/exhaust and intake fans is available in 24", 30", 36", 42", 48" and 60" configurations

·         Features: heavy duty 4-blade fabricated steel propellers/blades, sealed pillow block ball bearings, ships fully assembled, factory tested and ready for field installation, commercial duty industrial grade TEFC motors available in 115/230V 1 Phase or 208-230/460V 3 Phase, belt driven provides quiet operation and long motor life

·         Fan Type: Panel/Exhaust - Commercial

·         Blade Diameter: 36"

·         Drive Type: Belt

·         Motor: 2 Hp - TEFC (Totally Enclosed Fan Cooled)

·         Voltage: 115/230V

·         Phase: 1

·         Hertz: 60

·         Speeds: 1

·         Blades: 4

·         Air Flow: 16,500 CFM

·         Propeller/Blade RPM: 830

·         Motor RPM: 1725

·         Power Cord: N/A - this is a hard wire fan.  We recommend a licensed and insured electrician to run power to this fa

·         Optional Item: Model PTHDBX - Mounting Box - (please inquire Toll Free at

·         Optional Item: Model PTWS - Shutters/Louvers - automatic, gravity operated.  Shutters open when fan is turned on and close when fan is turned off - (please inquire Toll Free at

·         Optional Item: Model PTBG - Rear Fan Guard - protects fan from birds, rodents and debris - (please inquire Toll Free at

·         Optional Item: Model PTIWH - Rain Hood - mounts on above mounting box - protects fan from rain, wind and other nature related events - (please inquire Toll Free at

·         Optional Item: Model PTITF - Intake Fan Configuration - intake fan pulls fresh air from outdoors - (please inquire Toll Free at

·         2 Year Warranty (Includes Parts & Labor)

·         Made in the U.S.A.
