36" Wall Exhaust Fan - 10,000 CFM - 230/460V - 1/2 HP - Direct Drive - Galv Stl
36" Wall Exhaust Fan - 10,000 CFM - 230/460V - 1/2 HP - Direct Drive - Galv Stl
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PTWG245954
Condition: New

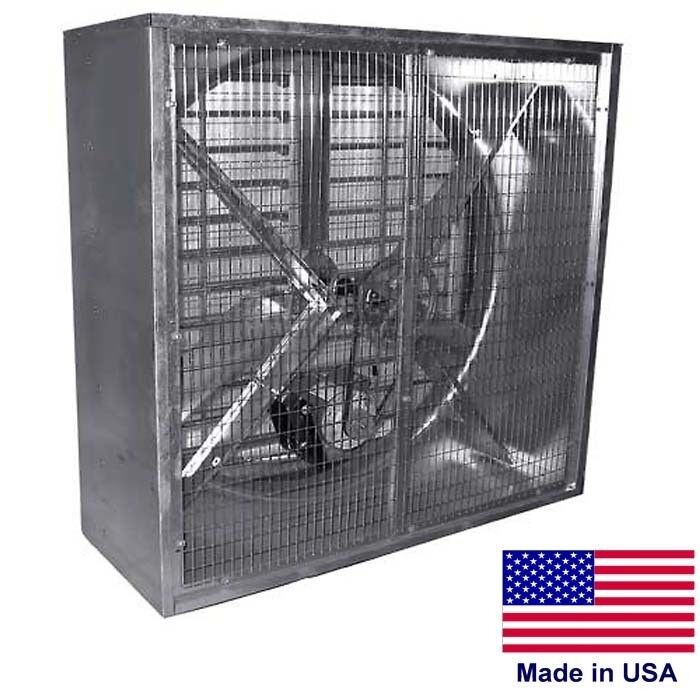

Description: 36" Wall Exhaust Fan - 10,000 CFM - 230/460V - 1/2 HP - Direct Drive - Galvanized Steel

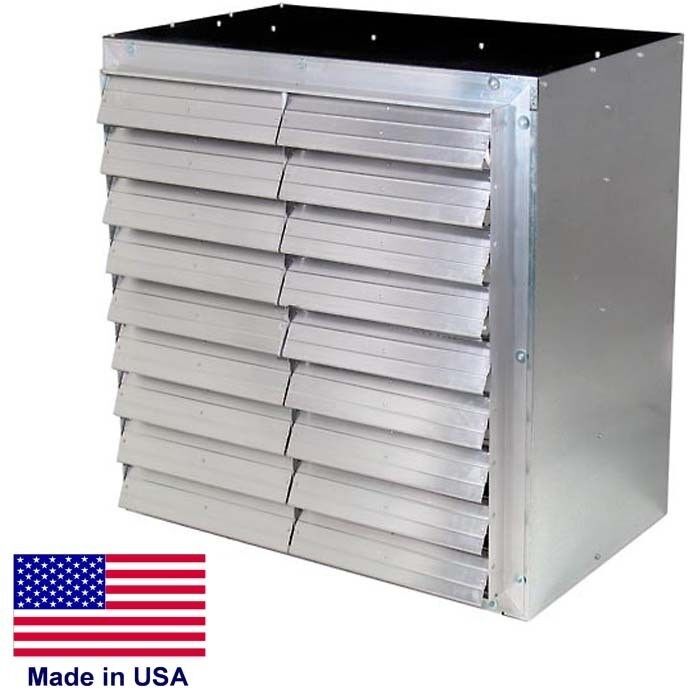

Features: External aluminum shutters - Tie bars - 18 gauge steel housing - Hot dipped after welding - Galvanized 1" x 2" x 12 gauge removable wire mesh guards - Poly guard clips reduce vibration - Totally enclosed motor - Thermal overload protection - Galvanized x-frame motor mount provides a quiet operation - 3 Blades - Made in the USA
This Series of Wall Mounted Exhaust Fans Fans are Available in the Following Configurations:
Voltages: 240V 1 Phase, 115/230V 1 Phase, 115/230V 3 Phase, and 230/460V 3 Phase.
Flow Ranges: 10,100 CFM to 20,900 CFM
Description & Specification:
- FAN DIAMETER (in): 36
- BLADE QUANTITY: 3
- BLADE TYPE: Galvanized
- CFM: 10,000
- MATERIAL: Galvanized Steel
- DRIVE SYSTEM: Direct Drive
- MOTOR TYPE: Totally Enclosed Sealed Ball Bearings
- HP: 1/2
- VOLTS: 230 / 460
- PHASE: 3
- AMPS: 2.4/1.2
- RPM: 825
- DIMENSIONS (L x W x H): 41" x 24.5" x 41"
- APPROVALS: UL and ULC Listed
- EXTENDED WARRANTY: 2 Years
